| GENERAL |

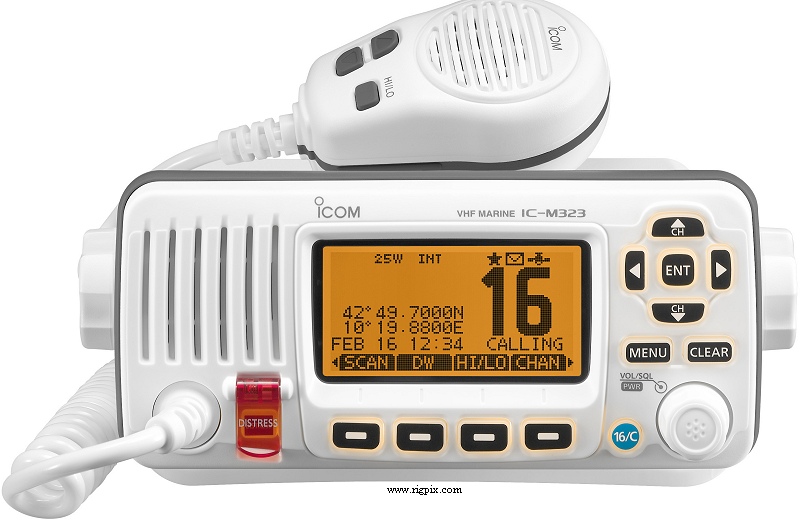

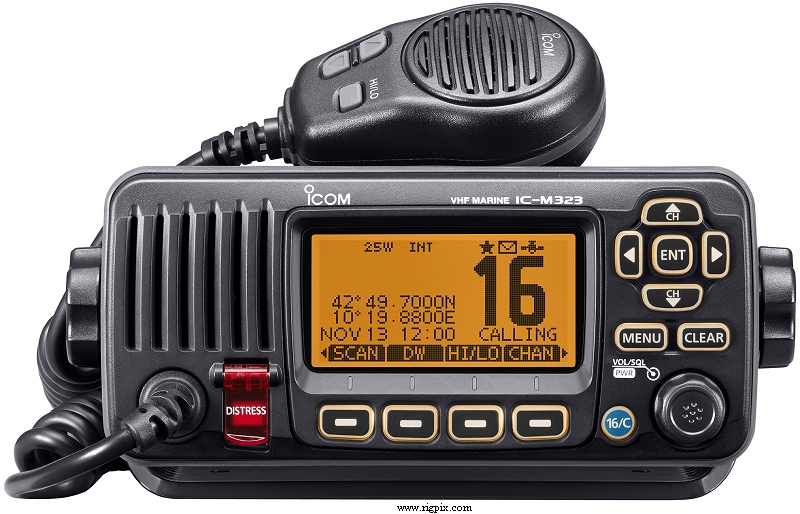

| Type: | Marine VHF transceiver |
| Frequency range: |
TX: 156.000-161.450 MHz
RX: 156.000-163.425 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | ±1.5 KHz @ -20 to +60°C (-4 to +140°F) |
| Mode: | FM |
| Channels / memory management: |
All international, US and canadian channels
1 call
10 NOAA weather channels (US and Australian versions only)
Alpha tags (Ten characters)
|
| Duplex shift / offset: | Automatic according to bandplan |
| Power supply: | 13.8 VDC |
| Current drain / power consumption: | RX: Max 1.5 A
TX: Max 5.5 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 180*82*135 mm (7.1*3.2*5.3") |
| Weight: | 1.2 Kg (2.6 lb) |
| Other features: |
Channel 16 button. DSC. Dual/triwatch. AquaQuake water draining.
Scanning. Attenuator. External GPS. ATIS (European version only).
Dimmer. Weather alert (US and Australian versions only). AIS option.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
|
| Sensitivity: | 0.56 uV (20 dB SINAD) |
| Squelch sensitivity: | Less than 0.8 uV (Threshold) |
| Selectivity: | 70 dB (adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 2 W at 10% distortion / 4 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: 25 W
Low: 1 W
|
| Modulation system: | Variable reactance frequency modulation |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Less than 0.25 uW |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 2014-201x (Discontinued) |
| Additional info: | |
| Related documents: | User manual (5.3 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
MA-500TR
MB-132
|
Class B AIS transponder
Flush mount kit
|
|
