| GENERAL |

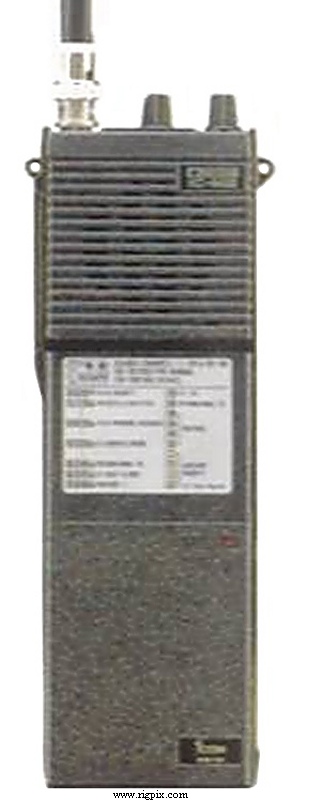

| Type: | Marine VHF transceiver |
| Frequency range: |
TX: 156.025-157.425 MHz
RX: 156.025-162.550 / 160.625-162.550 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | 0.0005% @ -20 to +60°C (-4 to +140°F) |
| Mode: | FM |
| Channels / memory management: |
All US and international channels
4 NOAA weather channels
4 AUX priority channels
|
| Duplex shift / offset: | Automatic according to bandplan |
| Power supply: | 7-10.8 VDC (Battery pack)
or 6-12 VDC external |
| Current drain / power consumption: | RX: 25-130 mA
TX: 700 mA @ 2 W output power |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 65*157*45 mm (2.56*6.18*1.77"), with CM-3 |
| Weight: | 510 g (18 oz), with CM-3 battery pack and antenna |
| Other features: | Channel 16 switch. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.4 uV (12 dB SINAD) |
| Selectivity: | 65 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 300 mW at 10% distortion / 8 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: 2 W (With CM-3) or 5 W (With CM-5)
Low: 400 mW
|
| Modulation system: | Variable reactance frequency modulation |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 198x-198x (Discontinued) |
| Additional info: | |
| Related documents: | User manual (3.5 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
CM-2
CM-3
CM-4
CM-5
CM-25E
CM-25U
|
NiCd battery pack. 7.2 V, 400 mAh
NiCd battery pack. 8.4 V, 250 mAh
Battery case. 6*R6/AA.
NiCd battery pack. 10.8 V, 400 ,Ah
AC adapter/wall charger. 240 VAC (Europe)
AC adapter/wall charger. 117 VAC (USA)
|
|
