| GENERAL |

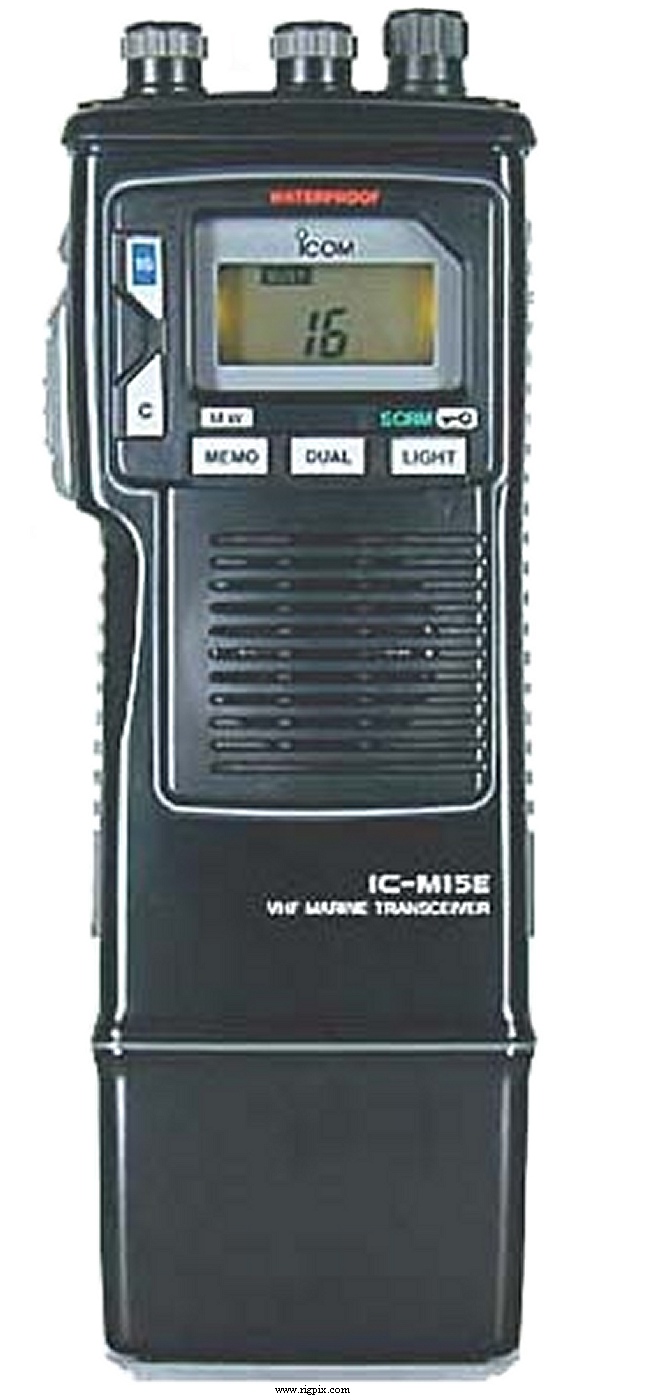

| Type: | Marine VHF transceiver |
| Frequency range: |
TX: 156.025-157.425 MHz
RX: 156.025-162.025 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | 0.0005% @ -20 to +60°C (-4 to +140°F) |
| Mode: | FM |
| Channels / memory management: |
All international and US channels
|
| Duplex shift / offset: | Automatic according to bandplan |
| Power supply: | 7.2 VDC (Battery pack) |
| Current drain / power consumption: | RX: 15-600 mA
TX: Max 1.5-3 A |
| Antenna impedance / connector: | 50 ohm / ? |
| Dimensions (W*H*D): | 62*150*44 mm (2.4*5.9*1.7") |
| Weight: | 460 g (16.2 oz) |
| Other features: | Channel 16 button. Dual/triwatch. Scanning. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
|
| Sensitivity: | 0.35 uV (12 dB SINAD) |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 500 mW at ?% distortion / 8 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: 5 W
Low: 700 mW
|
| Modulation system: | Variable reactance phase modulation |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1994-199x (Discontinued) |
| Additional info: | |
| Related documents: | User manual (1.5 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
AD-43
BM-103
CM-1
CM-138
CM-139
FA-S54V
MB-24
MB-25
UT-79
|
Battery charger adapter
Desktop charger
Cigarette lighter cable
NiCd battery pack. 7.2 V, 900 mAh
NiCd battery pack. 7.2 V, 1200 mAh
Flexible antenna
Mounting bracket (Vehicle hanger type)
Mounting bracket (Wall mounting type)
Voice scrambler unit
|
|
