| GENERAL |
| Type: | Marine VHF transceiver |
| Frequency range: |
TX: 155.000-161.475 MHz
RX: 155.000-166.075 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | ? ppm |
| Mode: | FM |
| Channels / memory management: |
55 International
55 USA
10 NOAA weather channels
20 private
|
| Duplex shift / offset: | Automatic according to bandplan |
| Power supply: | 24 VDC +30%/-10% |
| Current drain / power consumption: | RX: Max 10 W @ 24 VDC
TX: Max 150 W @ 24 VDC |

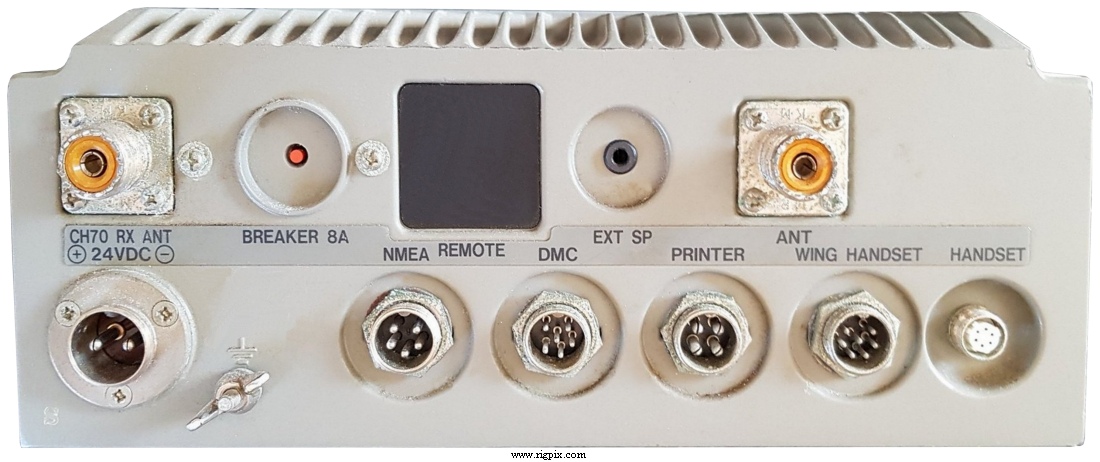

| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 258*108*230 mm (10.2*4.3*9.1") |
| Weight: | 5 Kg (11 lb) |
| Other features: | Channel 16 button. GMDSS compliant. DSC. Dual watch. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 21.4 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.4 uV (12 dB SINAD) |
| Squelch sensitivity: | |
| Selectivity: | 70 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 3 W at ?% distortion / 8 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: 25 W
Low: 1 W
|
| Modulation system: | Reactance |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Less than 0.25 uW |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1995-200x (Discontinued) |
| Additional info: |
FCC ID: ADB9ZWFM8500.
|
| Related documents: | User manual (630 KB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
