| GENERAL |
| Type: | Marine lifeboat emergency HF transmitter-receiver |
| Frequency range: |
TX: 500 KHz and 8.364 MHz
RX: 500 KHz and 8.266-8.745 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | 500 KHz: Better than ±1 KHz @ -15 to +55°C (5 to 131°F) |
| Mode: | TX: MCW
RX: CW / MCW |
| Channels / memory management: |
2 regular
XTAL controlled
|
| Duplex shift / offset: | No |
| Power supply: | 365 and 6.3 V (Built in crank-up generator) |
| Current drain / power consumption: | RX: 25 mA @ 325 V - 1.05 A @ 6.3 V
TX: 55 mA @ 325 V - 750 mA @ 6.3 V |
| Antenna impedance / connector: | ? ohm / ? |
| Dimensions (W*H*D): | 290*350*580 mm (11.42*13.78*22.83") |
| Weight: | 27 Kg (59.52 lb) |
| Other features: | Automatic SOS or manual keying. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Direct conversion (500 KHz)
Single conversion superheterodyne (8 MHz)
IF: 500 KHz
|
| Sensitivity: | |
| Squelch sensitivity: |
500 KHz: Better than 100 uV for 1 mW into 500 ohm headphones
|
| Selectivity: | 20 KHz (-6 dB) |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / 500 ohm (Supplied headphones) |
| External speaker connector: | - |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
Max 4 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | - |
| Microphone input level: | - |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Denmark, 1955-195x (Discontinued) |
| Additional info: |
Tubes.

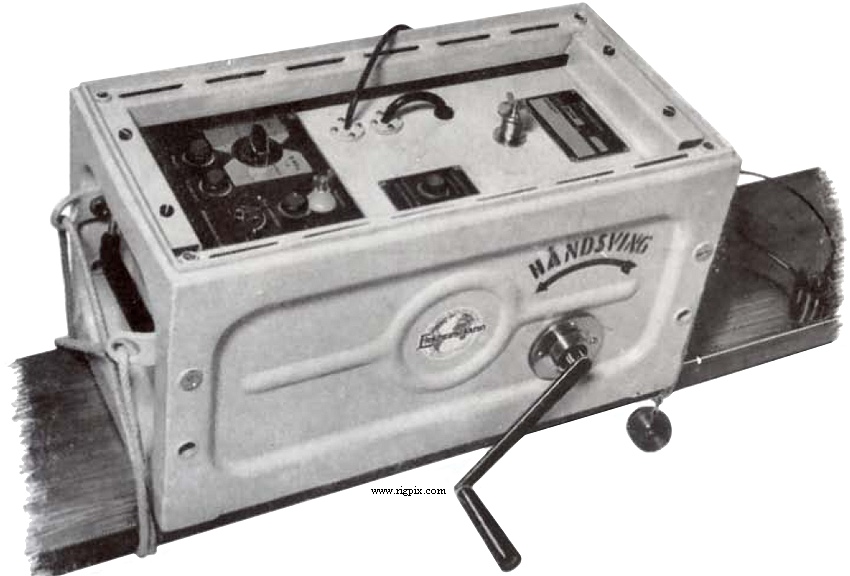

This is basically the same as SM108 KN2 but with
the crank-up generator on the side.
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
