| GENERAL |

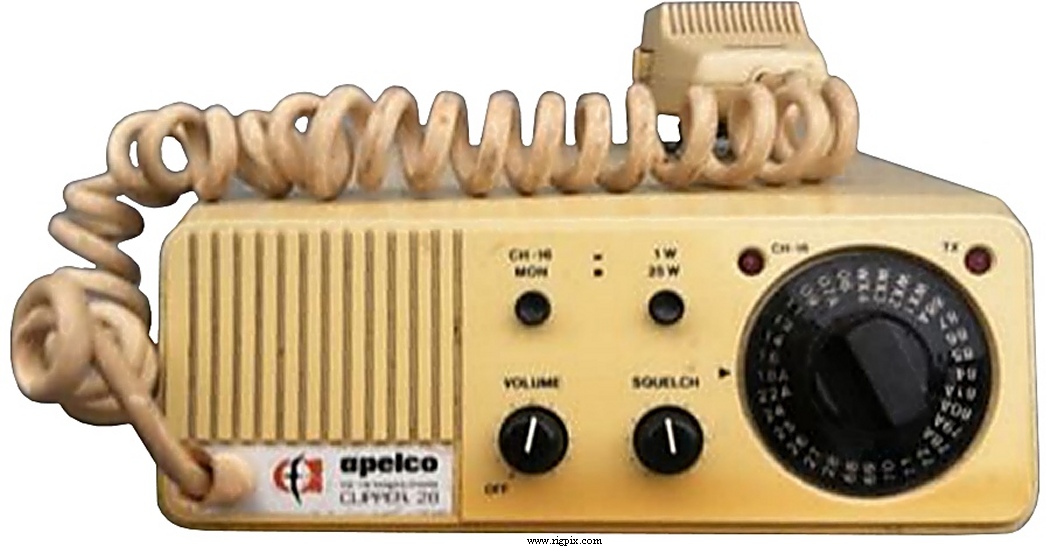

| Type: | Marine VHF transceiver |
| Frequency range: |
TX: 156.300-157.425 MHz
RX: 156.300-162.550 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | ±10 ppm @ -20 to +50°C (-4 to +122°F) |
| Mode: | FM |
| Channels / memory management: |
28 US channels
4 NOAA weather channels
|
| Duplex shift / offset: | Automatic according to bandplan |
| Power supply: | 13.6 VDC ±15% (2-pin male locking ring jack) |
| Current drain / power consumption: | RX: Max 400 mA
TX: Max 5.5 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 240*87*295 mm (9.4*3.4*11.6") |
| Weight: | 3.2 Kg (7 lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 16.9 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.35 uV (12 dB SINAD) |
| Squelch sensitivity: | Less than 0.3 uV (Threshold)
0.5-2.0 uV (Tight) |
| Selectivity: | |
| Image rejection: | 60 dB |
| AF output power / speaker: | 4 W at 10% distortion / 3.2 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: 25 W
Low: 1 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±4.5 KHz |
| Spurious emissions: | Better than -70 dBc |
| Microphone impedance / connector: | ? ohm / Fixed cord |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 19xx-19xx (Discontinued) |
| Additional info: |
FCC ID: ASM9ZA CLIPPER 28
|
| Related documents: | User manual (2.1 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
