Lafayette HE-80

A picture of Lafayette HE-80

SPECIFICATIONS

GENERAL
Type:HF receiver
Frequency range: 0.55-30 / 48-54 MHz in 5 bands
1:   0.55-1.6 MHz
2:   1.6-4.8 MHz
3:   4.8-14.5 MHz
4:   10.5-30 MHz
5:   48-54 MHz
Tuning steps:Analog / continuous
Frequency stability:? ppm
Mode:AM / FM / SSB / CW
Channels / memory management: ? regular
Power supply:Mains: 220 VAC (Fixed power cord)
Current drain / power consumption:65 W
Antenna impedance / connector: HF
50-70 ohm / SO-239
? / Screw terminals
6 m
50-70 ohm / SO-239
Dimensions (W*H*D):432*194*257 mm (17*7.62*10.12")
Weight:10.66 Kg (23.5 lb)
Other features:Bandspread on HF ham bands.




RECEIVER SECTION
Receiver system: Single conversion superheterodyne (Band 1-4)
IF: 455 KHz
Double conversion superheterodyne (Band 5)
1st IF: ? MHz
2nd IF: 455 KHz
Sensitivity:1 uV (10 dB S/N) at 10 MHz
Selectivity:
Image rejection:
AF output power / speaker:1.5 W at ?% distortion / No internal speaker
External speaker connector:8 and 500 ohm




MISCELLANEOUS
Manufactured:Japan (By Trio), 1963-1964 (Discontinued)
Additional info: 14 tubes
New price 1964 in the US: 129.50
New price, early 1965 in the US: 139.50
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
HE-48
HE-81L
External speaker
100 KHz calibrator XTAL

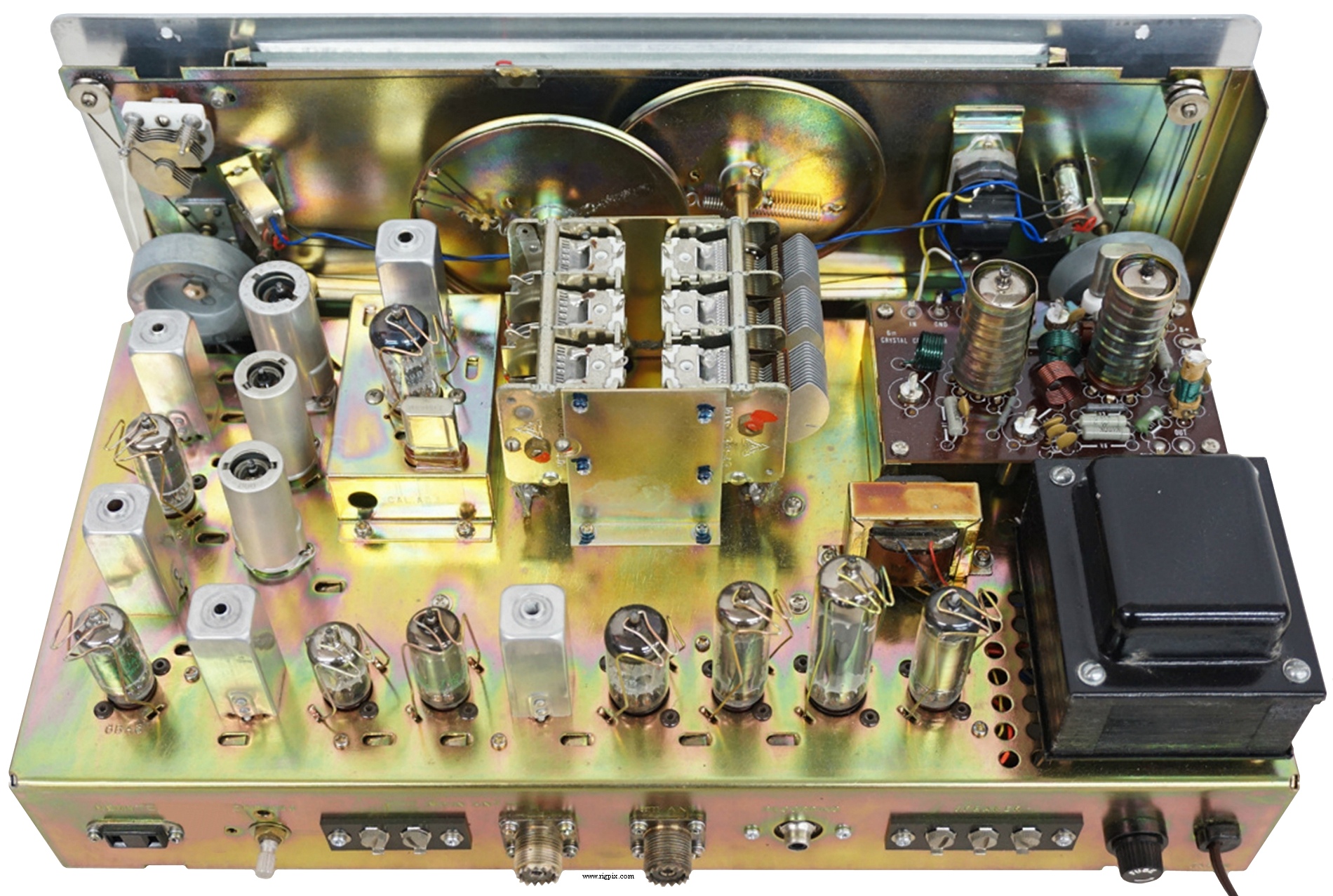

An inside picture of Lafayette HE-80

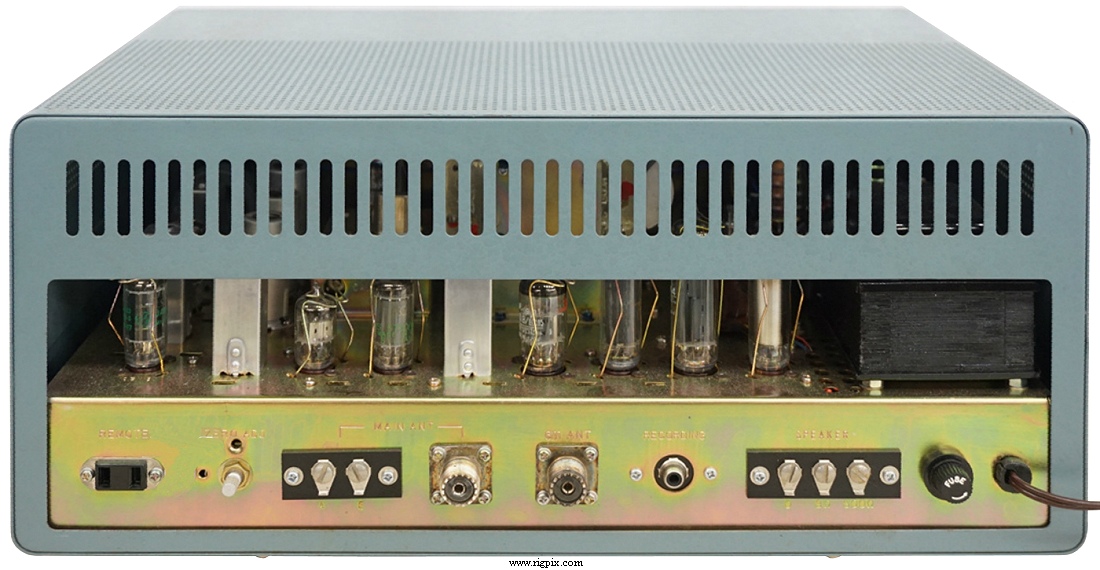

A rear picture of Lafayette HE-80
