| GENERAL |
| Type: | Amateur HF transmitter |
| Frequency range: |
10-80 m in 7 bands
3.5-4.0 MHz
7.0-7.5 MHz
14.0-14.5 MHz
21.0-21.5 MHz
28.0-28.5 MHz
28.5-29.1 MHz
29.1-29.7 MHz
|
| Tuning steps: | Analog / continuous |
| Frequency stability: | ? ppm |
| Mode: | AM / SSB / CW |
| Channels / memory management: | |
| Power supply: | Mains |
| Current drain / power consumption: | Max 350 W |
| Antenna impedance / connector: | 50-75 ohm / SO-239 |
| Dimensions (W*H*D): | 270*140*310 (10.63*5.51*12.2") |
| Weight: | 12.5 Kg (27.56 lb) |
| Other features: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| Pwr |
|---|
| AM: | ~25-50 W (50-80 W input) |
| SSB (PEP): | ~50-100 W (100-160 W input) |
| CW: | ~50-100 W (100-160 W input) |
|
| Modulation system: |
AM: Low power modulation
SSB: Balanced modulation
|
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -40 dB |
| Microphone impedance / connector: | 600 ohm or 50 Kohm (Selectable) / 4-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1971-197x (Discontinued) |
| Additional info: |
JR-599 Custom Special companion.

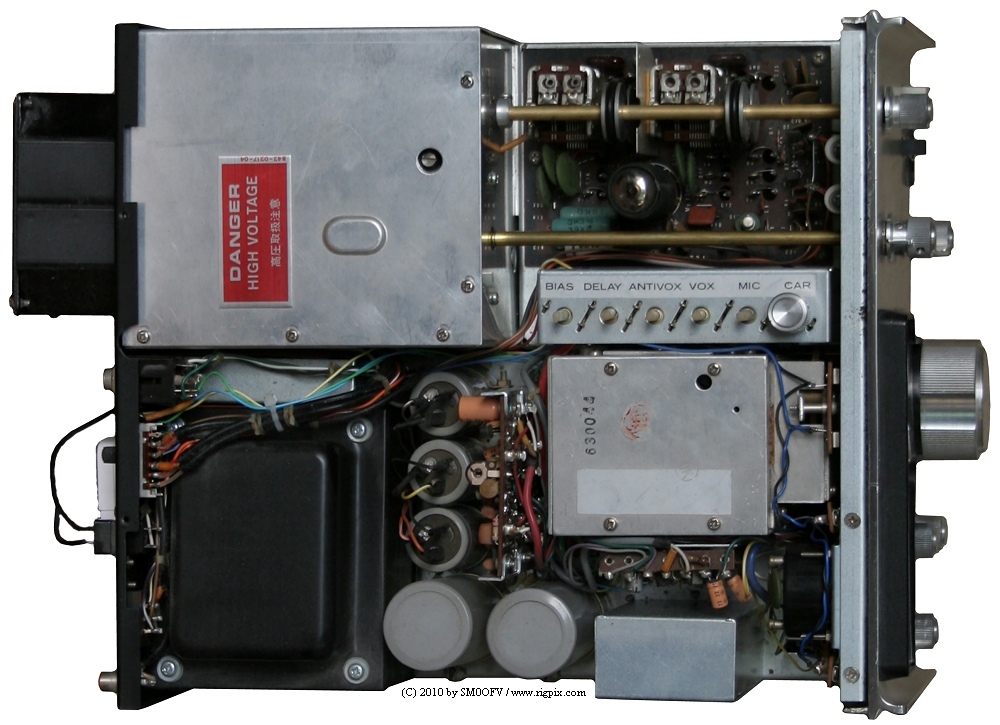

Tube hybrid: 12BY7A driver and two S2001 or 6146B finals
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
