| GENERAL |

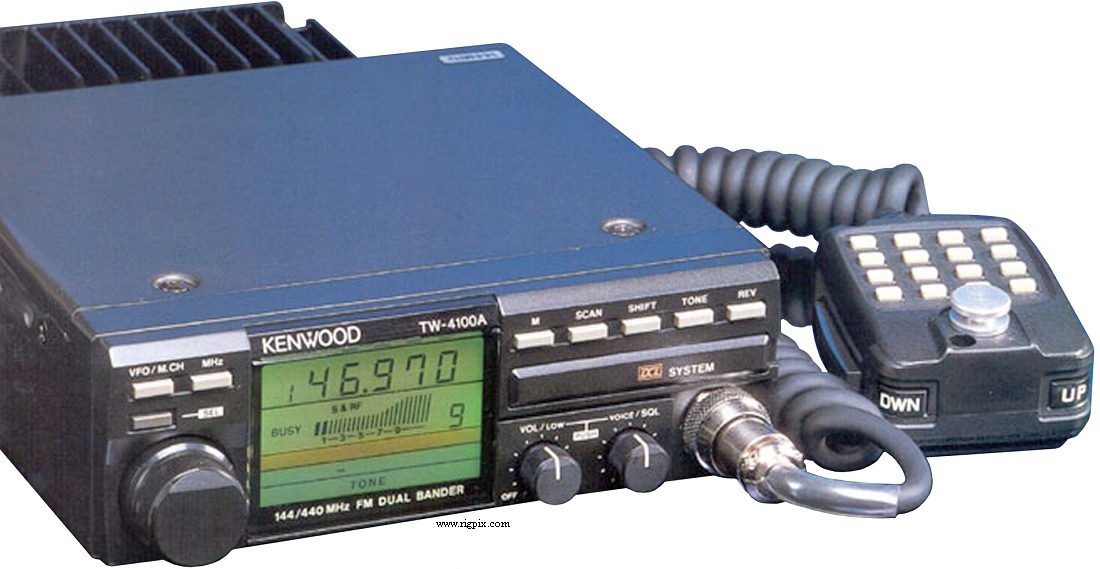

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: |
USA and Canada
TX: 144-148 / 440-450 MHz
RX: 144-148 / 440-450 MHz
Other markets
TX: 142-149 / 430-440 MHz
RX: 142-149 / 430-440 MHz
|
| Tuning steps: | 5 / 10 / 12.5 / 20 / 25 / 50 KHz |
| Frequency stability: | ±15 ppm @ -10 to +50°C (14 to 122°F) |
| Mode: | FM |
| Channels / memory management: |
10 regular (Two of these can store odd splits)
RAM storage with lithium battery backup
|
| Repeater shift / offset: | ±600 KHz, ±1.6, 5 and 7.6 MHz |
| Power supply: | 13.8 VDC ±15% |
| Current drain / power consumption: | RX: 600 mA (No signal)
TX: Max 9.5 A |
| Antenna impedance / connector: | 50 ohm / One SO-239 (2 m) and one N-jack (70 cm) |
| Dimensions (W*H*D): | 150*50*214 mm (5.91*1.97*8.42") |
| Weight: | 1.8 Kg (3.97 lb) |
| Other features: | CTCSS/PL encoder option. DCL. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 30.825 MHz
2nd IF: 455 KHz
|
| Sensitivity: |
2 m: 0.2 uV (12 dB SINAD)
70 cm: 0.16 uV (12 dB SINAD)
|
| Selectivity: | 15 KHz (-6 dB)
30 KHz (-60 dB) |
| Image rejection: | |
| AF output power / speaker: | 2 W at 5% distortion / 8 ohm |
| External speaker connector: | 3.5 mm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Low |
|---|
| 2 m: | 45 W | 5 W |
| 70 cm: | 35 W | 5 W |
|
| Modulation system: | Reactance modulation |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 500-600 ohm / 8-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1987-19xx (Discontinued) |
| Additional info: | |
| Related documents: | User manual (9.2 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
CD-10
MA-4000
MB-11
MC-43S
MC-48B
MC-55
MC-60A
MC-80
MC-85
MU-1
PG-2N
PG-3B
PS-50
PS-430
SP-40
SP-50
SP-430
TU-7
VS-2
|
Callsign display
Dual band mobile antenna, with diplexer
Mobile mount
Dynamic hand microphone with up/down buttons
Hand microphone with up/down buttons and DTMF
Mobile boom microphone
Desk microphone with preamplifier
Omnidirectional electret desk microphone
Unidirectional high-class electret desk microphone
DCL modem unit
DC power cable
DC line noise filter
Power supply. 13.8 VDC, 20 A
Power supply. 13.8 VDC, 10 A (20 A peak)
Mobile speaker. 4 ohm
Mobile speaker. 8 ohm
External speaker. 8 ohm
CTCSS/PL encoder unit
Voice synthesizer unit
|
|
