| GENERAL |

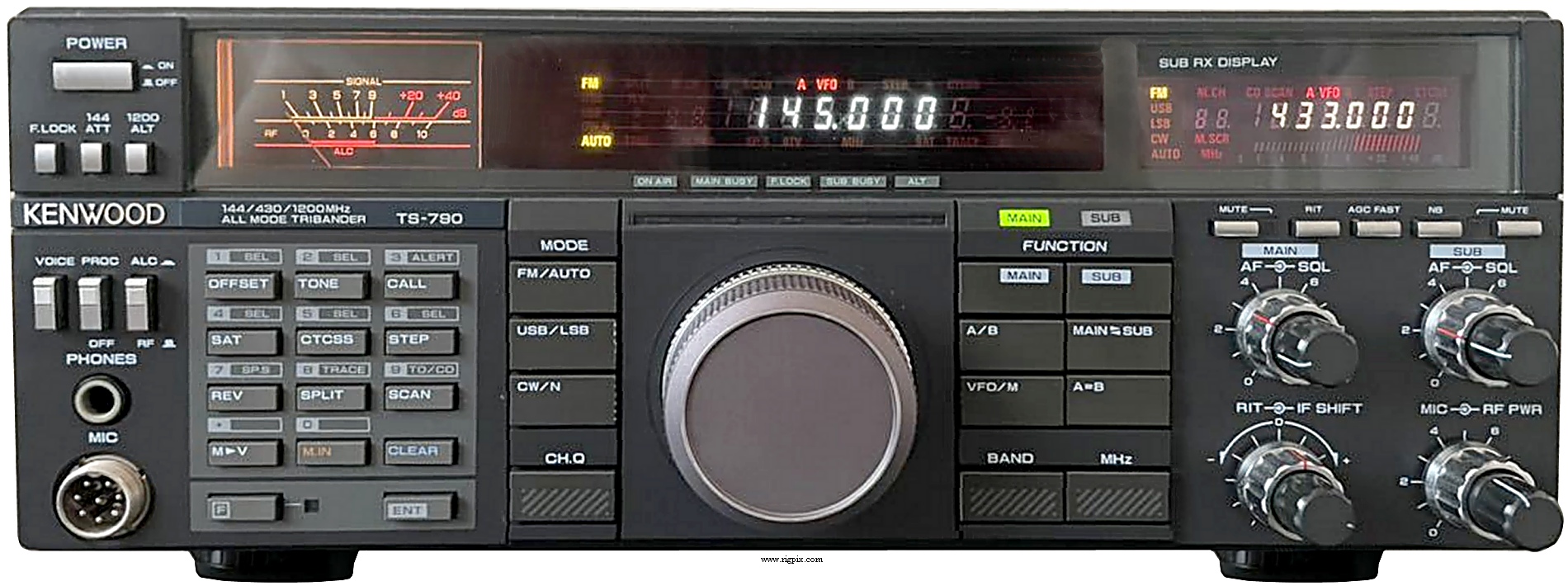

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: |
Japanese domestic market
TX: 144-146 / 430-440 MHz
RX: 144-146 / 430-440 MHz
Band option
23 cm / 10 W
|
| Tuning steps: | 20 / 100 Hz
1 / 5 / 10 / 12.5 / 20 / 25 / 50 KHz |
| Frequency stability: | SSB/CW: Less than ±3 ppm @ -10 to +50°C (14 to 122°F) |
| Mode: | FM / SSB / CW |
| Channels / memory management: |
30 regular
20 split
2 programmed scan (+1 with 23 cm option)
2 alert (+1 with 23 cm option)
2 call (+1 with 23 cm option)
|
| Repeater shift / offset: | ±600 KHz and ±1.6 / 5 / 7.6 / 12 / 20 / 33 / 35 MHz |
| Power supply: | 13.8 VDC ±15% |
| Current drain / power consumption: | RX: 2.5 A (No signal)
TX: Max 5.5 A |
| Antenna impedance / connector: | 50 ohm / Two SO-239 (And one N-jack for the 23 cm option) |
| Dimensions (W*H*D): | 330*110*330 mm (13*4.33*13") |
| Weight: | 8.8 Kg (19.4 lb) |
| Other features: | CTCSS/PL. Speech processor. Twin RX. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: | IF matrix |
| Sensitivity: |
FM: 0.16 uV (12 dB SINAD)
SSB/CW: 0.13 uV (10 dB S+N/N)
|
| Squelch sensitivity: |
Threshold
FM: 0.13 uV
SSB/CW: 0.16 uV
|
| Noise figure: | |
| Selectivity: |
FM
12 KHz (-6 dB)
24 KHz (-60 dB)
SSB
2.1 KHz (-6 dB)
4.8 KHz (-60 dB)
CW
500 Hz (-6 dB)
2 KHz (-50 dB)
|
| Image rejection: |
2 m: 65 dB
70 cm: 60 dB
23 cm: 55 dB (With 23 cm option)
|
| AF output power / speaker: | 1.5 W at 10% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| Pwr | Band unit |
| 2 m FM: | Max 10 W | Built-in |
| 2 m SSB/CW: | Max 10 W | Built-in |
| 70 cm FM: | Max 10 W | Built-in |
| 70 cm SSB/CW: | Max 10 W | Built-in |
|
|
|
| 23 cm: | Max 10 W | UT-10 (Option) |
|
| Modulation system: | FM: Reactance modulation
SSB: Balanced modulation |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | 2 m/70 cm: Better than -60 dB
23 cm: Better than -50 dB (With 23 cm option) |
| Microphone impedance / connector: | 600 ohm / 8-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1988-199x (Discontinued) |
| Additional info: | |
| Related documents: |
RF power module 2 m: M57713
RF power module 70 cm: M57716
RF power module 23 cm: M57762
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
HS-5
HS-6
IF-232C
MC-43S
MC-60/S8
MC-80
MC-85
PG-2S
PS-31
SP-31
UT-10
|
Headphones
Headphones
RS-232C interfacce
Dynamic hand microphone with up/down buttons
Desk microphone
Omnidirectional electret desk microphone
Unidirectional electret high class desk microphone
DC power cable
Power supply. 13.8 VDC, 20 A
External speaker with filter
23 cm band unit
|
|
