| GENERAL |

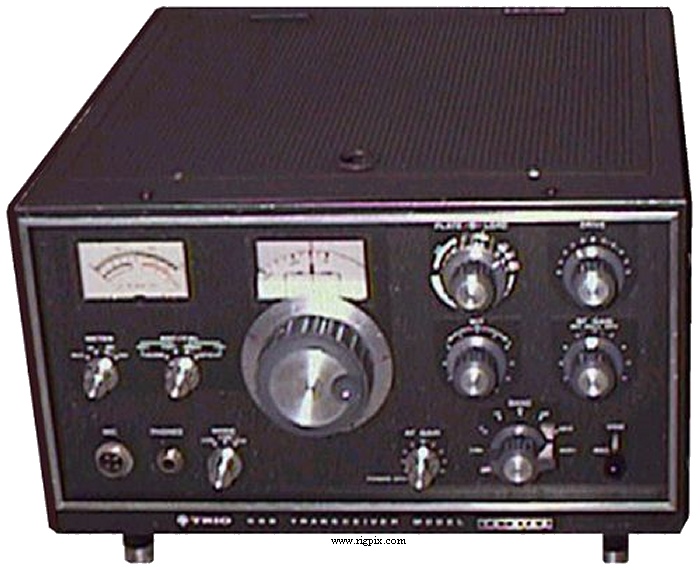

| Type: | Amateur HF transceiver |
| Frequency range: |
10-80 m in 7 bands
| 80 m: | 3.5-4.0 MHz |
| 40 m: | 7.0-7.3 MHz |
| 20 m: | 14.0-14.35 MHz |
| 15 m: | 21.0-21.45 MHz |
| 10 m: | 28.0-28.5 MHz |
| 10 m: | 28.5-29.1 MHz |
| 10 m: | 29.1-29.7 MHz |
|
| Tuning steps: | Analog / continuous |
| Frequency stability: |
Within ±2 KHz during 60 minutes after power on.
Within 100 Hz during any 30 minute period thereafter.
|
| Mode: | SSB / CW |
| Channels / memory management: | None |
| Repeater shift / offset: | No |
| Power supply: | Mains: 230 / 250 VAC (Separate PS-510 PSU) |
| Current drain / power consumption: | RX: ? W
TX: ? W |
| Antenna impedance / connector: | 50-75 ohm / SO-239 |
| Dimensions (W*H*D): | 330*180*345 mm (12.99*7.09*13.58") |
| Weight: | 9.5 Kg (20.94 lb) |
| Other features: | 25 KHz calibrator. VOX. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 8.295-8.895 MHz
2nd IF: 3.395 MHz
|
| Sensitivity: |
15-80 m: better than 0.5 uV (10 dB S/N)
10 m: better than 1.5 uV (10 dB S/N)
|
| Selectivity: |
SSB
2.4 KHz (-6 dB)
4.8 KHz (-60 dB)
CW
500 Hz (-6 dB)
1.5 KHz (-60 dB)
|
| Image rejection: | 50 dB |
| AF output power / speaker: | 1 W at 10% distortion / External only |
| External speaker connector: | Via the 12-pin PSU-connector, 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| 10 m | 15-80 m |
|---|
| SSB (PEP): | ~70 W /120 W input) | ~90 W (160 W input) |
| CW (DC): | ~70 W /120 W input) | ~90 W (160 W input) |
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -50 dB |
| Microphone impedance / connector: | 50 Kohm / 4-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1968-1970 (Discontinued) |
| Additional info: |
Also sold in the US as Allied A-2517
|
| Related documents: |
User manual (7.7 MB)
Service manual (8.8 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
PS-510
VFO-5D
|
Power supply with built-in 8 ohm speaker
External VFO
|
|
