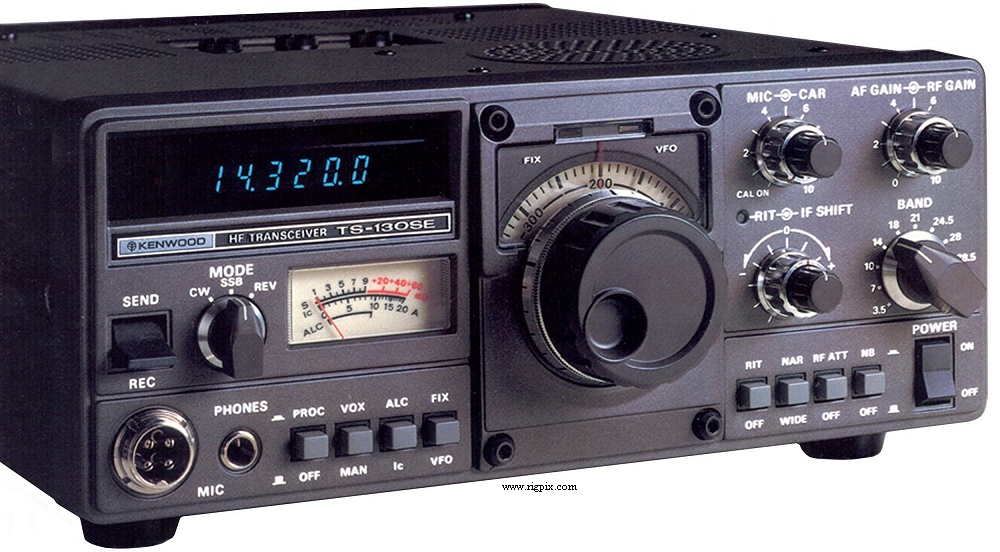

| GENERAL |
| Type: | Amateur HF transceiver |
| Frequency range: |
10-80 m + WARC in 11 bands
3.5-4.0 MHz
7.0-7.3 MHz
10.1-10.15 MHz
14.0-14.35 MHz
18.068-18.168 MHz
21.0-21.45 MHz
24.89-24.99 MHz
28.0-28.5 MHz
28.5-29.0 MHz
29.0-29.5 MHz
29.5-29.7 MHz
|
| Tuning steps: | Analog / continuous |
| Frequency stability: |
Within ±1 KHz during the first hour after power on.
Within 100 Hz during any 30 minute period thereafter.
/td>
|
| Mode: | SSB / CW |
| Channels / memory management: |
1 optional
XTAL controlled
|
| Repeater shift / offset: | No |
| Power supply: | 12-16 VDC |
| Current drain / power consumption: | RX: Max 700 mA
TX: Max 19 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 241*94*293 mm (9.6*3.8*11.7") |
| Weight: | 5.6 Kg (12.4 lb) |
| Other features: | IF Shift. VOX. NB. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 8.83 MHz
|
| Sensitivity: | 0.25 uV (10 dB S+N/N) |
| Selectivity: |
SSB/CW Wide
2.4 KHz (-6 dB)
4.2 KHz (-60 dB)
SSB Narrow (With optional YK-88SN filter)
1.8 KHz (-6 dB)
3.3 KHz (-60 dB)
CW Narrow (With optional YK-88C filter)
500 Hz (-6 dB)
1.5 KHz (-60 dB)
CW Narrow (With optional YK-88CN filter)
270 Hz (-6 dB)
1.1 KHz (-60 dB)
|
| Image rejection: | 50 dB |
| AF output power / speaker: | 1.5 W at ?% distortion / ? ohm |
| External speaker connector: | 3.5 mm, 4-16 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| 10 m | 15-80 m |
|---|
| SSB (PEP): | ~80 W (160 W input) | ~100 W (200 W input) |
| CW (DC): | ~80 W (140 W input) | ~100 W (160 W input) |
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -40 dB |
| Microphone impedance / connector: | 500 ohm to 50 Kohm / 4-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 198x-198x (Discontinued) |
| Additional info: | |
| Related documents: | User manual (39 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
AT-130
DFC-230
FA-4
HC-10
HS-4
HS-5
HS-6
MC-30S
MC-35S
MC-50
MC-60
PS-30
SP-120
VFO-120
YK-88C
YK-88CN
YK-88SN
|
Antenna tuner
Digital frequency controller
Cooling fan unit
World clock
High-performance dynamic headphones
Deluxe headphones
Light weight headphones
Dynamic hand microphone, 50 kohm
Dynamic hand microphone, 500 ohms
Dynamic desk microphone, 50 kohm and 600 ohm switchable
Dynamic desk microphone
Regulated DC power supply, 13.8 VDC, 20 A (50% duty cycle)
External speaker
External VFO
Narrow CW filter, 500 Hz (-6 dB)
Narrow CW filter, 270 Hz (-6 dB)
Narrow SSB filter, 1.8 KHz (-6 dB)
|
|
