| GENERAL |
| Type: | Amateur VHF transceiver |
| Frequency range: |
Europe
TX: 144-146 MHz
RX: 144-146 MHz
USA
TX: 144-148 MHz
RX: 144-148 MHz
|
| Tuning steps: | 5 / 10 / 100 KHz |
| Frequency stability: | Less than ±750 Hz @ 25°C (77°F) |
| Mode: | FM |
| Channels / memory management: |
1 regular
RAM storage (External backup power required)
|
| Repeater shift / offset: | ±600 KHz |
| Power supply: | 11.5-16 VDC (2-pin connector) |
| Current drain / power consumption: | RX: Max 500 mA (No signal)
TX: 3-6 A |

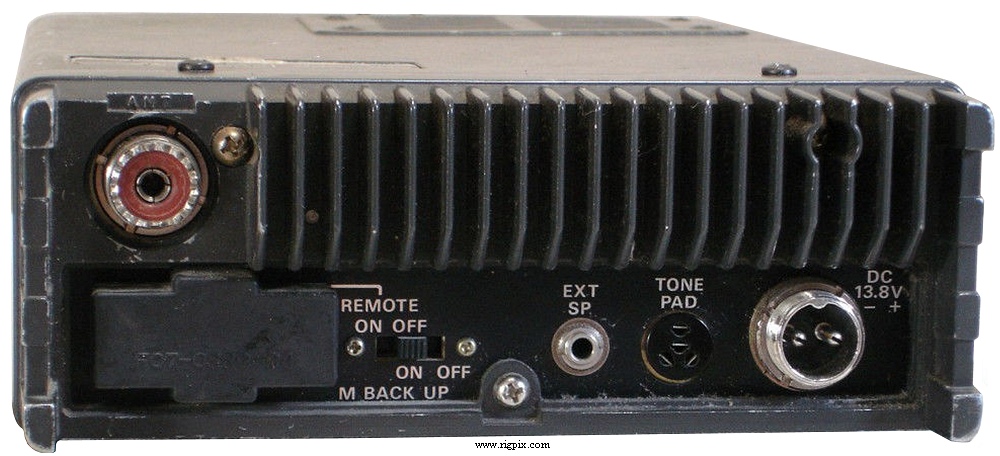

| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 161*61*230 mm (6.34*2.4*9.05") |
| Weight: | 1.75 Kg (3.85 lb) |
| Other features: | 1750 Hz repeater tone (Europe). CTCSS/PL option (USA). |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.7 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.4 uV (20 dB quieting) |
| Selectivity: | 12 KHz (-6 dB) |
| Image rejection: | 70 dB |
| AF output power / speaker: | 1.5 W at 10% distortion / 8 ohm |
| External speaker connector: | 3.5 mm, 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
|
| Modulation system: | Variable reactance direct shift |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 500 ohm / 4-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 197x-197x (Discontinued) |
| Additional info: | |
| Related documents: | User manual (3.8 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
RM-76
|
Remote control unit with 6 memories and scanning
|
|
