| GENERAL |
| Type: | Amateur VHF transceiver |
| Frequency range: |
Europe
TX: 144-146 MHz
RX: 144-146 MHz
|
| Tuning steps: | FM: 5 / 12.5 KHz
SSB/CW: 50 Hz, 1 / 5 KHz |
| Frequency stability: | ±15 ppm @ -20 to +60°C (-4 to +140°F) |
| Mode: | FM / SSB / CW |
| Channels / memory management: |
10 regular
2 odd split
1 priority
RAM storage with lithium battery backup
|
| Repeater shift / offset: | ±600 KHz |
| Power supply: | 13.8 VDC ±15% |
| Current drain / power consumption: | RX: Max 1 A
TX: Max 6 A |

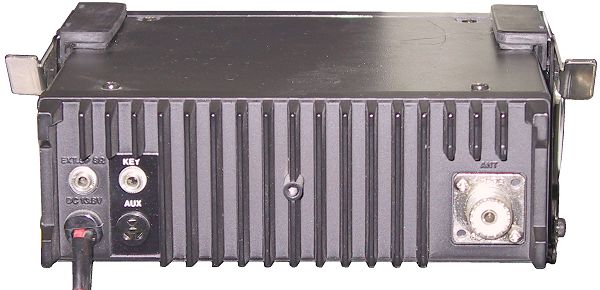

| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 180*60*195 mm (7.09*2.36*7.68") |
| Weight: | 2.2 Kg (4.8 lb) |
| Other features: | NB. 1750 Hz tone call. DCL option. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne (SSB/CW)
IF: 10.695 MHz
Double conversion superheterodyne (FM)
1st IF: 10.695 MHz
2nd IF: 455 KHz (FM)
|
| Sensitivity: |
SSB/CW: Better than 0.13 uV (10 dB S+N/N)
FM: Better than 0.2 uV (12 dB SINAD)
|
| Selectivity: |
FM
12 KHz (-6 dB)
24 KHz (-60 dB)
SSB/CW
2.2 KHz (-6 dB)
4.8 KHz (-60 dB)
|
| Image rejection: | Better than 70 dB |
| AF output power / speaker: | 2 W at 5% distortion / 8 ohm |
| External speaker connector: | 3.5 mm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
NB! The low setting is internally adjustable from ~2 to 25 W
|
| Modulation system: |
FM: Reactance modulation
SSB: Balanced modulation
|
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 500-600 ohm / 8-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1986-19xx (Discontinued) |
| Additional info: | |
| Related documents: |
User manual (4.9 MB)
Service manual (33.1 MB)
RF power amplifier: M57727
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
AC-10
CD-10
HS-4
HS-5
HS-6
HS-7
MB-10
MC-42S
MC-48B
MC-55
MC-60A
MC-80
MC-85
MU-1
PG-2N
PG-3B
PS-50
PS-430
SP-40
SP-50
SP-430
SWT-1
SW-100A
SW-100B
SW-200A
SW-200B
VS-1
|
AC adapter for CD-10
Callsign display
Communication headphones, 8 ohm
Communication headphones, light-weight open-air, 8 ohm
Communication headphones, deluxe light-weight, 12.5 ohm
Micro headphones, 16 ohm
Mobile mounting bracket
Dynamic hand microphone with up/down buttons
Hand microphone with DTMF pad and up/down buttons
Mobile microphone with up/down buttons, gain control and timing circuit
Desk microphone with up/down buttons and switchable impedance
Desk microphone (electret) with up/down buttons
Desk microphone (high-class electret) with low cut filter and level meter
DCL modem unit
DC power cable
DC line noise filter
Heavy duty DC power supply
DC power supply
Compact mobile speaker, 4 ohm
Mobile speaker, 8 ohm
External speaker
Antenna tuning unit, 2 m band
SWR/Power meter, 1.8-150 MHz
SWR/Power meter, 140-450 MHz
SWR/Power peak/RMS meter, 1.8-150 MHz
SWR/Power peak/RMS meter, 140-450 MHz
Voice synthesizer unit
|
|
