| GENERAL |
| Type: | Amateur VHF/UHF transceiver |
| Frequency range: |
Europe
TX: 144-146 / 430-440 MHz
RX: 108-524 MHz
|
| Tuning steps: | 5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 KHz |
| Frequency stability: | ±2 ppm @ -20 to +60°C (-4 to +140°F) |
| Mode: | TX: FM / NFM / DV (D-Star)
RX: AM / FM / NFM / DV (D-Star) |
| Channels / memory management: |
1000 regular with alpha tags
Non volatile EEPROM storage
|
| Repeater shift / offset: | Programmable |
| Power supply: | 11.7-15.9 VDC |
| Current drain / power consumption: | RX: Max 1.2 A
TX: Max 13 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): |

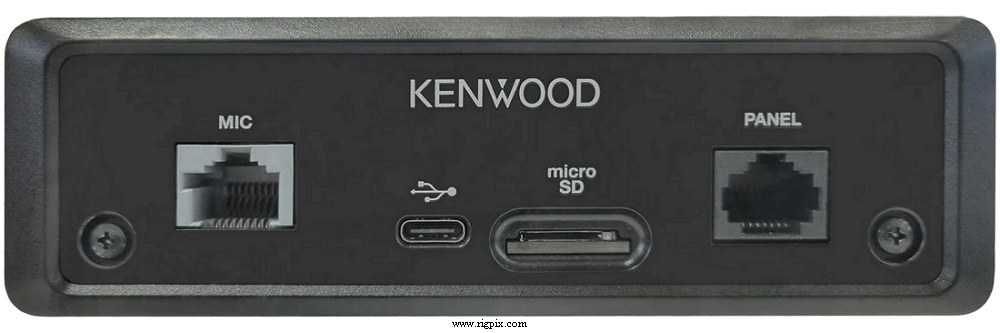

Main unit: 140*43*180 mm (5.51*1.69*7.09")

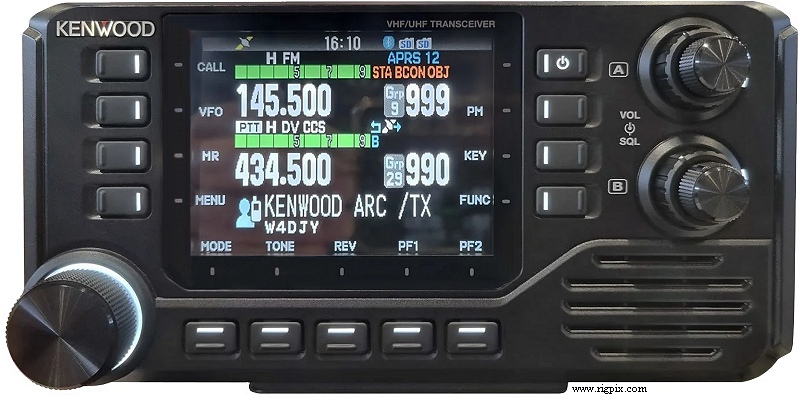

Panel: 183*93*37 mm (7.2*3.66*1.46")
|
| Weight: |
Main unit: 1.3 Kg (2.87 lb)
Panel: 344 g (12.1 oz)
|
| Other features: |
Built-in 1200/9600 bd KISS TNC with APRS. 3.45" color TFT. WLAN. Bluetooth. USB-C. Extensive
voice guidance. Micro-SD card slot. D-Star reflector and repeater terminal mode. Crossband repeater.
1750 Hz repeater tone. CTCSS/PL and DCS with tone scan. VOX. GPS. Twin RX.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne (FM/DV)
1st IF: 57.15 MHz (Band A) - 58.05 MHz (Band B)
2nd IF: 450 KHz
Triple conversion superheterodyne (AM)
1st IF: 57.15 MHz (Band A) - 58.05 MHz (Band B)
2nd IF: 450 KHz
3rd IF: 10.8 KHz
|
| Sensitivity: |
145/430 MHz FM: 0.16 uV (12 dB SINAD)
145/430 MHz NFM: 0.2 uV (12 dB SINAD)
145/430 MHz DV: 0.22 uV (4.8 kbps, BER 1%)
| Frequency range | Band A: | Band A: | Band B: |
|---|
| except 145/430 MHz: | FM: 12 dB SINAD | AM: 10 dB S/N | FM: 12 dB SINAD |
|---|
| 118-174 MHz | 0.32 uV | 0.4 uV | 0.32 uV |
| 200-222 MHz | - | 0.5 uV | 0.4 uV |
| 225-250 MHz | - | 0.5 uV | 0.4 uV |
| 380-400 MHz | - | - | 0.56 uV |
| 400-430 MHz | 0.28 uV | 0.4 uV | 0.28 uV |
| 440-490 MHz | 0.28 uV | 0.4 uV | 0.28 uV |
| 490-524 MHz | - | - | 0.56 uV |
|
| Squelch sensitivity: | 0.1 uV (Threshold, typical) |
| Noise figure: | |
| Selectivity: |
FM:
12 KHz (-6 dB)
30 KHz (-50 dB)
|
| Image rejection: | >60 dB |
| AF output power / speaker: | 3 W at ?% distortion / 8 ohm |
| External speaker connector: | Two TS "Minijacks" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Mid | Low |
|---|
| 2 m: | 50 W | 10 W | 5 W |
| 70 cm: | 50 W | 10 W | 5 W |
|
| Modulation system: | FM: Reactance modulation
DV: GMSK reactance modulation |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -60c dB |
| Microphone impedance / connector: | 600 ohm / 8-pin (Modular) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 2025-20xx |
| Additional info: | |
| Related documents: |
User manual R1 (3.3 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
