| GENERAL |

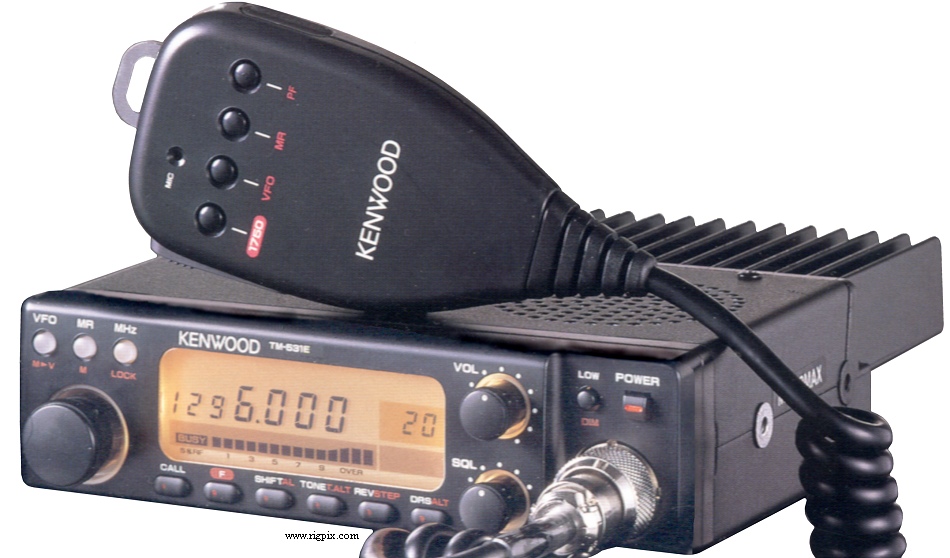

| Type: | Amateur UHF transceiver |
| Frequency range: |
Europe
TX: 1240-1300 MHz
RX: 1240-1300 MHz
|
| Tuning steps: | 10 / 12.5 / 20 / 25 KHz |
| Frequency stability: | ±3 ppm @ -20 to +60°C (-4 to +140°F) |
| Mode: | FM |
| Channels / memory management: |
20 regular
1 call
4 odd splits
1 priority
1 program scan pair
RAM storage with lithium battery backup
|
| Repeater shift / offset: | +35 and -6 MHz |
| Power supply: | 13.8 VDC ±15% |
| Current drain / power consumption: | RX: 600 mA (No signal)
TX: Max 5.5 A |
| Antenna impedance / connector: | 50 ohm / N-jack (On pigtail) |
| Dimensions (W*H*D): | 140*40*160 mm (5.51*1.58*6.3") |
| Weight: | 1.2 Kg (2.65 lb) |
| Other features: | CTCSS/PL encoder. ALT (AFC). |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 59.7 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.16 uV (12 dB SINAD) |
| Selectivity: | 12 KHz (-6 dB)
36 KHz (-60 dB) |
| Image rejection: | |
| AF output power / speaker: | 2 W at 5% distortion / 8 ohm |
| External speaker connector: | 3.5 mm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
|
| Modulation system: | Reactance modulation |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -50 dB |
| Microphone impedance / connector: | 500-600 ohm / 8-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 1990-19xx (Discontinued) |
| Additional info: | |
| Related documents: | User manual (1.4 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
DRU-1
IF-20
MB-201
MC-44
MC-44DM
MC-44DME
MC-44E
MC-55
MC-60A
MC-80
MC-85
PG-2N
PG-3B
PG-4H
PG-4J
PS-50
PS-430
RC-10
RC-20
SP-41
SP-50B
SP-430
TSU-6
|
Digital recording unit
Interface unit
Mobile mounting bracket
Multifunction microphone
Multifunction microphone with autopatch
Multifunction microphone with autopatch (Europe)
Multifunction microphone (Europe)
Mobile microphone
Desk microphone with up/down buttons
Omnidirectional desk microphone with up/down buttons
Unidirectional desk microphone with up/down buttons
DC power cable
DC line noise filter
Interface connecting cable
Extension cable kit
Power supply. 13.8 VDC, 20 A
Power supply. 13.8 VDC, 10 A (20 A peak)
Remote controller / handset
Remote controller / panel
Mobile speaker. 4 ohm
Mobile speaker. 8 ohm
External speaker
CTCSS/PL decoder unit
|
|
