| GENERAL |

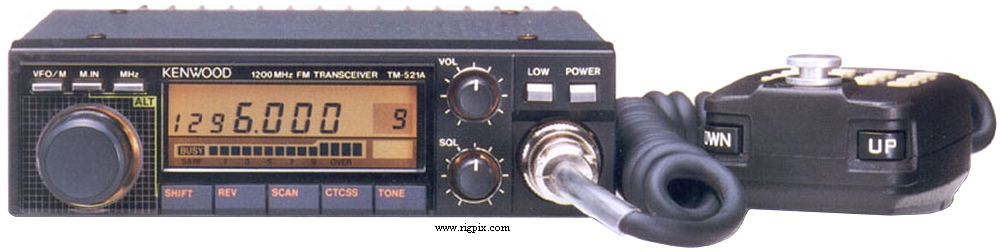

| Type: | Amateur UHF transceiver |
| Frequency range: |
USA
TX: 1240-1300 MHz
RX: 1240-1300 MHz
|
| Tuning steps: | 10 / 12.5 / 20 / 25 KHz |
| Frequency stability: | ±3 ppm @ -20 to +60°C (-4 to +140°F) |
| Mode: | FM |
| Channels / memory management: |
10 regular
2 band edge search limits
2 odd repeater split
RAM storage with lithium battery backup
|
| Repeater shift / offset: | ±12 MHz |
| Power supply: | 13.8 VDC ±15% |
| Current drain / power consumption: | RX: 600 mA (No signal)
TX: Max 5.5 A |
| Antenna impedance / connector: | 50 ohm / M-jack (SO-239) on pigtail |
| Dimensions (W*H*D): | 141*42*193 mm (5.55*1.65*7.6") |
| Weight: | 1.2 Kg (2.65 lb) |
| Other features: | CTCSS/PL encoder. ALT. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 59.7 MHz
2nd IF: 455 KHz - Ceramic filter: Murata CFW455E
|
| Sensitivity: | 0.16 uV (12 dB SINAD) |
| Selectivity: | 12 KHz (-6 dB)
36 KHz (-60 dB) |
| Image rejection: | |
| AF output power/speaker: | 2 W at 5% distortion / 8 ohm |
| External speaker connector: | 3.5 mm, 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
|
| Modulation system: | Reactance |
| Max FM deviation: | ±5 KHz |
| Spurious emissions: | Better than -50 dB |
| Microphone impedance / connector: | 500-600 / 8-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1988-1990 (Discontinued) |
| Additional info: | |
| Related documents: |
User manual (5.4 MB)
Service manual (5.1 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
HS-7
MB-201
MC-43S
MC-48B
MC-55
MC-60A
MC-80
MC-85
PG-2N
PG-3B
PG-4G
PS-50
PS-430
RC-10
SP-40
SP-50B
SP-430
TSU-5
|
Micro headphones, 16 ohm
Mobile mount
Hand microphone with up/down buttons
Hand microphone with up/down and DTMF
Mobile microphone with up/down buttons
Desk microphone with up/down and lock buttons
Desk microphone with up/down and lock buttons
High class electret desk microphone
DC power cable
DC line noise filter
Heavy duty DC power supply
Extension cord for RC-10
DC power supply
Remote controller with DTMF/autopatch
Compact mobile speaker, 4 ohm
Mobile speaker, 8 ohm
External speaker
CTCSS/PL decoder unit
|
|
