| GENERAL |

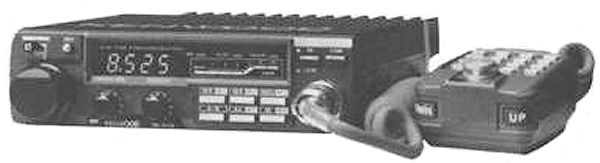

| Type: | Amateur UHF transceiver |
| Frequency range: |
Europe
TX: 430-440 MHz
RX: 430-440 MHz
USA
TX: 440-450 MHz
RX: 440-450 MHz
|
| Tuning steps: | 25 KHz |
| Frequency stability: | ±15 ppm @ -20 to +50°C (-4 to +122°F) |
| Mode: | FM |
| Channels / memory management: |
5 regular
1 com
RAM storage with lithium backup battery
|
| Repeater shift / offset: |
Europe: -1.6 and -7.6 MHz
England: ±1.6 MHz
USA: ±5 MHz
|
| Power supply: | 13.8 VDC ±15% |
| Current drain / power consumption: | RX: 500 mA (Squelched)
TX: 1.6 to 3.8 A |
| Antenna impedance / connector: | 50 ohm / SO-239 (On pigtail) |
| Dimensions (W*H*D): | 141*39*183 mm (5.55*1.54*7.2") |
| Weight: | 1.25 Kg (2.76 lb) |
| Other features: | 1750 Hz repeater tone (Europe). |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 21.6 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.2 uV (12 dB SINAD) |
| Selectivity: | 12 KHz (-6 dB)
24 KHz (-60 dB) |
| Image rejection: | |
| AF output power / speaker: | 2 W at 5% distortion / External only |
| External speaker connector: | 3.5 mm, 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
|
| Modulation system: | Reactance |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 500-600 ohm / 8-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1983-198x (Discontinued) |
| Additional info: | |
| Related documents: | User manual (4.5 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
FC-10
KPS-7A
MC-48
MC-55
PS-430
TU-3
|
Remote frequency control
Power supply. 13.8 VDC, 6 A (7 A peak)
Hand microphone with DTMF keypad
Mobile boom microphone
Power supply. 13.8 VDC, 10 A (20 A peak)
CTCSS/PL encoder (USA only)
|
|
