| GENERAL |

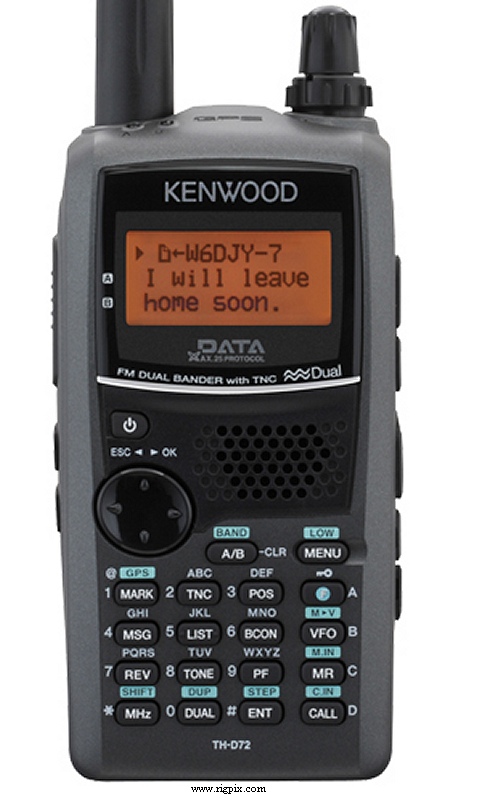

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: |
USA
TX: 144-148 / 430-450 MHz
RX: 118-174 / 320-524 MHz
|
| Tuning steps: | 5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 KHz |
| Frequency stability: | ±5 ppm @ -10° to +50°C (14° to 122°F) |
| Mode: | TX: FM / NFM
RX: AM / FM / NFM |
| Channels / memory management: |
1000 regular with alpha tags
1 call
|
| Repeater shift / offset: | ±0 to 29.95 MHz in 50 KHz steps |
| Power supply: | 5.5-9 VDC (Battery pack) or 12-16 VDC external |
| Current drain / power consumption: | RX: 30-150 mA (No signal)
TX: 0.5-2 A |
| Antenna impedance / connector: | 50 ohm / SMA |
| Dimensions (W*H*D): | 58*140*40 mm (2.28*5.51*1.58"), with PB-45L |
| Weight: | 370 g (13.05 oz), with PB-45L antenna and belt clip |
| Other features: |
Built-in 1200/9600bd TNC and GPS. APRS. Echolink support.
Mini-USB. CTCSS/PL and DCS. Sky Command II. VOX. Clock.
Weather alert. Backlit display.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 49.95 MHz (Band A), 45.05 MHz (Band B)
2nd IF: 450 KHz (Band A), 455 KHz (Band B)
|
| Sensitivity: |
Band A, 2 m/70 cm: 0.18 uV (12 dB SINAD)
Band B, 2 m/70 cm: 0.22 uV (12 dB SINAD)
|
| Selectivity: | 11 KHz (-6 dB)
30 KHz (-50 dB) |
| Image rejection: | |
| AF output power / speaker: | 300 mW at 10% distortion / 8 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Low | ELow |
|---|
| 2 m: | 2-5 W | 500 mW | 50 mW |
| 70 cm: | 2-5 W | 500 mW | 50 mW |
High power output depends on battery voltage
|
| Modulation system: | Reactance modulation |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 2 Kohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 2010-201x (Discontinued) |
| Additional info: | |
| Related documents: |
User manual (4.3 MB, Eng/Fr/Spa)
Advanced manual (7 MB)
|
| Modifications and fixes: | |
| Reviews: | QST: July 2011 |
| Options / Accessories: |
BT-15
EMC-3
HMC-3
KHS-21
KSC-32
PB-45L
PG-2W
PG-3J
SMC-32
SMC-34
|
Battery case. Six LR03/AAA batteries
Clip microphone with earphone and PTT
Headset with VOX
Headset
Rapid charger
Li-Ion battery pack. 7.4 V, 1800 mAh
DC cable
Cigarette lighter cord with noise filter
Speaker-microphone
Speaker-microphone with volume and remote control
|
|
