| GENERAL |

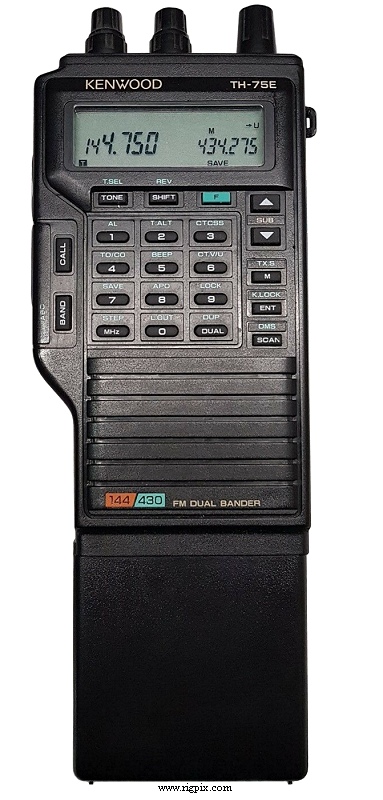

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: |
Europe
TX: 144-146 / 430-440 MHz
RX: 144-146 / 430-440 MHz
|
| Tuning steps: | 5 / 10 / 12.5 / 15 / 20 / 25 KHz |
| Frequency stability: | ±? ppm |
| Mode: | FM |
| Channels / memory management: |
20 regular (10 per band)
Channel 0, 1 and 2 on each band can also store odd splits
2 call (1 per band)
RAM storage with lithium battery backup
|
| Repeater shift / offset: | 2 m: ±600 KHz
70 cm: ±1.6 MHz and -7.6 MHz |
| Power supply: | 6.3-9 VDC (Depending on battery pack)
or 6.3-16 VDC external (Barrel connector, center positive) |
| Current drain / power consumption: | RX: 12-100 mA
TX: 0.6-1.5 A |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 58*179*30 mm (2.28*7.05*1.18") |
| Weight: | 520 g (18.34 oz), with PB-6 and antenna |
| Other features: | 1750 Hz tone call. Twin RX. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 16.9 MHz (2 m) - 59.525 MHz (70 cm)
2nd IF: 4 KHz
|
| Sensitivity: |
2 m: 0.16 uV (12 dB SINAD)
70 cm: 0.18 uV (12 dB SINAD)
|
| Selectivity: | 12 KHz (-6 dB)
28 KHz (-40 dB) |
| Image rejection: | |
| AF output power / speaker: | 400 mW at 10% distortion / 8 ohm |
| External speaker connector: | 2.5 mm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Low |
|---|
| 2 m: | 1.5-5 W | 500 mW |
| 70 cm: | 1.5-5 W | 500 mW |
The high power setting depends on voltage / battery pack.
|
| Modulation system: | Reactance |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | 2 m: Better than -60 dB
70 cm: Better than -50 dB |
| Microphone impedance / connector: | 2 Kohm / 3-conductor (3.5 mm) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1989-1990 (Discontinued) |
| Additional info: | New price 1989 in Sweden: SEK 4995:- |
| Related documents: |
User manual (1.7 MB)
Service manual (4.5 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
BC-9
BC-10
BC-11
BT-6
HMC-2
HS-7
HS-8
PB-5
PB-6
PB-7
PB-8
PG-2V
PG-3E
RA-3
SC-22
SC-23
SMC-31
SMC-32
TSU-6
WR-1
|
Wall charger. For PB-6 and PB-7
Compact charger
Rapid charger
Battery case. Six R6 / AA batteries
Headset with VOX/PTT
Micro headphones
Micro headphone
NiCd battery pack. 7.2 V, 200 mAh
NiCd battery pack. 7.2 V, 600 mAh
NiCd battery pack. 7.2 V, 1100 mAh
NiCd battery pack. 12 V, 600 mAh
DC power cable
Cigarette lighter power cable with filter
Telescopic antenna for 2 m
Soft case, for use with PB-5, PB-6 and BT-6
Soft case, for use with PB-7 and PB-8
Speaker-microphone
Speaker-microphone
CTCSS/PL unit
Water resistant bag
|
|
