| GENERAL |
| Type: | Amateur VHF/UHF transceiver |
| Frequency range: |
Europe
TX: 144-146 / 430-440 MHz
RX: 118-174 / 225-550 MHz
|
| Tuning steps: | 5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 / 125 / 200 KHz |
| Frequency stability: | ±2.5 ppm @ -10 to +60°C (14 to 140°F) |
| Mode: | TX: FM / FM-N / DV (D-Star)
RX: AM / AM-N / FM / FM-N / DV (D-Star) |
| Channels / memory management: |
1000 regular in 100 groups
50 program scan edge
4 call
2500 repeater in 50 groups
300 GPS
|
| Repeater shift / offset: | Programmable |
| Power supply: | 13.8 VDC ±15% ("T" connector on pigtail) |
| Current drain / power consumption: | RX: 1.2-1.8 A
TX: Less than 13 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |

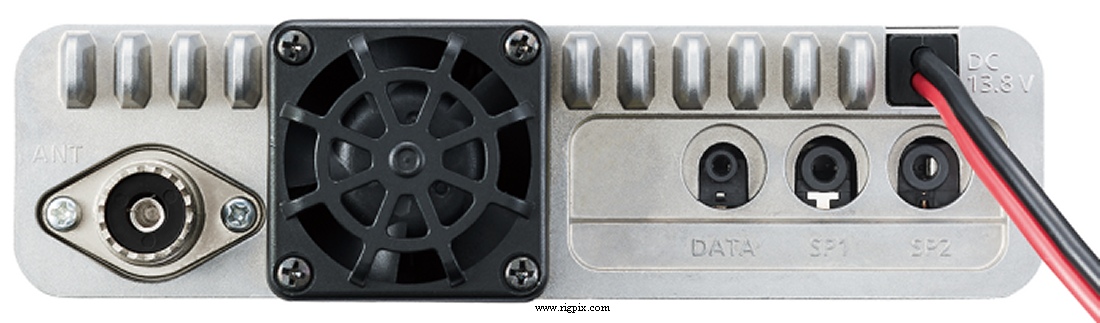

| Dimensions (W*H*D): | Main unit: 150*40*172 mm (5.9*1.6*6.8")

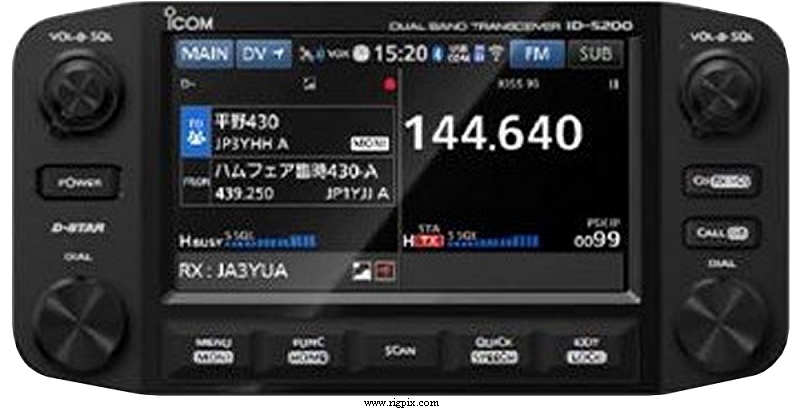

Controller: 163*84*24 mm (6.4*3.3*0.9") |
| Weight: | Main unit: 1.28 Kg (2.8 lb)
Controller: 260 g (9.2 oz) |
| Other features: |
CTCSS/PL and DTCS. 4.3" color touch screen. WiFi and Bluetooth. Gateway and
terminal or accesspoint mode. GPS. VOX. DV repeater monitoring. Bandscope and.
waterfall. Voice recorder. MicroSD card slot. USB-C connector. Clock. DR-mode.
Speech synthesizer. Auto or manual dimmer. APRS and KISS mode. CI-V. Twin RX.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 58.05 MHz (A band). 57.15 MHz (B band)
2nd IF: 450 KHz
|
| Sensitivity: |
FM/NFM (2 m/70 cm ham bands): 0.18 uV (12 dB SINAD)
DV (2 m/70 cm ham bands): 0.18 uV (BER 1%)
AM/AM-N (10 dB S/N)
118-144 MHz: 1 uV
225-250 MHz: 3.2 uV
250-300 MHz: 1 uV
300-400 MHz: 3.2 uV
FM/NFM (12 dB SINAD)
137-144 MHz: 0.32 uV
148-160 MHz: 0.32 uV
160-174 MHz: 1 uV
225-250 MHz: 1 uV
250-300 MHz: 0.32 uV
300-400 MHz: 1 uV
400-430 MHz: 0.32 uV
450-500 MHz: 0.32 uV
500-550 MHz: 0.56 uV
|
| Squelch sensitivity: | 2 m/70 cm ham bands: Less than 0.13 uV (Threshold) |
| Noise figure: | |
| Selectivity: |
Adjacent channel
FM: >60 dB
NFM: >55 dB
DV: >50 dB
|
| Image rejection: | 60 dB |
| AF output power / speaker: | 750 mW at 10% distortion / 8 ohm |
| External speaker connector: | Two TS "Minijack" (3.5 mm), 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Mid | Low |
|---|
| 2 m: | 50 W | 15 W | 5 W |
| 70 cm: | 50 W | 15 W | 5 W |
|
| Modulation system: |
FM/NFM: Variable reactance frequency modulation
DV: AMBE+2 / GMSK reactance frequency modulation
|
| Max AM modulation (Factory set): | No AM |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -60 dBc |
| Microphone impedance / connector: | 600 ohm / 8-pin (Modular) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 2026-202x |
| Additional info: |
New price, august 2026 in Sweden: SEK 9995:-
New price, august 2026 in Germany: €867.00
|
| Related documents: |
Basic user manual (10.4 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
CS-5200
HM-232
|
Programming software
Hand microphone
|
|
