| GENERAL |

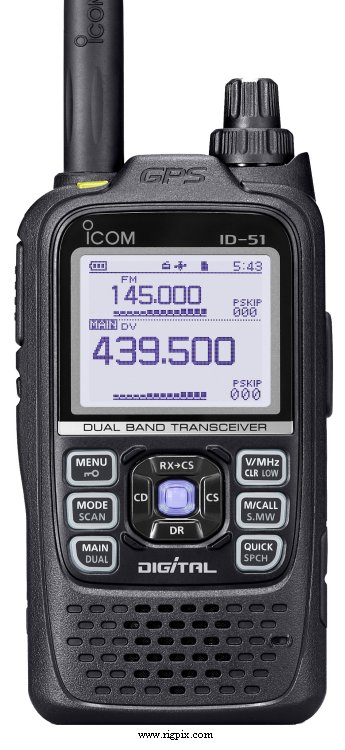

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: |
Europe
TX: 144-146 / 430-440 MHz
RX: 0.52-1.710 / 76-108 / 108-174 / 380-479 MHz
|
| Tuning steps: | 5 / 6.25 / 8.33 / 9 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 / 125 / 200 KHz |
| Frequency stability: | Max ? ppm |
| Mode: | TX: FM / NFM and DV (GMSK: 4.8 kbps voice), Improved DR-mode
RX: AM / FM / NFM and DV (GMSK: 4.8 kbps voice), Improved DR-mode |
| Channels / memory management: |
1304 total
|
| Repeater shift / offset: | ± |
| Power supply: | 5.5-7.4 VDC (Alkaline or battery pack)
or 10-16 VDC external |
| Current drain / power consumption: | RX: 200-450 mA
TX: Max 2.5 A |
| Antenna impedance / connector: | 50 ohm / SMA |
| Dimensions (W*H*D): | 58*105*26 mm (2.28*4.13*1.02") |
| Weight: | 255 g (9 oz), with BP-271 and antenna |
| Other features: |
D-Star concept. Built-in GPS with logging. CTCSS and DTCS
Micro SD card slot. 128*104 dot-matrix display
Voice synthesizer. Voice memory. Voltage indicator. IPX7 waterproof
Twin RX
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
? conversion superheterodyne
|
| Sensitivity: |
FM/NFM: 0.18 uV (12 dB SINAD)
DV: 0.28 uV (1% BER)
|
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Mid | Low 2 | Low 1 | S-Low |
|---|
| 2 m: | 5 W | 2.5 W | 1 W | 500 mW | 100 mW |
| 70 cm: | 5 W | 2.5 W | 1 W | 500 mW | 100 mW |
|
| Modulation system: | |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 2012-201x (Discontinued) |
| Additional info: | |
| Related documents: |
Pre-release info (496 KB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
AD-92SMA
BC-167SA
BC-167SD
BC-202
BP-271
BP-272Li
BP-273
BP-307
CP-12L
CP-19R
CS-51
CT-17
FA-S270C
HM-75LS
HM-153LS
HM-166LS
HM-186LS
HS-94
HS-95
HS-97
LC-179
MB-127
OPC-254L
OPC-2006LS
OPC-2144
OPC-2218LU
SJ-1
SP-13
|
BNC-to-SMA adapter
Wall charger, 12 V/500 mA output
Wall charger, 12 V/500 mA output
Rapid desktop charger
Li-Ion battery pack, 7.4 V/1200 mAh
Li-Ion battery pack, 7.4 V/2000 mAh
Battery case, 3*R6/AA
High capacity Li-Ion battery pack. 7.2 V, 3150 mAh
Cigarette lighter cable with noise filter
Cigarette lighter cable with DC-DC converter
Cloning software
CI-V level converter
VHF/UHF antenna
Remote control speaker-microphone
Durable-type earphone-microphone
Light-type earphone-microphone
Compact-type speaker-microphone
Earphone-headset (OPC-2006LS required)
Behind-the-head headset (OPC-2006LS required)
Throat microphone (OPC-2006LS required)
Carrying case
Alligator-type belt clip
DC power cable
VOX plug adapter cable
Slim L-type plug adapter
Data communication cable, USB type
Silicon jacket case
Earphone (OPC-2144 required)
|
|
