| GENERAL |

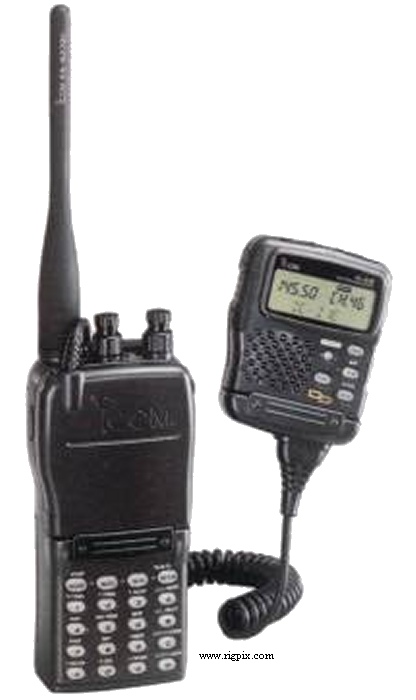

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: |
Europe
TX: 144-146 / 430-440 MHz
RX: 144-146 / 430-440 MHz
|
| Tuning steps: | 5 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 KHz |
| Frequency stability: | ±5 ppm @ 0 to 50°C (32 to 122°F) |
| Mode: | FM |
| Channels / memory management: |
100 regular
|
| Repeater shift / offset: | Programmable |
| Power supply: | 4.8-9.6 VDC (Depending on battery pack)
or 4.5-16 VDC external |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 57*125*36 mm (2.24*4.92*1.42") |
| Weight: | 380 g (13.4 oz), with BP-171 |
| Other features: |
CTCSS/PL option. Clock. Detachable speaker/mike. Twin RX.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 43.1 MHz (VHF) - 35.8 MHz (UHF)
2nd IF: 455 KHz
|
| Sensitivity: | 0.16 uV (12 dB SINAD) |
| Squelch sensitivity: | Less than 0.16 uV (Threshold) |
| Noise figure: | |
| Selectivity: | 15 KHz (-6 dB)
30 KHz (-60 dB) |
| Image rejection: | 60 dB |
| AF output power / speaker: | 180 mW at 10% distortion / 8 ohm |
| External speaker connector: | TRS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Mid | Low |
|---|
| 2 m: | 5 W | 500 mW | 15 mW |
| 70 cm: | 5 W | 500 mW | 15 mW |
|
| Modulation system: | Variable reactance requency modulation |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | 2 Kohm / TRS "Subminijack" (2.5 mm) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1995-1999 (Discontinued) |
| Additional info: |
New price 1995 in Sweden: SEK 6295:-
|
| Related documents: |
User manual (4.7 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
AD-51
BC-74A
BC-74D
BC-74E
BC-79
BC-110V
BP-170
BP-171
BP-172
BP-173
BP-180
CP-12
HM-46
HM-54
HM-75A
HS-85
LC-123
LC-124
MB-30
OPC-254
SP-13
UT-93
|
Battery pack adapter, for BC-79
Wall charger.
Wall charger.
Wall charger.
Desktop charger
Wall charger.
Battery case. Four LR6 / AA batteries
NiCd battery pack. 4.8 V, 700 mAh
NiCd battery pack. 4.8 V, 950 mAh
NiCd battery pack. 9.6 V, 650 mAh
NiCd battery pack. 7.2 V, 600 mAh
Cigarette lighter cable with filter
Speaker-microphone
Speaker-microphone
Speaker-microphone
Headset
Carrying case. For use with BP-170/171/172
Carrying case. For use with BP-173/180
Mounting bracket
DC power cable
Earphone
Tone squelch unit
|
|
