| GENERAL |

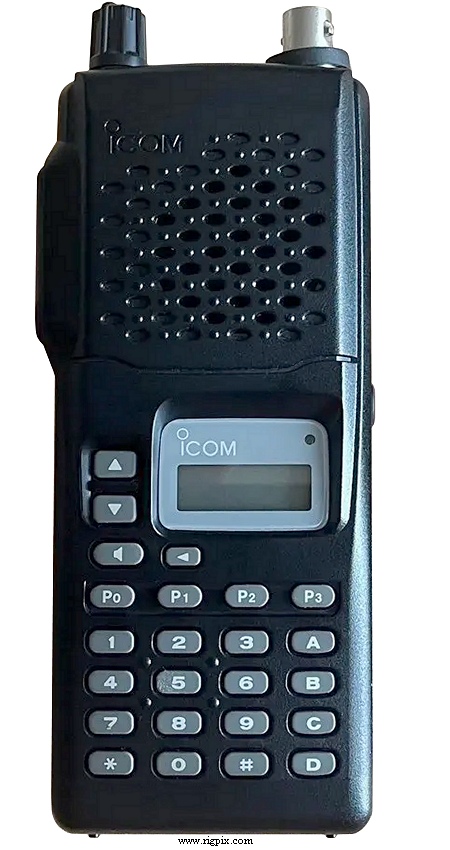

| Type: | Amateur VHF transceiver |
| Frequency range: |
General European market
TX: 144-146 MHz
RX: 136-174 MHz
Italy
TX: 136-174 MHz
RX: 136-174 MHz
|
| Tuning steps: | 5 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 KHz |
| Frequency stability: | ±10 ppm @ 0 to 50°C (32 to 122°F) |
| Mode: | FM |
| Channels / memory management: |
40 regular @ 10 channels per second
1 call
1 scan edge pair
5 DTMF
Selectable squelch or pause timer scan resume
|
| Repeater shift / offset: | Programmable |
| Power supply: | 9-13 VDC (NiCd or alkaline batteries) |
| Current drain / power consumption: | RX: 25-150 mA
TX: 1.4 A @ 4.5 W output power |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 58*141*32 mm (2.28*5.55*1.26") |
| Weight: | 420 g (14.82 oz), with eight NiCd batteries in BP-194 |
| Other features: |
CTCSS/PL with tone scan. ANI. DTMF keypad. Backlit display.
1750 Hz call tone. Cloning.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 30.85 MHz
2nd IF: 450 KHz
|
| Sensitivity: | 2 m: 0.18 uV (12 dB SINAD) |
| Squelch sensitivity: | 0.18 uV (Threshold) |
| Noise figure: | |
| Selectivity: | |
| Image rejection: | 60 dB |
| AF output power / speaker: | 350 mW at 10% distortion / 8 ohm |
| External speaker connector: | TRS "Minijack" (3.5 mm), 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
|
| Modulation system: | Variable reactance modulation |
| Max AM modulation (Factory set): | No AM |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | 2 Kohm / TRS "Subminijack" (2.5 mm) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1996-200x (Discontinued) |
| Reset procedure: |
CPU
While pushing [A] + [C], turn power ON.
CLEAR appears briefly to indicate CPU reset.
|
| Additional info: | |
| Related documents: |
User manual (3.2 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
AD-81
BC-110A
BC-110D
BC-110V
BC-119
BP-194
BP-195
BP-196
CP-12L
CS-T2
HM-46
HM-54
HM-75A
HS-51
LC-145
OPC-254L
OPC-474
OPC-478
SP-13
|
Battery pack adapter
Wall charger. USA, 120 VAC. 12 VDC, 100 mA
Wall charger. Europe, 230 VAC. 12 VDC, 100 mA
Wall charger. Australia, 240 VAC. 12 VDC, 100 mA
Desktop rapid charger
Battery case for eight R6/AA alkaline or NiCd batteries
NiCd battery pack. 9.6 V, 700 mAh
NiCd battery pack. 9.6 V, 1050 mAh
Cigarette lighter cable with noise filter
Cloning software
Speaker-microphone
Speaker-microphone
Speaker-microphone with remote control
Headset with VOX and PTT
Carrying case
DC power cable
Cloning cable (Transceiver-to-transceiver cloning)
Cloning cable (Transceiver-to-PC cloning)
Earphone
|
|
