| GENERAL |

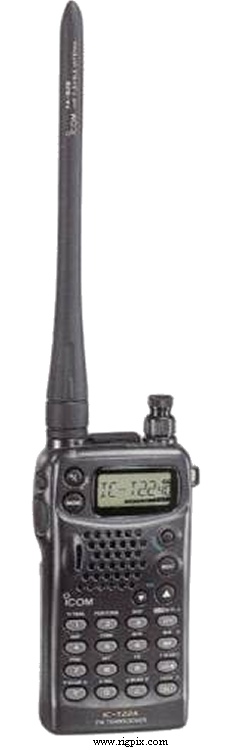

| Type: | Amateur VHF transceiver |
| Frequency range: |
Europe, general market
TX: 144-146 MHz
RX: 136-174 MHz
Italy
TX: 144-148 MHz
RX: 136-174 MHz
(The wide RX frequency range may require modification)
|
| Tuning steps: | 5 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 KHz |
| Frequency stability: | ±10 ppm @ 0 to 50°C (32 to 122°F) |
| Mode: | FM |
| Channels / memory management: |
40 regular
3 scan edge pairs
1 call
6 DTMF with up to 30 digits each
Alpha tags
Priority watch
|
| Repeater shift / offset: | ±? |
| Power supply: | 4.5-9.6 VDC (Depending on battery pack)
or 4.5-16 VDC external |
| Current drain / power consumption: | RX: 15-150 mA
TX: 0.5-1.4 A |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 57*110*27 mm (2.24*4.33*1.06"), with BP-171 |
| Weight: | 310 g (10.9 oz), with BP-171 and antenna |
| Other features: |
1750 Hz tone burst. DTMF.
Optional CTCSS/PL encoder/decoder with tone scan.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 30.85 MHz
2nd IF: 450 KHz
|
| Sensitivity: | 0.16 uV (12 dB SINAD) |
| Selectivity: | 15 KHz (-6 dB)
30 KHz (-60 dB) |
| Image rejection: | -60 dB |
| AF output power / speaker: | 200 mW at 10% distortion / 8 ohm |
| External speaker connector: | 3.5 mm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High
@ 9.6V | High
@ 7.2V | High
@ 4.8V | Low |
|---|
| 2 m: | 5 W | 3.5 W | 1.5 W | 500 mW |
|
| Modulation system: | Variable reactance frequency modulation |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | 2 Kohm / 3-pin (2.5 mm) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1998-199x (Discontinued) |
| Additional info: | |
| Related documents: | User manual (9.7 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
AD-56
BC-74E
BC-110A
BC-110D
BC-119
BP-170
BP-171
BP-172
BP-173
BP-180
CP-12L
HM-46
HM-54
HM-75A
HS-85
LC-125
LC-126
MB-30
OPC-254L
SP-13
UT-94
|
Battery pack charger adapter
Wall charger
Wall charger
Wall charger
Desktop rapid charger
Battery case. Four LR6/AA batteries
NiCd battery pack. 4.8 V, 700 mAh
NiCd battery pack. 4.8 V, 950 mAh
NiCd battery pack. 9.6 V, 650 mAh
NiCd battery pack. 7.2 V, 600 mAh
Cigarette lighter cable with filter
Speaker-microphone
Speaker-microphone
Speaker-microphone
Headset with PTT and VOX
Carrying case. For use with BP-170 / 171 / 172
Carrying case. For use with BP-173 / 180
Mobile bracket
DC power cable
Earphone
Tone squelch unit (CTCSS/PL encoder/decoder)
|
|
