Icom IC-R9500

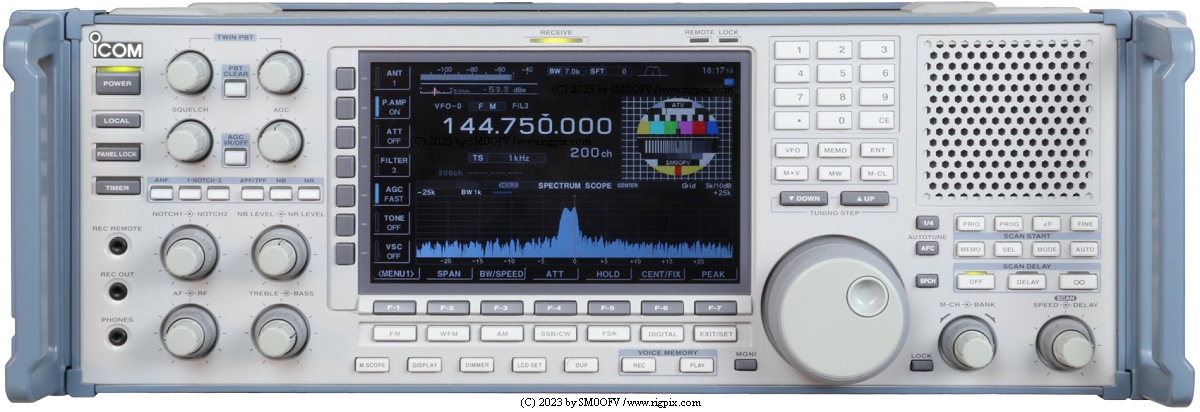

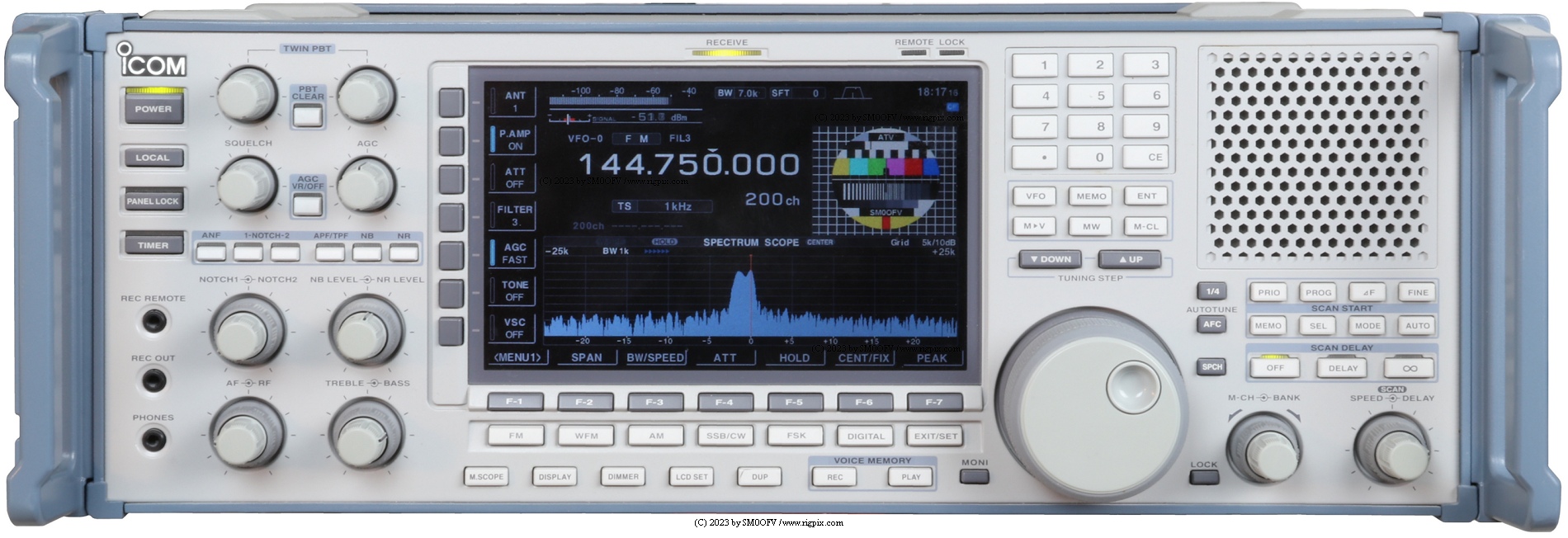

A picture of Icom IC-R9500 with small ATV picture

SPECIFICATIONS

GENERAL
Type:HF/VHF/UHF receiver/scanner
Frequency range:0.005-3335 MHz (Cellular blocked in the US)
Tuning steps:Down to 1 Hz
Frequency stability:Less than 0.05 ppm (after 5 min warmup) @ 0-50°C (32-122°F)
Mode:AM / AM-Sync / FM / WFM / SSB / CW / FSK (APCO P25 DV option)
Also analog TV (AM video), but not in the US version
Channels / memory management: 1000 regular
100 auto write
100 scan skip
20 scan edge
Non-volatile EEPROM storage
Power supply:Mains: 100 / 120 / 230 / 240 VAC (3-pin IEC C14 connector)
Current drain / power consumption:Less than 100 VA
Antenna impedance / connector: 0.005-30 MHz: 50 ohm / SO-239
0.005-30 MHz: 500 ohm / Phono (RCA)
30-1150 MHz: 50 ohm / N-jack
1150-3300 MHz: 50 ohm / N-jack
Dimensions (W*H*D):424*149*340 mm (16.69*5.87*13.39")
Weight:20 Kg (44 lb)
Other features: Dual DSP. 7" TFT. +40 dBm IP3. Spectrum scope. Two channel NB. VSC. AFC.
Five roofing filters. DVR. Video in/out. CI-V/RS-232C. CTCSS/PL and DTCS.
RTTY decoder (45 and 50 baud).




RECEIVER SECTION
Receiver system: Quadruple conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
Sensitivity: AM (10 dB S/N)
0.1-1.8 MHz: 6.3 uV
1.8-30 MHz: 1 uV
30-3335 MHz: 1.4 uV
FM (12 dB SINAD)
1.8-30 MHz: 0.5 uV
30-3335 MHz: 0.5 uV
WFM (12 dB SINAD)
30-3335 MHz: 1.4 uV
SSB/CW/FSK (10 dB S/N)
0.1-1.8 MHz: 0.5 uV
1.8-30 MHz: 0.16 uV
30-3335 MHz: 0.32 uV
Selectivity: AM (BW=6 KHz)
>6 KHz (-3 dB)
<15 KHz (-60 dB)
FM (BW=15 KHz)
>12 KHz (-6 dB)
<20 KHz (-60 dB)
WFM (BW=350 Hz)
>150 KHz (-6 dB)
SSB/FSK (BW=2.4 KHz)
>2.4 KHz (-3 dB)
<3.6 KHz (-60 dB)
CW (BW=500 Hz)
>500 Hz (-3 dB)
<700 Hz (-60 dB)
Image rejection: 0.1-30 MHz: >70 dB
30-3335 MHz: >50 dB
AF output power / speaker:2.6 W at 10% distortion / 8 ohm
External speaker connector:3.5 mm, 8 ohm




MISCELLANEOUS
Manufactured:Japan, 2007-20xx (Discontinued)
Additional info:New price 2007 in Sweden: SEK 125000:-
Related documents: User manual (9.1 MB)
Service manual (29.5 MB)
Modifications and fixes:
Reviews:
Options / Accessories:
CT-17
SP-20
UT-122
CI-V level converter
External speaker with filter. 8 ohm, 5 W
P25/DV unit

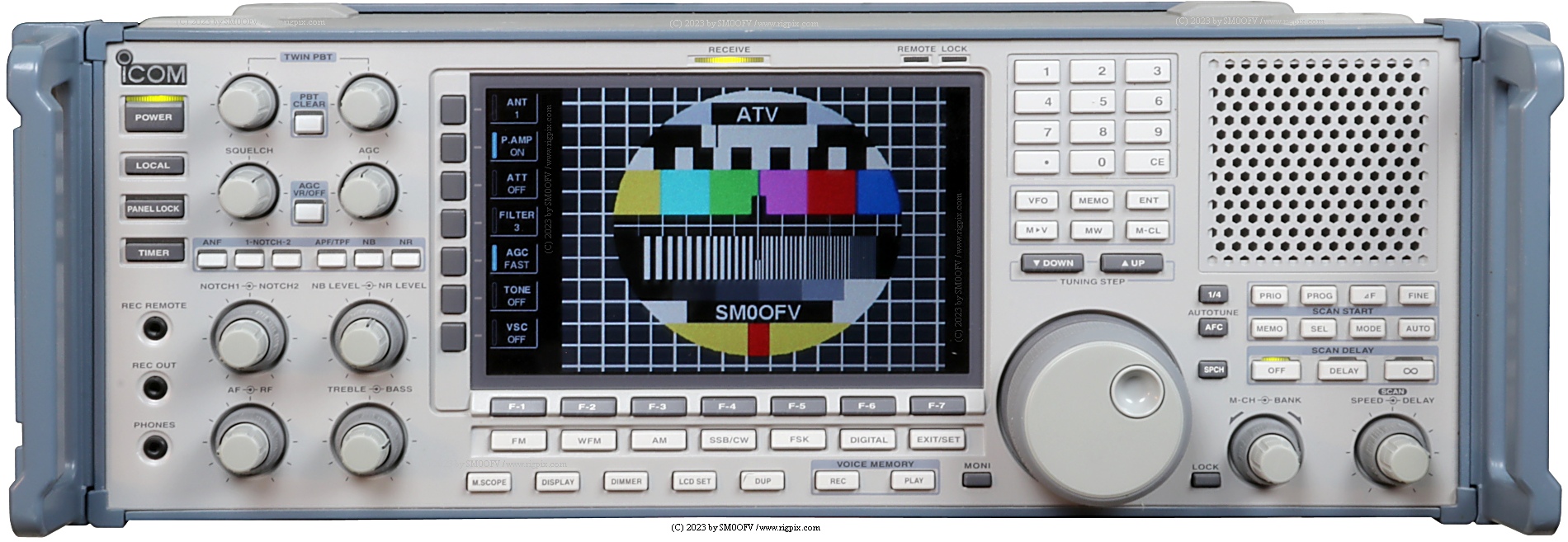

A picture of Icom IC-R9500 with large ATV picture

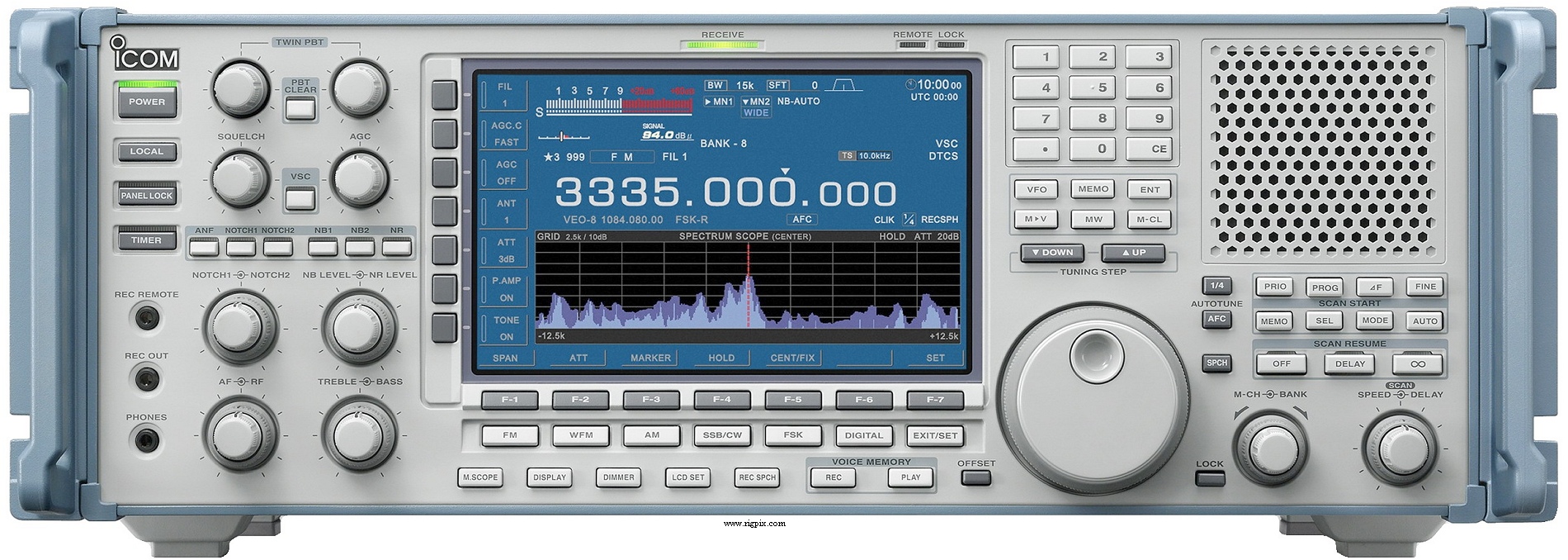

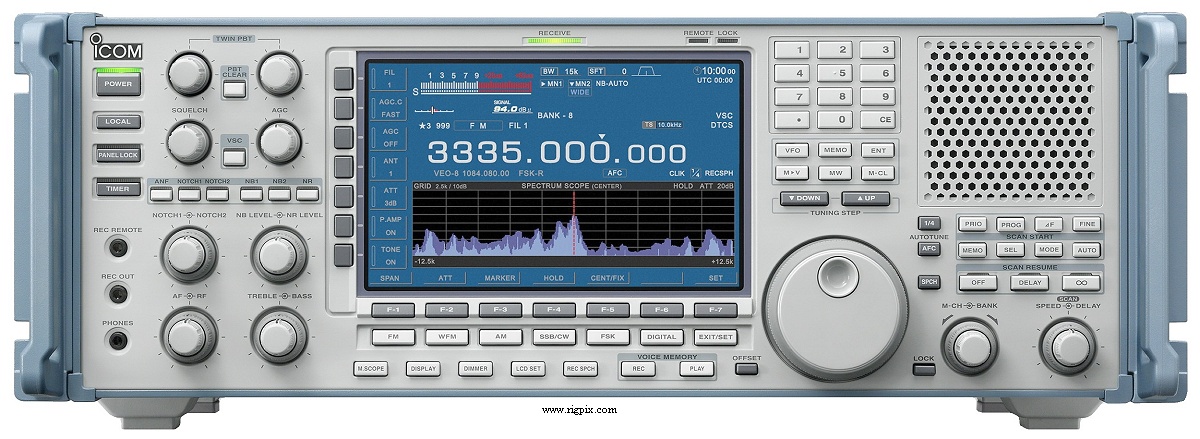

A picture of Icom IC-R9500

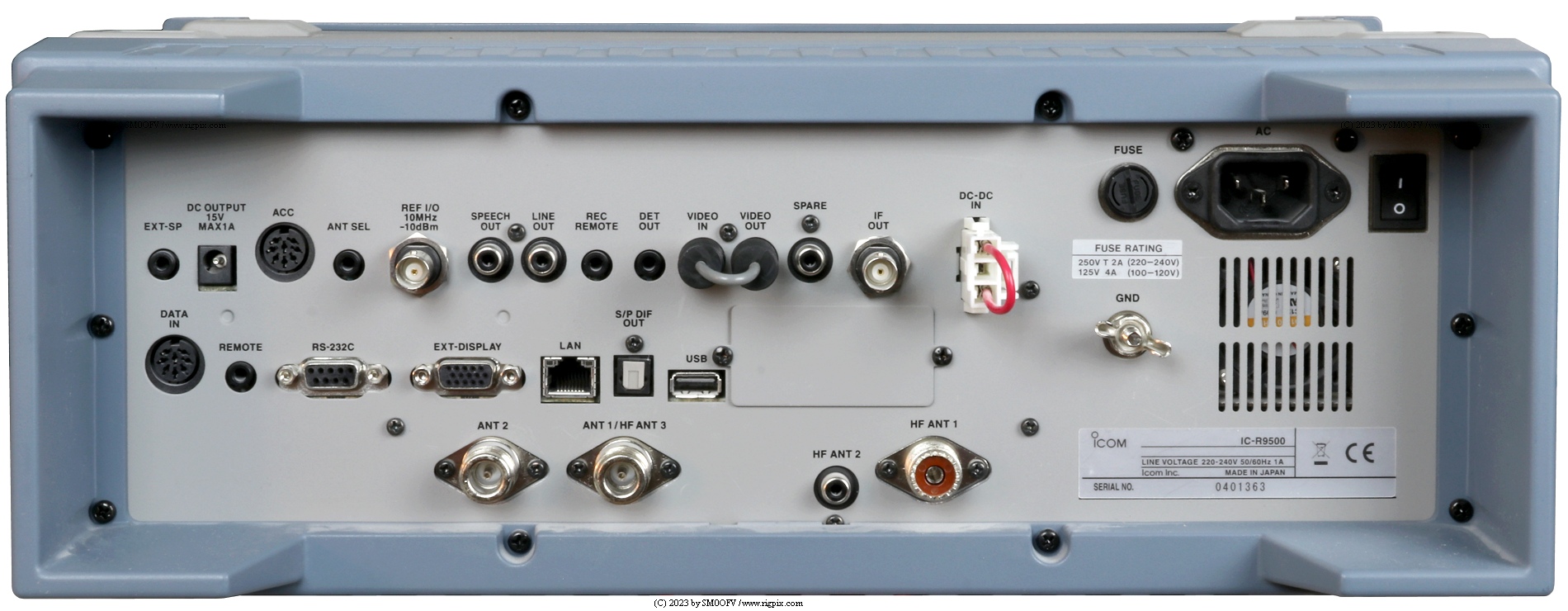

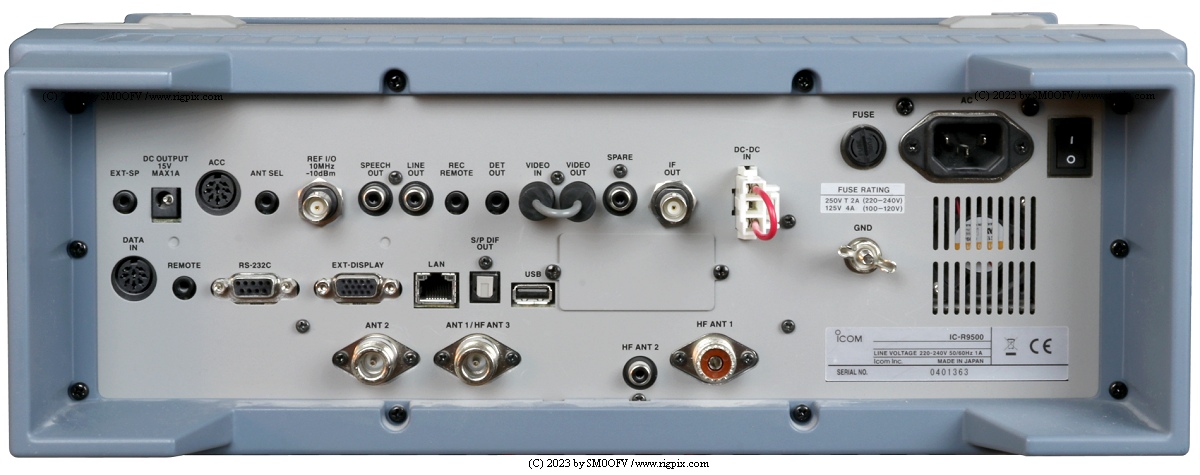

A rear picture of Icom IC-R9500
