Icom IC-R7000

A picture of Icom IC-R7000

SPECIFICATIONS

GENERAL
Type:HF/VHF/UHF receiver/scanner
Frequency range:25-1000 / 1025-2000 MHz
Tuning steps:0.1 / 1 / 5 / 10 / 12.5 / 25 KHz
Frequency stability: 25-1000 MHz: ±5 ppm @ 0 to 50°C (32 to 122°F)
1240-1300 MHz: ±10 ppm @ 0 to 50°C (32 to 122°F)
Mode:AM / FM / FM-N / WFM / SSB
Channels / memory management: 79 regular
20 auto-write
1 priority
2 scan edges
RAM storage with lithium battery backup
Power supply:Mains: 110 / 117 / 220 / 240 VAC (3-pin IEC C14 connector)
or 13.8 VDC
Current drain / power consumption:1.4-1.7 A @ 13.8 VDC
Antenna impedance / connector:50 ohm / N-jack
Dimensions (W*H*D):286*110*276 mm (11.3*4.3*10.9")
Weight:8 Kg (17.6 lb)
Other features: Noise blanker, VSC, CI-V interface, Dimmer, Attenuator (-20 dB)
10.7 MHz IF output.




RECEIVER SECTION
Receiver system: 25-1000 MHz:
Triple conversion superheterodyne (AM/FM/SSB)
Dual conversion superheterodyne (WFM)
1025-2000 MHz:
Quadruple conversion superheterodyne (AM/FM/SSB)
Triple conversion superheterodyne (WFM)
25-512 MHz:
1st IF: 778.7 MHz
2nd IF: 10.7 MHz
3rd IF: 455 KHz (excluding WFM)
512-1000 MHz:
1 st IF: 266.7 MHz
2nd IF: 10.7 MHz
3rd IF: 455 KHz (excluding WFM)
Sensitivity: AM (10 dB S/N)
25-1000 MHz: 1 uV
1240-1300 MHz: 2 uV
FM (12 dB SINAD)
25-1000 MHz: 0.5 uV
1240-1300 MHz: 0.5 uV
WFM (12 dB SINAD)
25-1000 MHz: 1 uV
1240-1300 MHz: 2 uV
SSB (10 dB S/N)
25-1000 MHz: 0.3 uV
1240-1300 MHz: 0.3 uV
Selectivity: AM/FM
15 KHz (-6 dB)
AM/FM (Narrow)
6 KHz (-6 dB)
WFM
150 KHz (-6 dB)
SSB
2.8 KHz (-6 dB)
Image rejection:>60 dB
AF output power / speaker:2.5 W at 10% distortion / 8 ohm
External speaker connector:3.5 mm, 4-8 ohm




MISCELLANEOUS
Manufactured:Japan, 1986-1990 (Discontinued)
Additional info: New price 1986 in Sweden: SEK 9780:-
New price 1989 in the US: $1029.00
Related documents:User manual (3.2 MB)
Modifications and fixes:
Reviews:
Options / Accessories:
AH-7000
CT-17
EX-310
HP-2
IC-SP3
RC-12
SP-7
TV-R7000
Super wideband discone antenna, 25-1300 MHz
CI-V level converter
Voice synthesizer unit
Lightweight communication headphones
External speaker
Wireless remote controller
External speaker
TV receive adapter

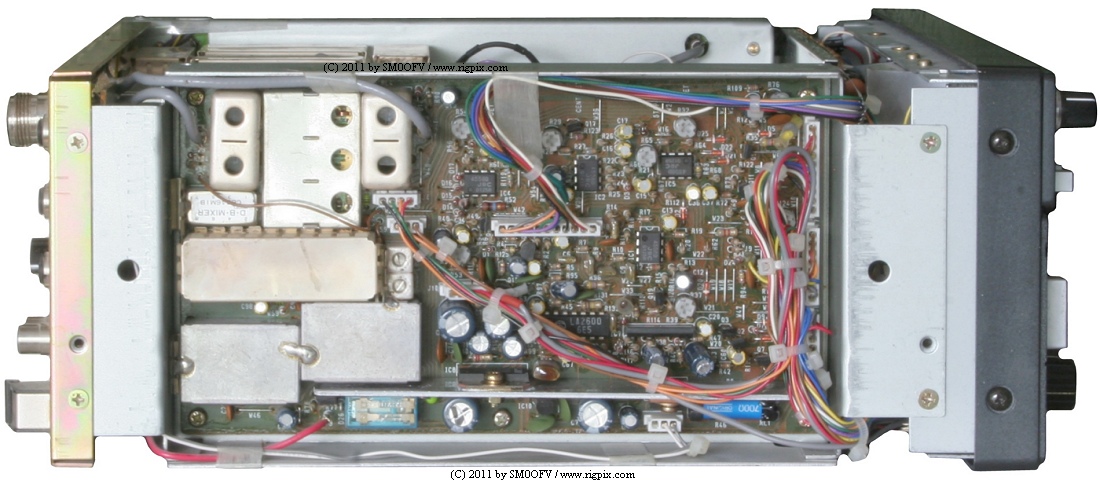

A left sidepicture of Icom IC-R7000
A top picture of Icom IC-R7000
A bottom picture of Icom IC-R7000
A rear picture of Icom IC-R7000
