| GENERAL |

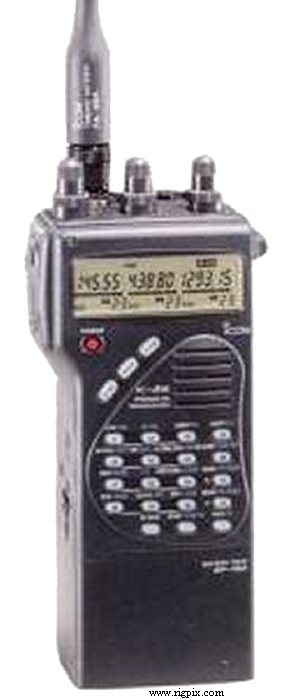

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: |
TX: 144-148 / 440-450 / 1240-1300 MHz
RX: 118-174 / 350-470 / 800-950 / 1240-1300 MHz
|
| Tuning steps: |
2 m/70 cm: 5 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 KHz
23 cm: 10 / 20 / 25 / 50 KHz
|
| Frequency stability: |
2 m/70 cm: Max ±5 ppm @ 0 to +50°C (+32 to +122°F)
23 cm: Max ±3 ppm @ 0 to +50°C (+32 to +122°F)
|
| Mode: | FM |
| Channels / memory management: |
23 regular per band
2 scan edge per band
1 call per band
|
| Repeater shift / offset: | ±0 to 60 MHz in selected step size |
| Power supply: | 7.2-12 VDC (Depending on battery pack)
or 6-15 VDC external |
| Current drain / power consumption: | RX: 20-590 mA
TX: 0.7-1.9 A |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 58*145*49 mm (2.3*5.7*1.9"), with BP-102 |
| Weight: | 635 g (1.4 lb), with BP-102 |
| Other features: | DTMF. Clock. Timer. Triple independent receivers. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 30.85 MHz (2 m)
1st IF: 35.8 MHz (70 cm)
1st IF: 72.2 MHz (23 cm)
2nd IF: 455 KHz - Ceramic filter: CFUM455E
|
| Sensitivity: | 2 m/70 cm: <0.16 uV (12 dB SINAD)
23 cm: <0.2 uV (12 dB SINAD) |
| Selectivity: | 15 KHz (-6 dB)
30 KHz (-60 dB) |
| Image rejection: | |
| AF output power / speaker: | 200 mW at 10% distortion / 8 ohm |
| External speaker connector: | 3.5 mm, 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Mid | Low |
|---|
| 2 m: | 5 W | 3.5 W | 500 mW |
| 70 cm: | 5 W | 3.5 W | 500 mW |
| 23 cm: | 1 W | 200 mW | 200 mW |
Indicated high power is @ 13.5 VDC
|
| Modulation system: | Variable reactance frequency modulation |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | 2 m/70 cm: Better than -60 dB
23 cm: Better than -40 dB |
| Microphone impedance / connector: | 2 Kohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1992-199x (Discontinued) |
| Additional info: | |
| Related documents: |
User manual (5.4 MB)
Service manual (7.6 MB)
FM-IF 1: TK10487 (2 m)
FM-IF 2: MC3371D (70 cm)
FM-IF 3: MC3371D (23 cm)
PLL 1: M56760PF (2 m)
PLL 2: M56760FP (70 cm)
PLL 3: MB1502PF (23 cm)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
AD-22
AD-27
BC-77A
BC-77D
BC-77E
BC-77V
BC-79
BP-100
BP-101
BP-102
BP-103
CP-13
HM-65
HM-70
HS-60
MB-24
MB-25
OPC-288
UT-70
UT-71
|
Battery charge adapter
Battery pack adapter
Wall charger. 12 VDC, 100 mA. For BP-101 and BP-103
Wall charger. 12 VDC, 100 mA (EU 220 VAC). For BP-101 and BP-103
Wall charger. 12 VDC, 100 mA. For BP-101 and BP-103
Wall charger. 12 VDC, 100 mA. For BP-101 and BP-103
Desktop rapid charger for BP-101/102/103. Requires AD-27
Battery case, for six LR6/AA alkaline or NiCd batteries
NiCd battery pack. 7.2 V, 700 mAh
NiCd battery pack. 7.2 V, 1200 mAh
NiCd battery pack. 12 V, 600 mAh
Cigarette lighter cable with noise filter
Speaker-microphone with earphone jack
Speaker-microphone
Headset with VOX and PTT
Mounting bracket. Hanger type
Mounting bracket. Wall type
DC power cable
Tone squelch (Triband capable) and tone encoder unit
Programmable tone encoder unit (Standard in the US version)
|
|
