| GENERAL |

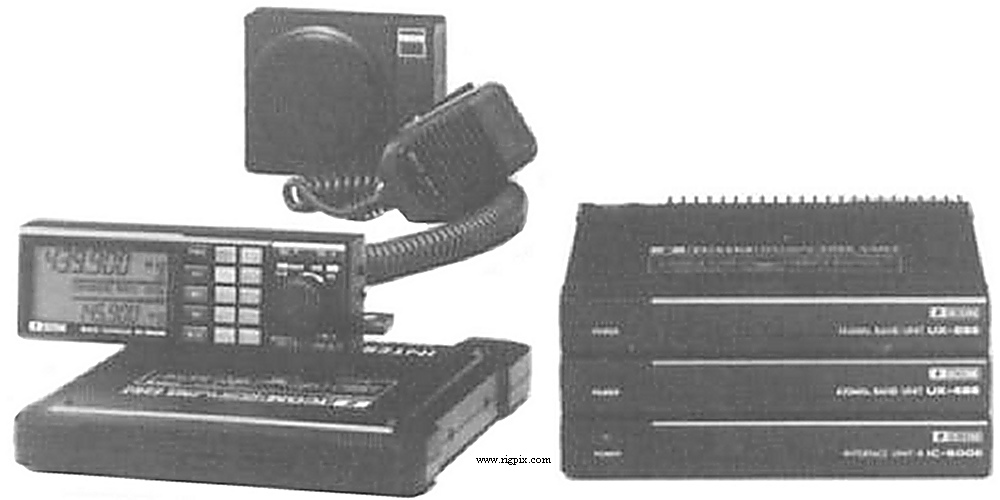

| Type: | Modular amateur HF/VHF/UHF transceiver system |
| Frequency range: |
Europe
TX: 144-146 / 430-440 MHz
RX: 144-146 / 430-440 MHz
(With band modules UX-29E and UX-49E)
|
| Tuning steps: | 12.5 / 25 KHz (Except UX-19E and UX-59A)
5 / 10 / 15 / 20 / 25 KHz (With UX-19E and UX-59A) |
| Frequency stability: | ±10 ppm @ -10 to +60°C (14 to 140°F) |
| Mode: | FM |
| Channels / memory management: |
10 regular per band
1 call per band
1 programmed scan pair
|
| Repeater shift / offset: | Depending on band units |
| Power supply: | 13.8 VDC ±15% |
| Current drain / power consumption: | RX: 0.7-1.7 A (Main + sub band)
TX: 1.5-9.5 A (Check the service manual for band unit details) |
| Antenna impedance / connector: | 50 ohm / SO-239 (N-jack for UX-129E) |
| Dimensions (W*H*D): |
Controller: 150*50*25 mm (5.91*1.97*0.98")
Interface A: 177*25*177 mm (6.97*0.98*6.97")
Interface B: 177*25*192 mm (6.97*0.98*7.56")
(Check the service manual for band unit details)
|
| Weight: |
Controller: 200 g (7.06 oz)
Interface A: 500 g (1.1 lb)
Interface B: 900 g (1.98 lb)
(Check the service manual for band unit details)
|
| Other features: | CTCSS/PL encoder. Twin RX. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: | Check the service manual for band unit details |
| Sensitivity: | Check the service manual for band unit details |
| Selectivity: | Check the service manual for band unit details |
| Image rejection: | Check the service manual for band unit details |
| AF output power / speaker: | 2.4 W at ?% distortion / No internal speaker |
| External speaker connector: | 3.5 mm, 4-8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Low | Band unit |
|---|
| 10 m: | 10 W | 1 W | UX-19E |
| 6 m: | 10 W | 1 W | UX-59A |
| 2 m: | 25 W | 5 W | UX-29E |
| 2 m: | 45 W | 5 W | UX-29H |
| 70 cm: | 25 W | 5 W | UX-49E |
| 23 cm: | 10 W | 1 W | UX-129E |
|
| Modulation system: | Variable reactance frequency modulation |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 600 ohm / 8-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1987-1988 (Discontinued) |
| Additional info: | |
| Related documents: |
User manual (3.1 MB)
Service manual (9.6 MB), including band units
|
| Modifications and fixes: | |
| Options / Accessories: |
CF-11
HS-15
HS-15SB
IC-PS30
MB-21
SP-8
SP-10
UT-28
UT-29
UX-19E
UX-29E
UX-29E
UX-29H
UX-29H
UX-49E
UX-59A
UX-129E
|
Cooling fan kit
Flexible mobile microphone
Switch box
AC power supply. 13.8 VDC, max 25 A
Remote controller bracket
External speaker
External speaker
DCS unit
Tone squelch unit
10 m band unit, 10 W
2 m band unit, 25 W (Europe)
2 m band unit, 25 W (Italy)
2 m band unit, 45 W (Europe)
2 m band unit, 45 W (Italy)
70 cm band unit, 25 W
6 m band unit, 10 W
23 cm band unit, 10 W
|
|
