| GENERAL |

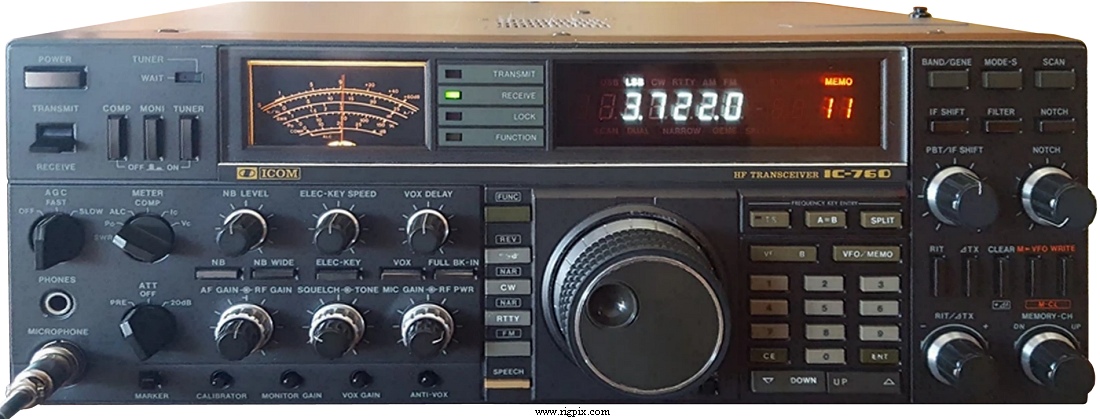

| Type: | Amateur HF transceiver |
| Frequency range: |
Japanese domestic market
TX: 10-160 m + WARC
RX: 0.1-30 MHz
|
| Tuning steps: | 10 / 50 / 100 Hz, 1 / 5 / 25 / 500 KHz |
| Frequency stability: | ±100 Hz @ -10 to +60°C (14 to 140°F) |
| Mode: | AM / FM / SSB / CW / RTTY |
| Channels / memory management: |
32 regular
2 scan edge
RAM storage with lithium battery backup
|
| Repeater shift / offset: | No dedicated. Use VFO A/B split |
| Power supply: | Mains: 100 VAC ±10% (3-pin IEC C14 connector) |
| Current drain / power consumption: | RX: ? VA
TX: ? VA |
| Antenna impedance / connector: | 50 ohm (16.7-150 ohm with ATU on) / SO-239 |
| Dimensions (W*H*D): | 424*150*390 mm (16.69*5.91*15.35") |
| Weight: | 17.5 Kg (38.58 lb) |
| Other features: |
NB. PBT. Transverter jack. VOX. CI-V computer control.
Auto-ATU. Electronic keyer with full QSK.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Triple conversion superheterodyne
1st IF: 70.4515 MHz
2nd IF: 9.01 MHz
3rd IF: 455 KHz
Quadruple conversion superheterodyne
1st IF: 70.4515 MHz
2nd IF: 9.01 MHz
3rd IF: 455 KHz
4th IF: ? ?Hz
|
| Sensitivity: |
AM (10 dB S/N)
0.1-0.5 MHz: 3.2 uV
0.5-1.6 MHz: 6.3 uV
1.6-30 MHz: 1 uV
FM (12 dB SINAD)
28-30 MHz: 0.3 uV
SSB/CW/RTTY (10 dB S/N)
0.1-0.5 MHz: 0.5 uV
0.5-1.8 MHz: 1 uV
1.8-30 MHz: 0.16 uV
|
| Selectivity: |
AM
6 KHz (-6 dB)
18 KHz (-50 dB)
FM
15 KHz (-6 dB)
30 KHz (-50 dB)
SSB
2.4 KHz (-6 dB)
3.8 KHz (-60 dB)
CW/RTTY
500 Hz (-6 dB)
1 KHz (-60 dB)
|
| Image rejection: | |
| AF output power / speaker: | 2.5 W at 10% distortion / 8 ohm |
| External speaker connector: | 3.5 mm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| Pwr |
|---|
| AM: | 10-40 W |
| FM: | 10-100 W |
| SSB (PEP): | 10-100 W |
| CW/RTTY: | 10-100 W |
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 600 ohm / 8-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 198x-198x (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
AT-500
CT-16
CT-17
EX-310
FL-53A
FL-101
FL-102
HM-36
HP-2
IC-2KL
MB-19
OPC-118
SM-8
SM-10
SP-20
UT-30
|
Automatic antenna tuner
Satellite interface unit
CI-V level converter
Speech synthesizer unit
250 Hz CW/RTTY narrow filter (IF: 455 KHz)
250 Hz CW narrow filter (IF: 9 MHz)
6 KHz AM filter (IF: 9 MHz)
Standard hand microphone
Lightweight communication headphones
HF linear amplifier
Rack mounting handles
Adapter cable, 24-pin to 8-pin. For IC-2KL
Desk microphone with dual line output
Desk microphone with compressor & equalizer
External speaker
Programmable tone encoder unit
|
|
