| GENERAL |

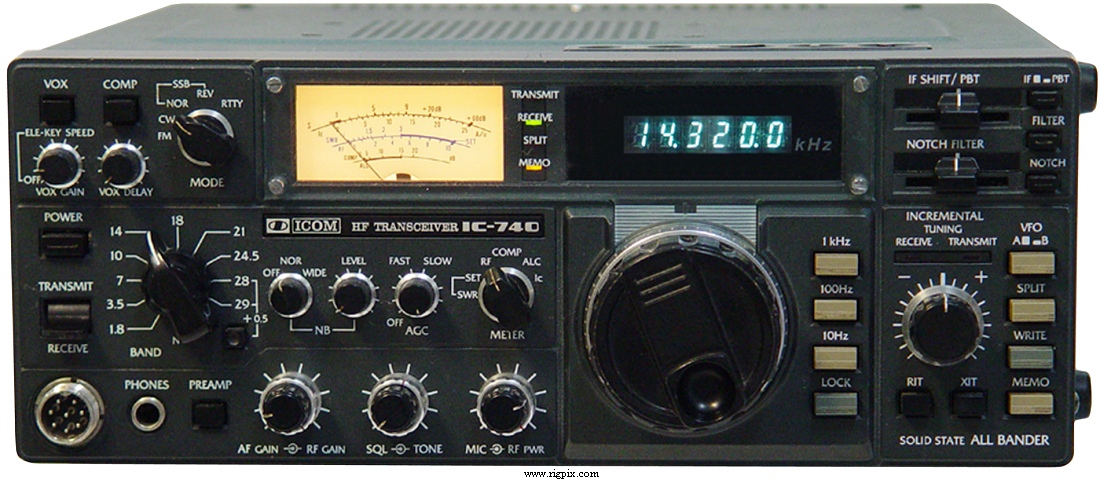

| Type: | Amateur HF transceiver |
| Frequency range: |
TX: 10-160 m + 30 m
RX: 10-160 m + WARC
|
| Tuning steps: | 10 / 100 Hz, 1 KHz |
| Frequency stability: | Less than 1 KHz @ -10 to +60°C (14 to 140°F) |
| Mode: | SSB / CW / RTTY (FM option) |
| Channels / memory management: |
12 regular
RAM storage. External 9-12 VDC backup voltage to separate terminal
|
| Repeater shift / offset: | No dedicated. Use VFO A/B split |
| Power supply: | 13.8 VDC ±15% (Mains option) |
| Current drain / power consumption: | RX: ? mA
TX: Max 20 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 286*111*374 mm (11.26*4.37*14.72") |
| Weight: | 8 Kg (17.64 lb) |
| Other features: | PBT. VOX. NB. Transverter terminal. SWR-meter |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Triple conversion superheterodyne
1st IF: 39.7315 MHz
2nd IF: 9.0115 MHz
3rd IF: 455 KHz
|
| Sensitivity: |
SSB/CW/RTTY: 0.3 uV (10 dB S+N/N)
FM: 0.3 uV (20 dB noise quieting), with EX-243 option
|
| Selectivity: |
SSB/RTTY
2.4 KHz (-6 dB)
4.5 KHz (-60 dB)
|
| Image rejection: | 60 dB |
| AF output power / speaker: | 2.6 W at ?% distortion / 8 ohm |
| External speaker connector: | 3.5 mm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| Pwr |
|
|---|
| FM: | 10 W | (With optional EX-242) |
| SSB (PEP): | ~100 W |
|
| CW/RTTY: | ~100 W |
|
|
| Modulation system: | |
| Max FM deviation: | ±? KHz (With optional EX-242) |
| Spurious emissions: | Better than -50 dB |
| Microphone impedance / connector: | 1.3 Kohm / 8-pin (Metal locking ring connector) |
| Microphone input level: | ~120 mV (Typical) |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1982-198x (Discontinued) |
| Additional info: | New price september 1982 in Sweden: SEK 8200:- |
| Related documents: | User manual (4 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
BC-10A
EX-241
EX-242
EX-243
FL-44
FL-45
FL-52
FL-53
FL-54
IC-2KL
IC-AT100
IC-AT500
IC-HM7
IC-HM10
IC-HP1
IC-MB12
IC-PS15
IC-PS740
IC-SM5
IC-SP3
|
Memory backup AC power supply
Marker unit
FM unit
Electronic keyer unit
2.4 KHz (-6 dB) SSB filter. IF: 455 KHz
500 Hz (-6 dB) CW/RTTY filter. IF: 9.0115 MHz
500 Hz (-6 dB) CW/RTTY filter. IF: 455 KHz
250 Hz (-6 dB) CW filter. IF: 455 KHz
270 Hz (-6 dB) CW filter. IF: 9.0115 MHz
Linear amplifier. 500 W
Automatic antenna tuner. 100 W
Automatic antenna tuner. 500 W
Standard hand microphone
Scanning microphone
Headphones
Mobile mounting bracket
External AC power supply
Internal power supply unit
Electret desk microphone
External speaker
|
|
