| GENERAL |

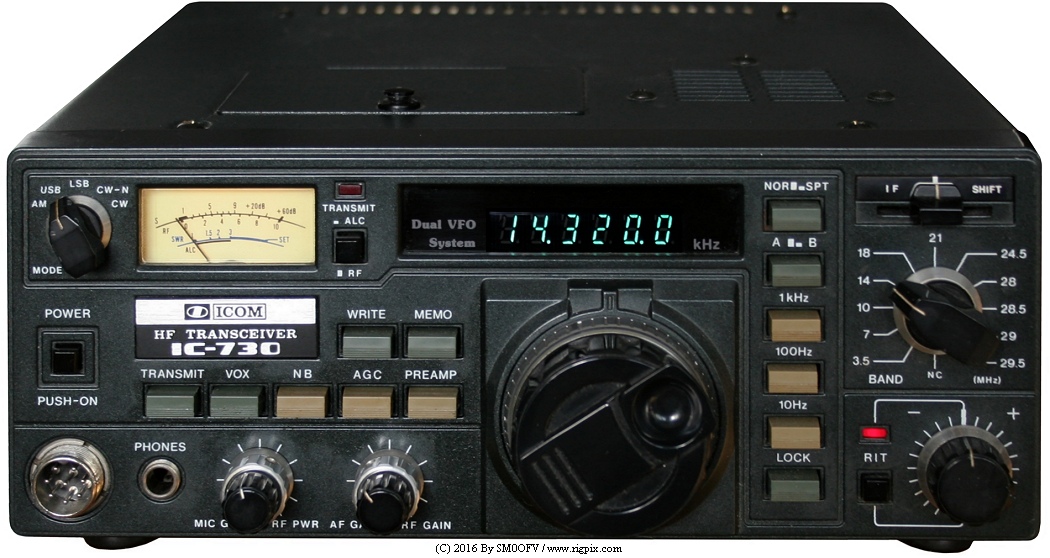

| Type: | Amateur HF transceiver |
| Frequency range: |
10-80 m + WARC
3.5-4.0 MHz
7.0-7.3 MHz
10.0-10.5 MHz (RX only)
14.0-14.35 MHz
18.0-18.5 MHz (RX only)
21.0-21.45 MHz
24.5-25.0 MHz (RX only)
28.0-29.7 MHz
|
| Tuning steps: | 10 / 100 Hz, 1 KHz |
| Frequency stability: |
Less than 100 Hz after 1 hour warmup @ room temperature
Less than 1 KHz @ -10 to +60°C (14 to 140°F)
|
| Mode: | AM / SSB / CW |
| Channels / memory management: |
1 regular per band segment
RAM storage, relies on external power
|
| Repeater shift / offset: | No |
| Power supply: | 13.8 VDC ±15% |
| Current drain / power consumption: | RX: ? mA
TX: Max 20 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 241*94*275 mm (9.49*3.7*10.83") |
| Weight: | 6.4 Kg (14.11 lb) |
| Other features: | PBT. VOX. NB. SWR-meter. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Quadruple conversion superheterodyne
1st IF: 39.7315 MHz
2nd IF: 9.0115 MHz
3rd IF: 455 KHz
4th IF: 9.0115 MHz
|
| Sensitivity: | AM: 0.6 uV (10 dB S+N/N)
SSB/CW: 0.3 uV (10 dB S+N/N) |
| Selectivity: |
AM
6 KHz (-6 dB)
18 KHz (-60 dB)
SSB/CW
2.4 KHz (-6 dB)
4.8 KHz (-60 dB)
CW-N (Optional)
600 Hz (-6 dB)
1.5 KHz (-60 dB)
|
| Image rejection: | |
| AF output power / speaker: | 2 W at ?% distortion / 8 ohm |
| External speaker connector: | 3.5 mm, 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| Pwr |
|---|
| AM: | 5-25 W |
| SSB (PEP): | 5-100 W |
| CW: | 5-100 W |
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -50 dB |
| Microphone impedance / connector: | 1.3 kohm / 8-pin (Metal screw ring connector) |
| Microphone input level: | 120 mV (Typical) |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 198x-198x (Discontinued) |
| Additional info: | |
| Related documents: | User manual (3.3 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
AH-1
BC-10A
EX-195
EX-202
EX-203
EX-205
FL-30
FL-44
FL-45
HM-10
HP-1
IC-2KL
MB-5
PS-15
SM-5
SP-3
|
3.5-28 MHz mobile antenna
Memory backup AC power supply
Marker unit
LDA unit for automatic band switching
CW audio filter, 150 Hz (-6 dB)
TRV unit for transverter switching
2.3 KHz SSB narrow filter. IF: 9 MHz
2.4 KHz SSB filter. IF: 455 KHz
500 Hz CW narrow filter. IF: 9 MHz
Scanning microphone
Headphones
500 W solid state linear amplifier
Mobile mounting bracket
AC power supply
Electret condenser type desk microphone
External speaker
|
|
