| GENERAL |

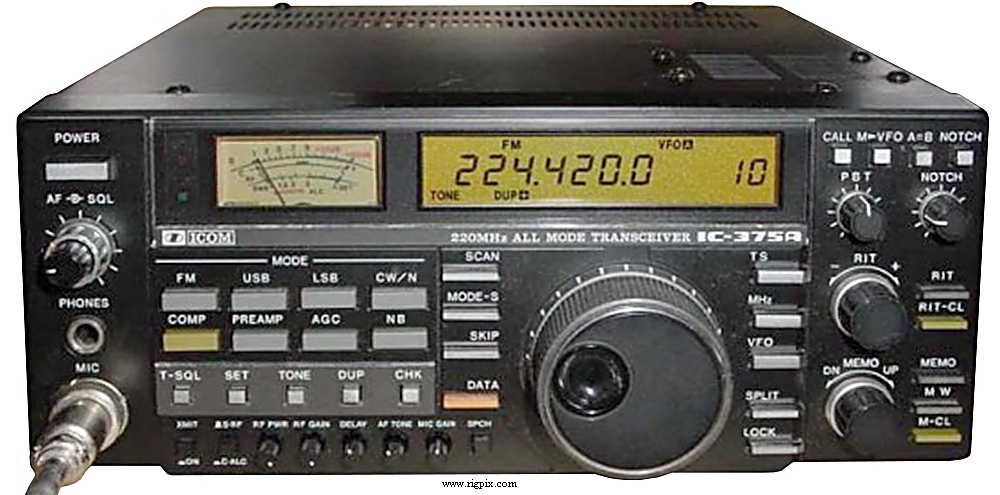

| Type: | Amateur VHF transceiver |
| Frequency range: |
USA
TX: 216-236 MHz
RX: 216-236 MHz
|
| Tuning steps: | 10 Hz, 1 / 2.5 / 5 / 10 KHz |
| Frequency stability: | ±5 ppm @ 0 to 50°C (32 to 122°F) |
| Mode: | FM / SSB / CW |
| Channels / memory management: |
99 regular
1 call
2 scan edge
RAM storage with lithium battery backup
|
| Repeater shift / offset: | ±? |
| Power supply: | Mains: 117 VAC ±10% (3-pin IEC C14 connector)
or 13.8 VDC ±15% |
| Current drain / power consumption: | RX: 1.1 to 1.3 A
TX: 3.5 to 7 A |
| Antenna impedance/connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 241*95*239 mm (9.49*3.74*9.41") |
| Weight: | 6.2 Kg (13.67 lb) |
| Other features: | NB. PBT.CI-V computer control. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Triple conversion superheterodyne (FM)
1st IF: 70.4515 MHz
2nd IF: 9.0115 MHz
3rd IF: 455 KHz
Quadruple conversion superheterodyne (SSB/CW)
1st IF: 70.4515 MHz (SSB), 70.4506 MHz (CW)
2nd IF: 9.0115 MHz (SSB), 9.0106 MHz (CW)
3rd IF: 455 KHz
4th IF: 9.0115 MHz (SSB), 9.0106 MHz (CW)
|
| Sensitivity: |
FM: 0.18 uV (12 dB SINAD)
SSB/CW: 0.1 uV (10 dB S/N)
|
| Selectivity: |
FM
15 KHz (-6 dB)
30 KHz (-60 dB)
SSB/CW
2.3 KHz (-6 dB)
4 KHz (-60 dB)
|
| Image rejection: | |
| AF output power / speaker: | 2 W at 10% distortion / 8 ohm |
| External speaker connector: | 3.5 mm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
2.5-25 W adjustable
|
| Modulation system: |
FM: variable reactance frequency modulation
SSB: Balanced
|
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 600 ohm / 8-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 198x-198x (Discontinued) |
| Additional info: | |
| Related documents: | User manual (1.2 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
AG-30
CR-64
CT-17
FL-32A
MB-5
MB-23
SM-8
SM-10
SP-3
UT-34
UT-36
|
220 MHz masthead preamplifier
High stability crystal unit
CI-V level converter
CW narrow filter (500 Hz)
Mobile mounting bracket
Carrying handle
Desk microphone with dual line output
Desk microphone with compressor & equalizer
External speaker
Tone squelch unit (CTCSS/PL encoder/decoder)
Voice synthesizer unit
|
|
