| GENERAL |

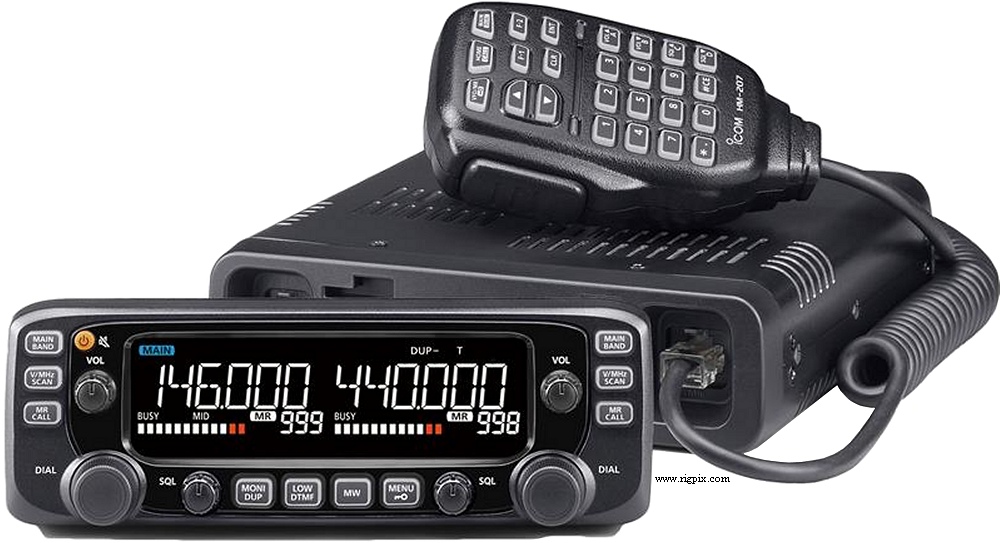

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: |
USA
TX: 144-148 / 430-450 MHz
RX: 118-174 / 375-550 MHz
|
| Tuning steps: | 5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 KHz |
| Frequency stability: | ±2.5 ppm @ -10 to +60°C (14 to 140°F) |
| Mode: | TX: FM / NFM
RX: AM / FM / NFM |
| Channels / memory management: |
1000 regular with alpha tags
2 call
25 scan edge pairs
Non-volatile EEPROM storage
|
| Repeater shift / offset: | Programmable |
| Power supply: | 13.8 VDC ±15% |
| Current drain / power consumption: | RX: 1.2 to 1.8 A
TX: Max 13 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | Body: 150*40*151 mm (5.91*1.57*5.94")
Controller: 150*50*27 mm (5.91*1.97*1.07") |
| Weight: | Body: 1.2 Kg (2.65 lb)
Controller: 140 g (4.94 oz) |
| Other features: | CTCSS/PL and DTCS. Tone scan. Twin RX (V+V, V+U, U+U). |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 38.85 MHz (A band), 46.35 MHz (B band)
2nd IF: 450 KHz
|
| Sensitivity: |
AM (10 dB S/N)
118-137 MHz: 1 uV
FM/NFM (12 dB SINAD)
137-144 MHz: 0.32 uV
144-148 MHz: 0.18 uV
148-160 MHz: 0.32 uV
160-174 MHz: 0.56 uV
375-400 MHz: 0.56 uV
400-430 MHz: 0.32 uV
430-450 MHz: 0.18 uV
450-500 MHz: 0.32 uV
500-550 MHz: 0.56 uV
|
| Squelch sensitivity: | Less than 0.13 uV (Threshold) |
| Noise figure: | |
| Selectivity: | FM: 60 dB
NFM: 55 dB
NB! The manual does not specify bandwidth references |
| Image rejection: | A band: 60 dB (VHF), 55 dB (UHF)
B band: 60 dB (VHF), 60 dB (UHF) |
| AF output power / speaker: | 2 W at 10% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Mid | Low |
|---|
| 2 m: | 50 W | 15 W | 5 W |
| 70 cm: | 50 W | 15 W | 5 W |
|
| Modulation system: | Variable reactance frequency modulation |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -60 dBc |
| Microphone impedance / connector: | 600 ohm / 8-pin (Modular) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 2024-202x |
| Additional info: | |
| Related documents: |
User manual (6.8 MB)
Exmenu and CI-V info (1.6 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
CS-2730
HM-154
HM-207
HM-209
HM-232
HM-249
MBA-4
MBA-5
MBF-1
MBF-4
OPC-440
OPC-474
OPC-478UC-1
OPC-474UD
OPC-589
OPC-647
OPC-837
OPC-1156
SP-30
SP-35
SP-35L
UT-133A
VS-3
|
PC programming software
Hand microphone
Remote control microphone
Active noise cancelling microphone
Hand microphone
Hand-free microphone
Controller/body integration bracket
Controller bracket and magnets
Mounting base
Mobile bracket
Microphone extension cable, 5 m
Cloning cable
USB cloning cable kit
Cloning cable
Modular to 8-pin microphone adapter
Microphone extension cable
Controller cable. 3.5 m (11.4 ft)
Separation cable, 3.5 m
External speaker. 2 m (9.1 ft) cable
External speaker. 2 m (9.1 ft) cable
External speaker. 6 m (19.7 ft) cable
Bluetooth unit
Bluetooth headset with PTT and up/down switch
|
|
