| GENERAL |

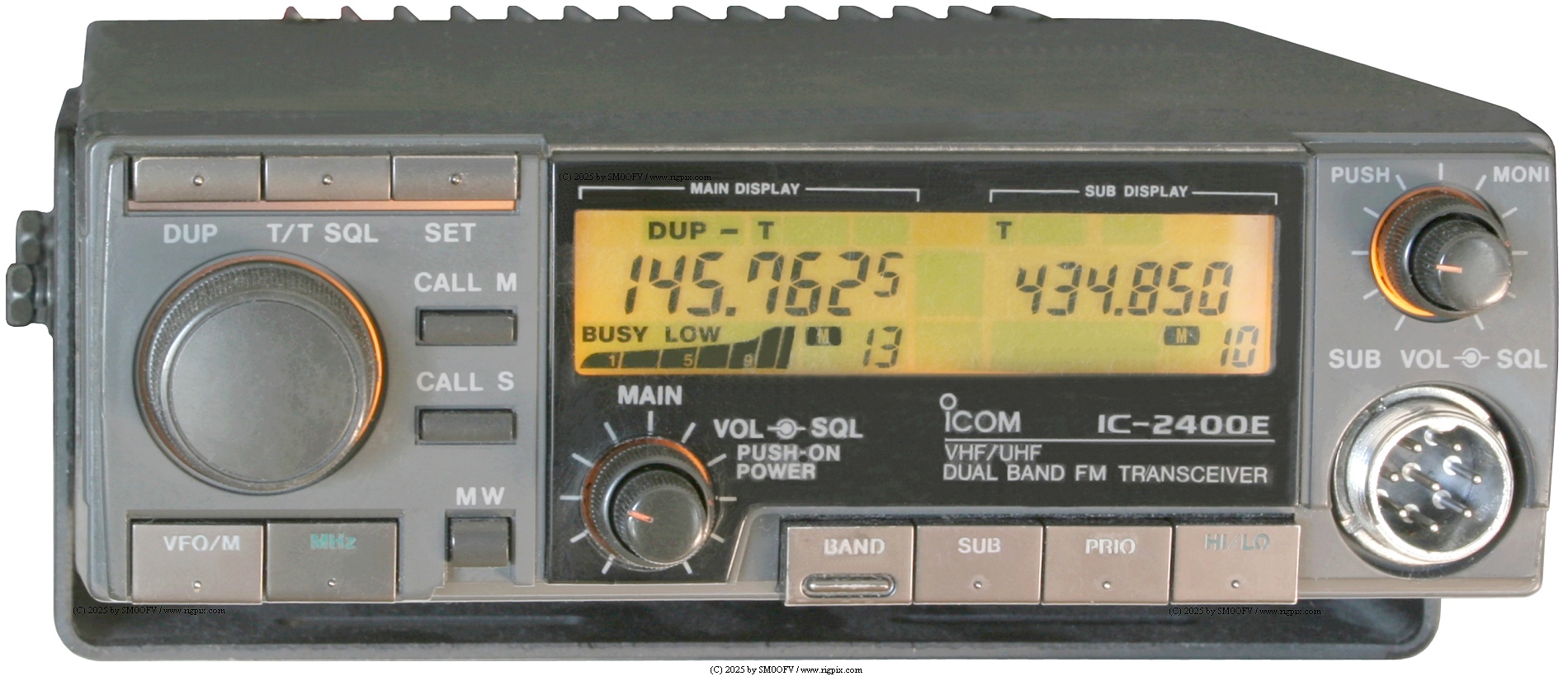

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: |
Europe
TX: 144-146 / 430-440 MHz
RX: 138-174 / 430-450 MHz
|
| Tuning steps: | 12.5 / 25 KHz (5 KHz optional), 1 MHz |
| Frequency stability: | ±? ppm @ -10 to +60°C (14 to 140°F) |
| Mode: | FM |
| Channels / memory management: |
40 regular (20 per band)
2 call (1 per band)
RAM storage with lithium battery backup
|
| Repeater shift / offset: | ±0-10 MHz in 12.5 KHz steps (5 KHz optional) |
| Power supply: | 13.8 VDC ±15% |
| Current drain / power consumption: | RX: 1 to 1.4 A
TX: 4.5 to 10.5 A |

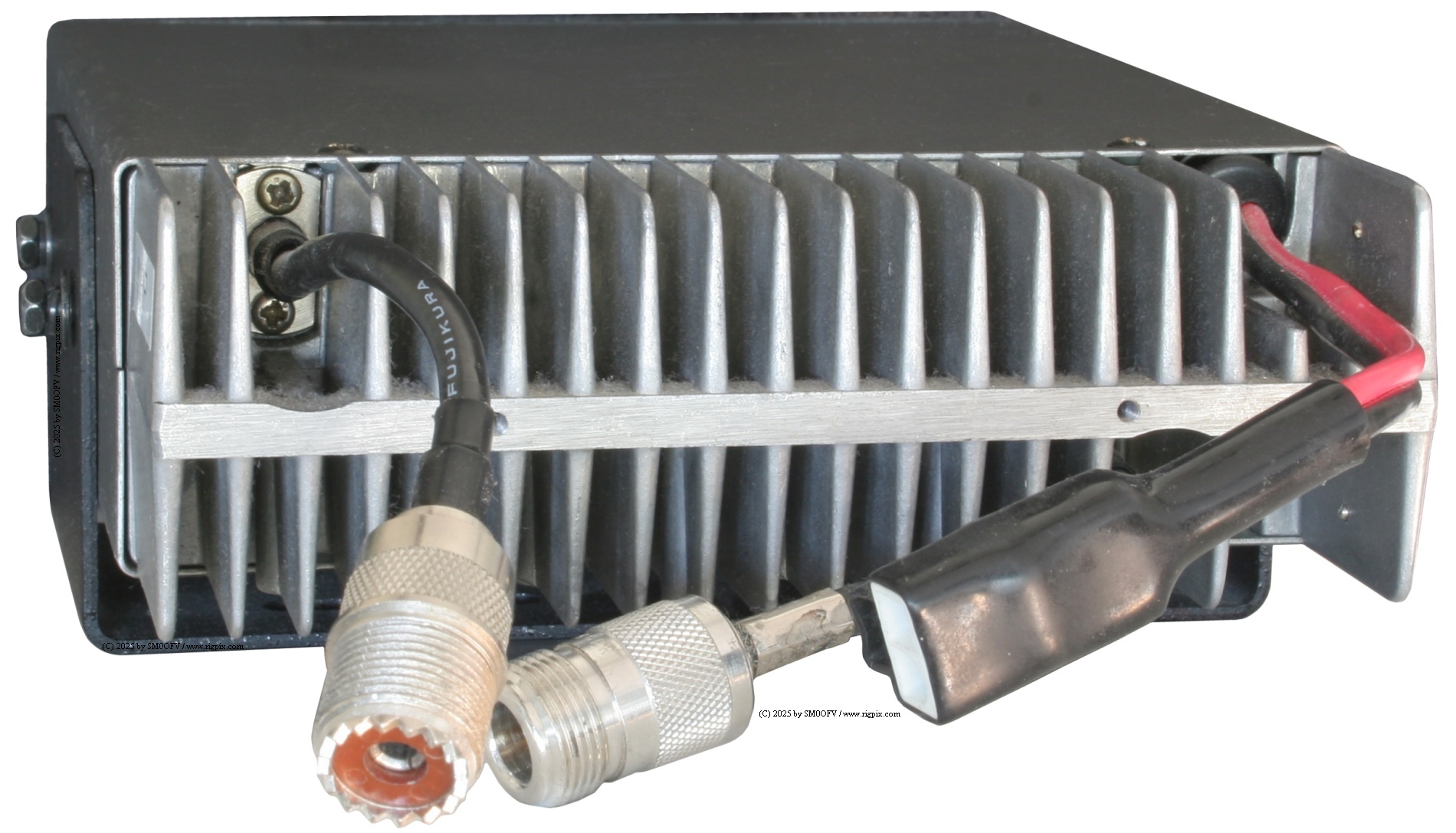

| Antenna impedance / connector: | 50 ohm / One SO-239 and one N-jack (On pigtails) |
| Dimensions (W*H*D): | 150*50*195 mm (5.9*2*7.7") |
| Weight: | 1.7 Kg (3.7 lb) |
| Other features: | CTCSS/PL encoder. Backlit buttons. Twin RX. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 17.2 MHz (VHF), 30.875 MHz (UHF)
2nd IF: 455 KHz
|
| Sensitivity: | 0.18 uV (12 dB SINAD) |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 2.4 W at 10% distortion / 8 ohm |
| External speaker connector: | 3.5 mm, 4-8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Low |
|---|
| 2 m: | 45 W | 5 W |
| 70 cm: | 35 W | 5 W |
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 600 ohm / 8-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1989-199x (Discontinued) |
| Additional info: | New price 1989 in Sweden: SEK 7275:- |
| Related documents: |
User manual (4.9 MB)
Service manual (26 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
HM-12
HM-14
HM-15
HS-15
HS-15SB
IC-PS30
OPC-044B
SM-8
SP-7
SP-8
SP-10
UT-40
|
Hand microphone
DTMF microphone
Hand microphone with 1750 Hz tone call
Flexible mobile microphone
Switchbox
Power supply, 13.8 VDC, 25 A
DC power cable
Desk microphone
External speaker
External speaker
External speaker
CTCSS/PL Tone squelch unit
|
|
