| GENERAL |
| Type: | Amateur VHF transceiver |
| Frequency range: |
Europe
TX: 144-146 MHz
RX: 136-174 MHz
USA
TX: 144-148 MHz
RX: 136-174 MHz
|
| Tuning steps: | 5 / 10 / 12.5 / 15 / 20 / 25 KHz, 1 MHz |
| Frequency stability: | Max ? ppm |
| Mode: | FM |
| Channels / memory management: |
20 regular
2 scan edge
1 call
RAM storage with lithium battery backup
|
| Repeater shift / offset: | ±0 to 10 MHz in 25 KHz steps |
| Power supply: | 13.8 VDC ±15% |
| Current drain / power consumption: | RX: 500-800 mA
TX: 4-10.5 A |

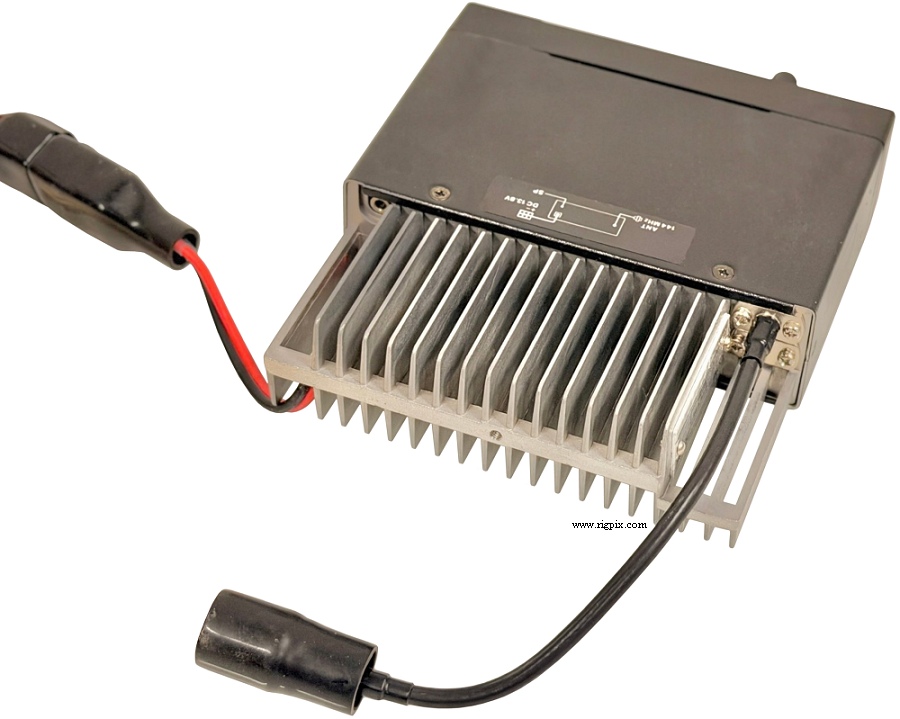

| Antenna impedance / connector: | 50 ohm / SO-239 (On pigtail) |
| Dimensions (W*H*D): | 140*40*155 mm (5.5*1.6*6.1") |
| Weight: | 1 Kg (2.2 lb) |
| Other features: |
CTCSS/PL encoder (USA version only, optional on other versions)
RF attenuator. AF tone hi/lo.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 17.2 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.16 uV (12 dB SINAD) |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 2.4 W at 10% distortion / 8 ohm |
| External speaker connector: | 3.5 mm, 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Low 3 | Low 2 | Low 1 |
|---|
| 2 m: | 50 W | 25 W | 10 W | 5 W |
|
| Modulation system: | Variable reactance |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 600 ohm / 8-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1990-199x (Discontinued) |
| Additional info: |
PLL IC: PLL2001
New price 1990 in Sweden: SEK 3800:-
|
| Related documents: | User manual (3.3 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
HM-56
HM-58
HM-59
HS-15
HS-15SB
IC-PS30
MB-34
PS-45
SM-6
SP-4
SP-7
SP-10
SP-12
UT-50
UT-51
UT-55
|
Hand microphone with 14 DTMF memories for auto dialing
Hand microphone
Hand microphone with 1750 Hz tone call
Flexible mobile microphone
Switchbox, for use with HS-15
AC power supply, 13.8 VDC, max 25 A
Joint plates, for stacking IC-229/IC-449 series transceivers
AC power supply, 13.8 VDC, max 8 A
Desktop microphone with up/down switches and 2*line output
External speaker, 3 W, 4 ohms
External speaker, 5 W, 8 ohms
External speaker, 5 W, 4 ohms
External speaker, slim, 3 W, 8 ohms
Tone squelch unit
Tone encoder unit
DTMF encoder/decoder unit
|
|
