Hammarlund HQ-120X

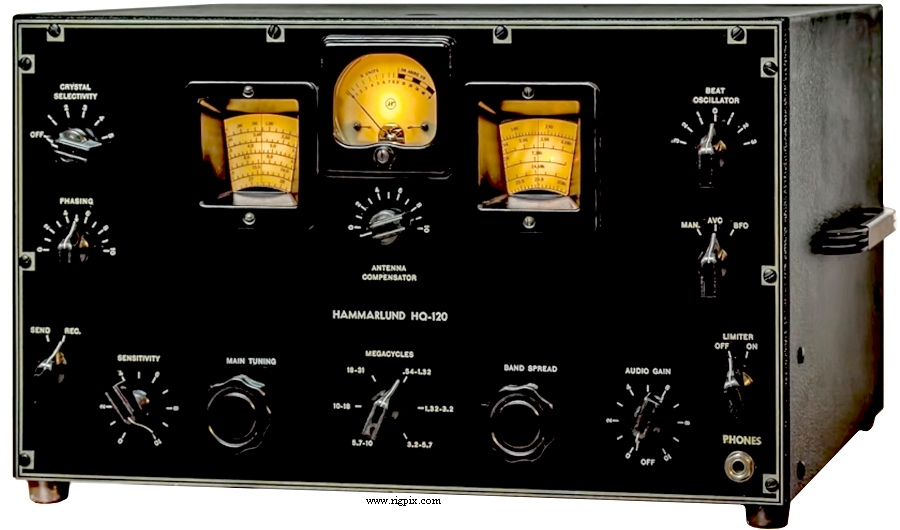

A picture of Hammarlund HQ-120X

SPECIFICATIONS

GENERAL
Type:HF receiver
Frequency range: 0.54-31 MHz in six bands:
0.54-1.32 MHz
1.32-3.2 MHz
3.2-5.7 MHz
5.7-10 MHz
10-18 MHz
18-31 MHz
Tuning steps:Continuous
Frequency stability:? ppm
Mode:AM/CW
Channels/memory management:No
Power supply:Mains: 117 VAC
Current drain/power consumption:? W
Antenna impedance/connector:400 ohm / Screw terminals
Dimensions (W*H*D):511*279*343 mm (20.12*11*13.5")
Weight:21.3 Kg (47 lbs)
Other features:Band spread on ham bands.




RECEIVER SECTION
Receiver system:Single conversion superheterodyne
IF: 455 KHz
Sensitivity:
Selectivity:
Image rejection:
AF output power/speaker:? W at ?% distortion / ? ohm
External speaker connector:




MISCELLANEOUS
Manufactured:USA, 1938-1944 (Discontinued)
Additional info:12 tubes
Related documents:
Modifications:
Reviews:
Options/Accessories:
- -
