| GENERAL |
| Type: | GMRS transceiver |
| Frequency range: |
TX: 462 / 467 MHz
RX: 161.650-163.275 / 462 / 467 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | ±? ppm |
| Mode: | NFM |
| Channels / memory management: |
15 GMRS simplex
10 NOAA weather channels
Scanning
|
| Repeater capable: | No |

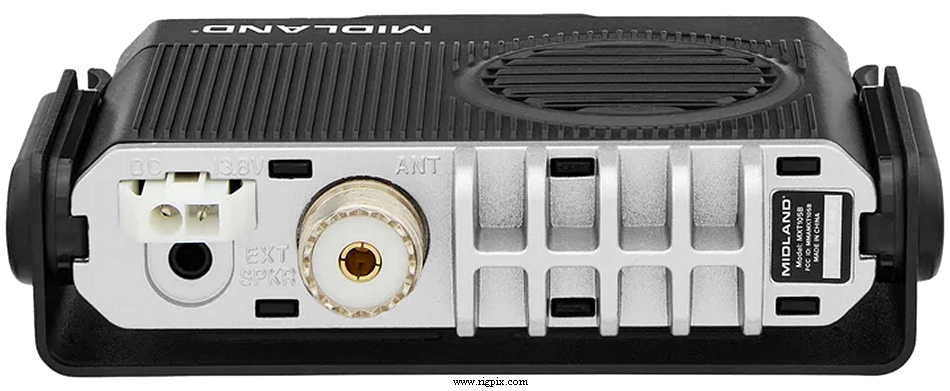

| Power supply: | 13.8 VDC (Male 2-pin jack) |
| Current drain / power consumption: | RX: ? mA
TX: Max ? mA |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 102*19*83 mm (4*0.75*3.25") |
| Weight: | ? g (? oz) |
| Other features: |
CTCSS/PL and DCS. NOAA weather alert. Roger beep.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
?
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±2.5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 8-pin (RJ45 modular jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 202x-202x |
| Additional info: |
New price, april 2026 in the US: $142.99 (with small magmount antenna)
|
| Related documents: | User manual (1.8 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
MXTA25
MXTA26
|
3 dB ghost antenna
6 dB whip antenna
|
|
