York CBS-869

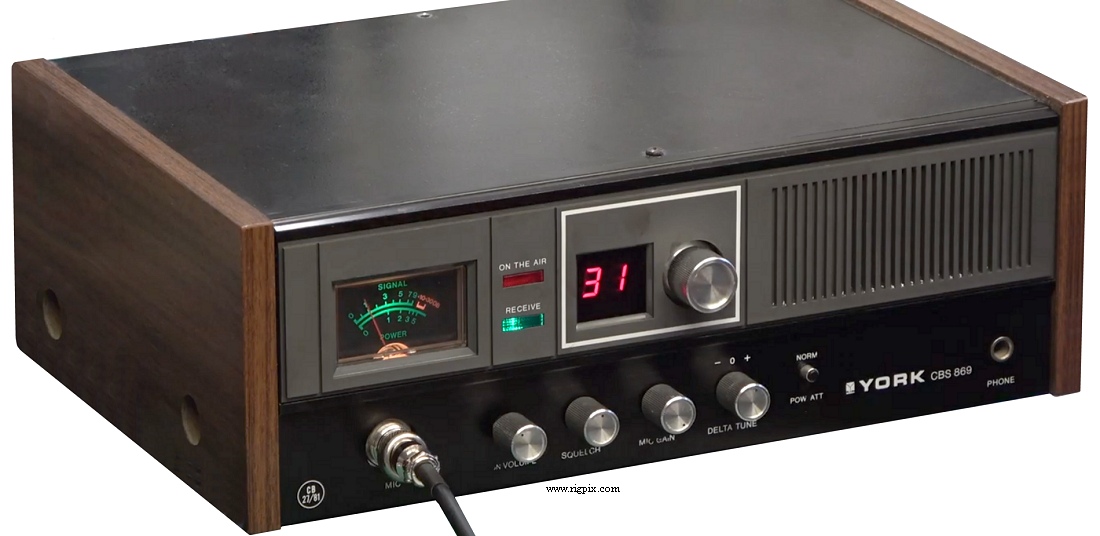

A picture of York CBS-869

SPECIFICATIONS

GENERAL
Type:Citizen band transceiver
Frequency range:27.60125-27.99125 MHz
Channels / tuning steps:40 (UK CB 27/81)
Mode:FM
Frequency control:PLL
Frequency stability:?%
Clarifier or Delta tune:? KHz
Power supply:Mains: 240 VAC (Fixed power cord)
or 13.2 VDC (2-pin connector)
Current drain / power consumption:RX: ? A @ 13.2 VDC
TX: ? A @ 13.2 VDC
Antenna impedance / connector:50 ohm / SO-239
Dimensions (W*H*D):? mm (?")
Weight:? Kg (? lb)
Other features:PA.




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? W at ?% distortion / ? ohm
External speaker connector:3.5 mm




TRANSMITTER SECTION
RF output power:Hi: 4 W (Norm)
Lo: 400 mW (Pow. att)
Modulation system:
FM deviation (Factory set):? KHz
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / 4-pin (Metal locking ring connector)
Microphone input level:? mV




MISCELLANEOUS
Manufactured:Japan, 198x-198x (Discontinued)
Main PCB:PTBM134AOX by Cybernet Electronics Corporation
Sub PCBs:
Additional info:
Related documents:
Sams Photofact #:None
Modifications and fixes:
Reviews:
Options / Accessories:
- -
A rear picture of York CBS-869
