| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.405 MHz |
| Channels / tuning steps: | 40 |
| Mode: | AM |
| Frequency control: | PLL (LC7131) |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | No |

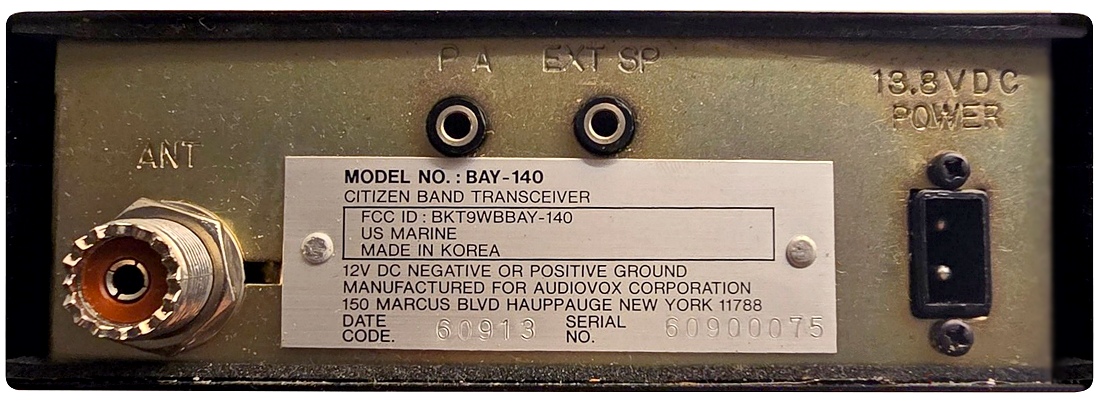

| Power supply: | 13.8 VDC (Male 2-pin jack) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 146*50*183 mm (5.75*1.97*7.2") |
| Weight: | 1.19 Kg (2.62 lb), with mobile bracket |
| Other features: | PA. Tone hi-cut |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz - Ceramic filter: Murata CFU455H
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | 6 KHz (-6 dB)
18 KHz (-40 dB) |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | South Korea (By Yung Tai Electronics Ind.Co.Ltd.), 1986-1987 (Discontinued) |
| Main PCB: |
CBP-006AM-2
Single sided with through-hole components
|
| Sub PCBs: |
CBP-? - LED channel display board
CBP-? - Channel selector board
|
| Additional info: |
This is a rare CB radio with a cool name.
|
| Related documents: |
PLL: LC7131
RF final: 2SC2078
|
| Market(s) / Approval(s): |
USA
FCC ID: BKT9WBBAY-140
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
