| GENERAL |

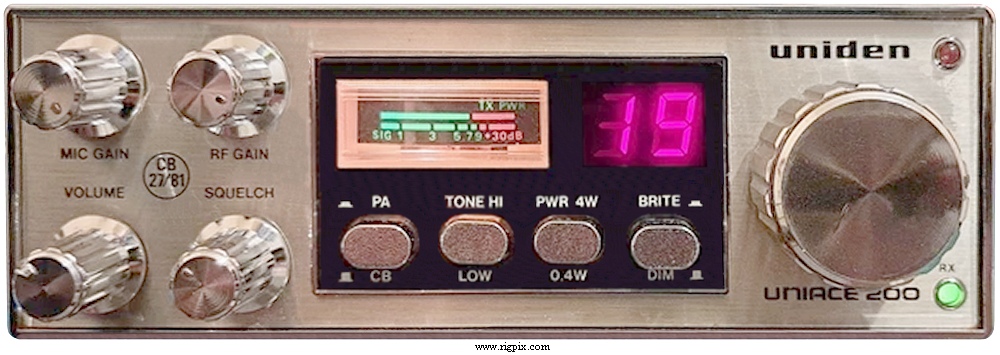

| Type: | Citizen band transceiver |
| Frequency range: | 27.60125-27.99125 MHz |
| Channels / tuning steps: | 40 (UK CB 27/81) |
| Mode: | FM |
| Frequency control: | PLL (TC9119P) |
| Frequency stability: | ±0.002% (No temperature reference) |
| Clarifier or Delta tune: | No |
| Power supply: | 13.2 VDC |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 160*55*217 mm (6.3*2.16*8.54") |
| Weight: | ? Kg (? lb) |
| Other features: | PA. Tone hi-cut. Dimmer. RF gain. Mic gain. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.7 uV (20 dB S/N) |
| Squelch sensitivity: | |
| Selectivity: | 6 KHz (-6 dB)
10 KHz (-60 dB) |
| Image rejection: | 70 dB |
| AF output power / speaker: | 1.8 W at 10% distortion / 16 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: 4 W
Low: 400 mW
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±? KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | 600 ohm / 4-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Hong Kong, 1981-198x (Discontinued) |
| Main PCB: |
PA-039AA by Uniden
Single sided with through-hole components
|
| Sub PCBs: | |
| Additional info: | |
| Related documents: |
FM-IF: uPC1028H
AF amplifier: MB3712
RF driver: 2SC2028
RF final: 2SC2029
|
| Known markets and approvals: |
United Kingdom
CB 27/81
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
