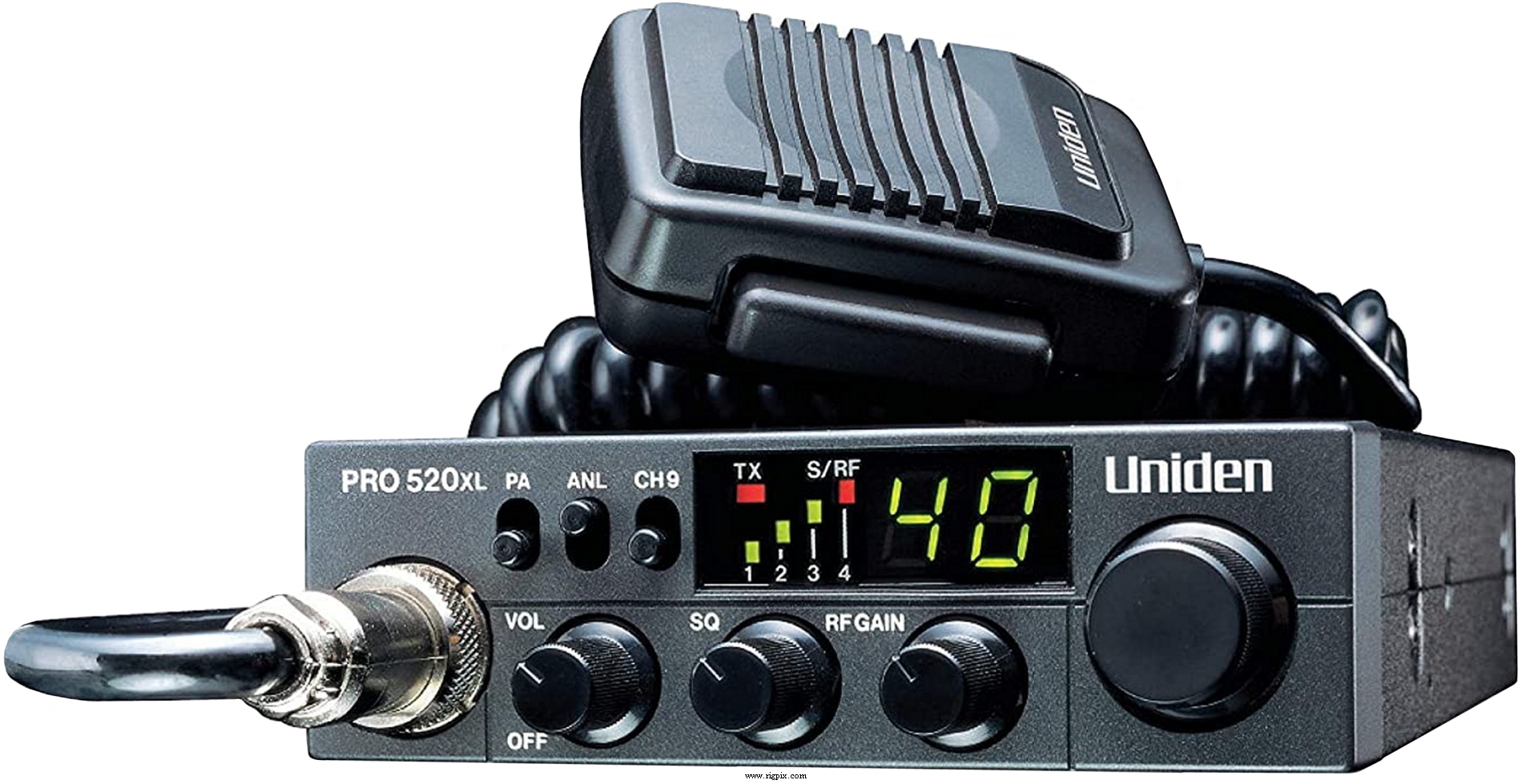

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.405 MHz |
| Channels / tuning steps: | 40 |
| Mode: | AM |
| Frequency control: | PLL (SM5124A) |
| Frequency stability: | ±0.005% @ -30 to +50°C (-22 to +122°F) |
| Clarifier or Delta tune: | No |
| Power supply: | 13.8 VDC |
| Current drain / power consumption: | RX: ? mA
TX: Max 1.7 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 114*35*172 mm (4.5*1.38*6.75") |
| Weight: | 800 g (1.76 lb) |
| Other features: | PA. ANL. Channel 9 switch. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 450 KHz - Ceramic filter: Murata 50HT
|
| Sensitivity: | 0.5 uV (10 dB S+N/N) |
| Squelch sensitivity: | <1 uV (Treshold) |
| Selectivity: | 7 KHz (-6 dB)
10 KHz (-70 dB) |
| Image rejection: | 80 dB |
| AF output power / speaker: | 4 W at 10% distortion / 16 ohm |
| External speaker connector: | 3.5 mm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | Class B amplitude modulation |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Philippines, China and Vietnam, 1987-202x |
| Main PCB: |
Early: PA-375AB
Later: PA-401AA
Latest: ?
|
| Sub PCBs: | |
| Additional info: |
New price 2000 in the US: $ 59.95
New price 2020 in the US: $ 59.99
New price, july 2024 in the US: $ 79.99
|
| Related documents: |
User manual (976 KB)
PLL: SM5124A
RF final: IRF520 (Latest version only)
|
| Market / Approval: |
USA
FCC ID: AMW3K2-317A (Philippines)
FCC ID: AMWUT383 (China)
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
