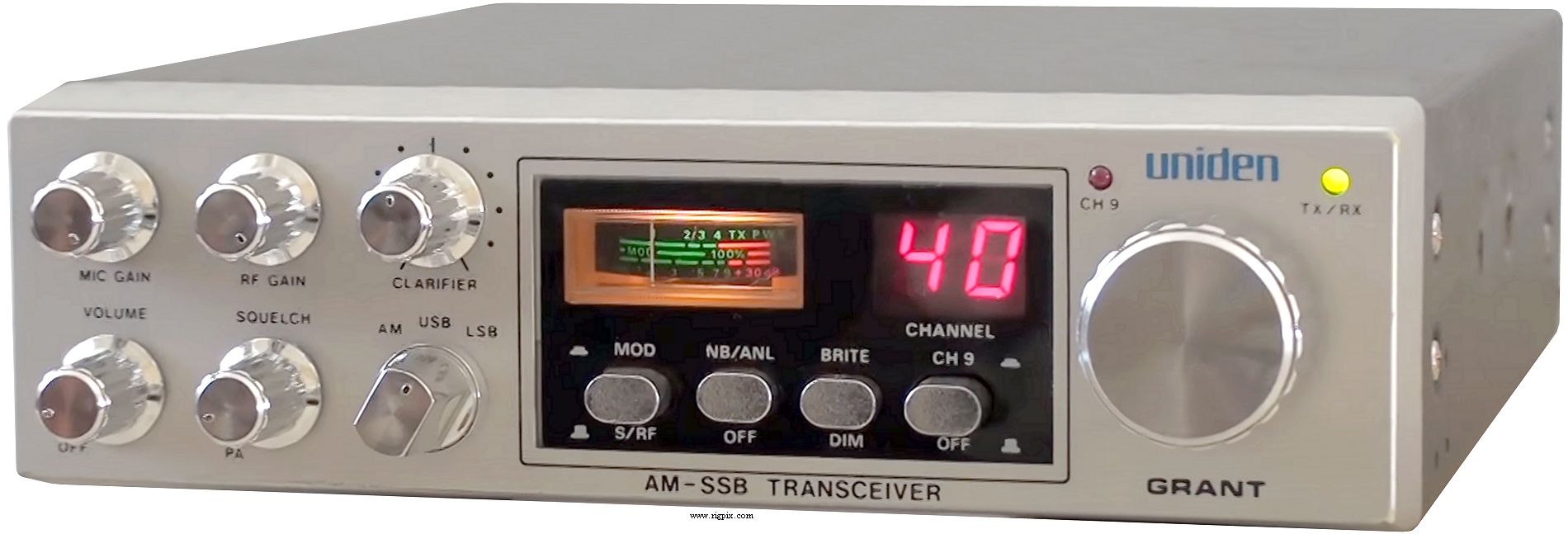

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: |
USA
26.965-27.405 MHz
Old New Zealand bandplan
26.330-26.770 MHz
|
| Channels / tuning steps: | 40 |
| Mode: | AM / SSB |
| Frequency control: | PLL (MB8719) |
| Frequency stability: | ±0.001% @ -20 to +50°C (-4 to +122°F) |
| Clarifier or Delta tune: | ±1.25 KHz |
| Power supply: | 11.7-15.9 VDC (Male 3-pin jack) |
| Current drain / power consumption: | RX: 0.5-1 A
TX: Max 3 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 200*60*235 mm (7.88*2.38*9.25") |
| Weight: | 2.27 Kg (5 lb) |
| Other features: | PA. ANL/NB. Ch 9 button. Dimmer. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne (SSB)
IF: 7.8 MHz
Double conversion superheterodyne (AM)
1st IF: 7.8 MHz
2nd IF: 455 KHz
|
| Sensitivity: |
AM: 0.5 uV (10 dB S+N/N)
SSB: 0.25 uV (10 dB S+N/N)
|
| Squelch sensitivity: | Less than 0.5 uV (Threshold) |
| Selectivity: |
AM: 7.5 KHz (-6 dB)
SSB: 2.2 KHz (-6 dB)
|
| Image rejection: | 60 dB |
| AF output power / speaker: | 3 W at 10% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
AM: 4 W
SSB: 12 W
|
| Modulation system: | High- and low-level Class B amplitude modulation |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 5-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Taiwan (Early) and Philippines (Later), 198x-199x (Discontinued) |
| Main PCB: |
PC-409AC by Uniden
Single sided with through-hole components
|
| Sub PCBs: |
PC-383AB - Channel selector board
and others...
|
| Additional info: | |
| Related documents: |
User manual (3.4 MB)
PLL: MB8719
|
| Market(s) / Approval(s): |
USA, Early
FCC Data: 1005002
USA, Later
FCC ID: AMW3K2-510
New Zealand
Unknown if early or later version
|
| Sams Photofact #: | CB-221 (September 1978), President branded version |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
