| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.405 MHz |
| Channels / tuning steps: | 40 |
| Mode: | FM |
| Frequency control: | PLL (LC7131) |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | No |
| Power supply: | 13.2 VDC (Fixed power cord) |
| Current drain / power consumption: | RX: Max 600 mA
TX: Max 800 mA |

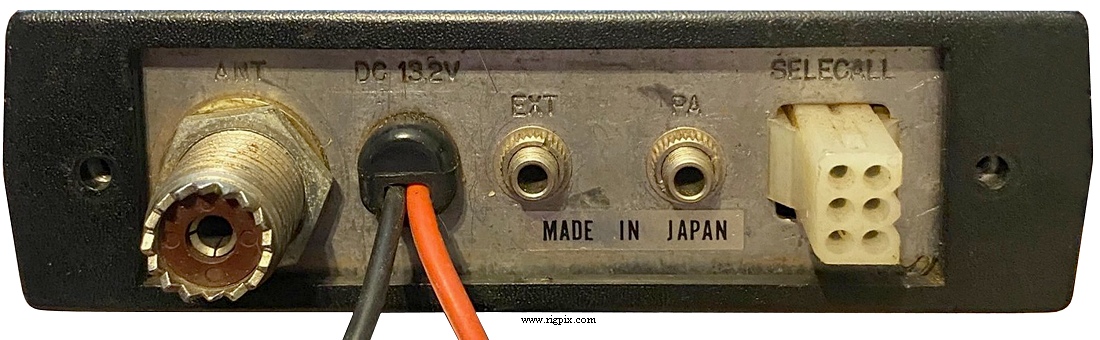

| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 132*41*160 mm (5.2*1.61*6.3") |
| Weight: | 700 g (1.54 lb) |
| Other features: |

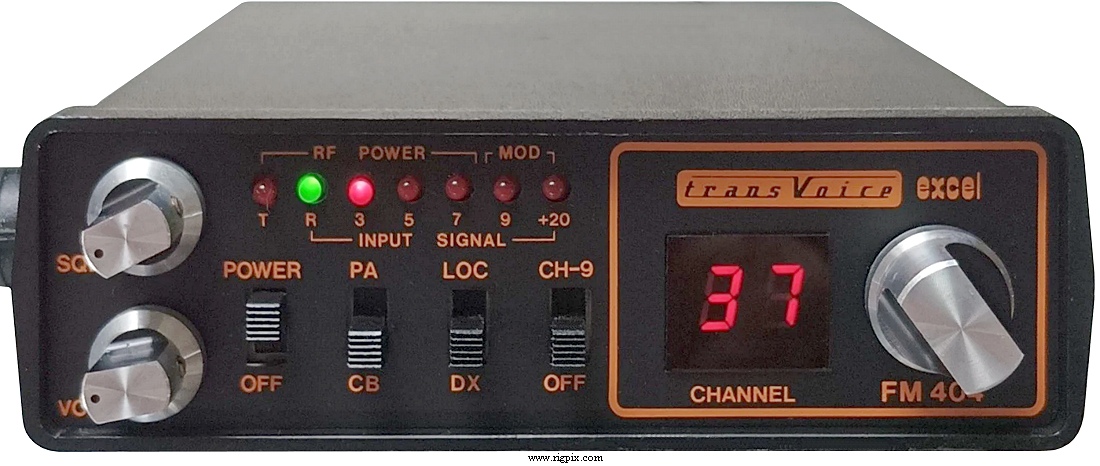

PA. Local/DX switch. Channel 9 switch. Selcall jack.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz - Ceramic filter: Kyocera F455R7A
|
| Sensitivity: | 1 uV (20 dB S/N) |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 2 W at ?% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | |
| Max FM deviation (Factory set): | ±2 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | 600 ohm / 7-pin DIN |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 198x-198x (Discontinued) |
| Main PCB: |
P3-400001 (Designed by Hølund A/S)
|
| Sub PCBs: |
? - PLL board
? - LED channel display board
? - LEDs and switches board
|
| Additional info: |
New price, april 1984 in Norway: NOK 2398.-
|
| Related documents: |
PLL: LC7131
AF amplifier: uPC575C2
RF final: 2SC2166
|
| Known markets and approvals: |
Norway
Teledirektoratet
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
Mobil 100
Mobil SC-D12S
|
External selcall unit
External selcall unit
|
|
