| GENERAL |

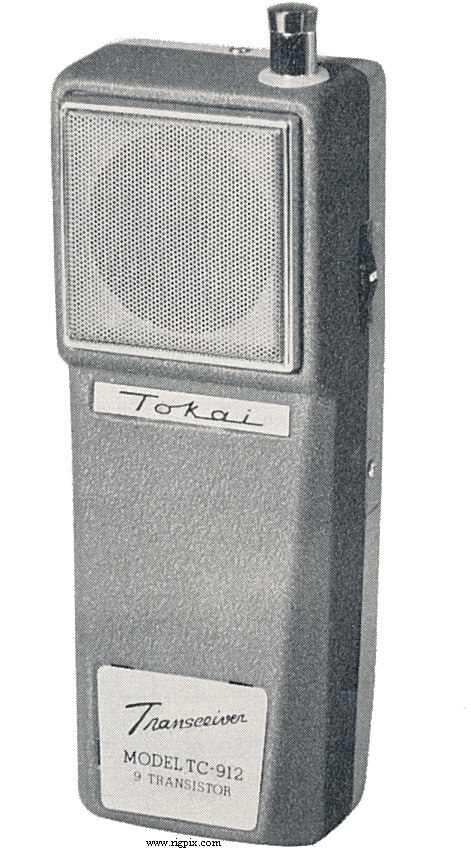

| Type: | Citizen band transceiver |
| Frequency range: | 26-31 MHz |
| Channels / tuning steps: | 1 |
| Mode: | AM |
| Frequency control: | Two XTALs per channel |
| Frequency stability: | ±?% |
| Clarifier or Delta tune: | No |
| Power supply: | 10.5-12 VDC (Seven R6 / AA batteries or NiCd pack) |
| Current drain / power consumption: | RX: 6 mA
TX: 25 mA |
| Antenna impedance / connector: | Built-in telescopic whip |
| Dimensions (W*H*D): | 65*180*50 mm (2.56*7.09*1.97") |
| Weight: | 550 g (1.21 lb), with batteries |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 455 KHz
|
| Sensitivity: | 1 uV (10 dB S/N) |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 150 mW at ?% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | ~120 mW (200 mW input) |
| Modulation system: | |
| Max AM modulation (Factory set): | ? % |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / Internal only |
| Microphone input level: | - |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 196x-196x (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: |
New price, june 1967 in Sweden: SEK 245:- plus VAT
|
| Related documents: |
User manual (2.3 MB, In swedish)
Service manual (3.2 MB, In swedish)
|
| Known markets and approvals: |
Sweden
Kungliga Telestyrelsen
Finland
Post- och Telegrafstyrelsen
Norway
?
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
BE-0.2A
BE-1A
BL
|
AC power supply. 220 VAC
AC power supply and charger. 220 VAC
AC charger. 220 VAC
|
|
