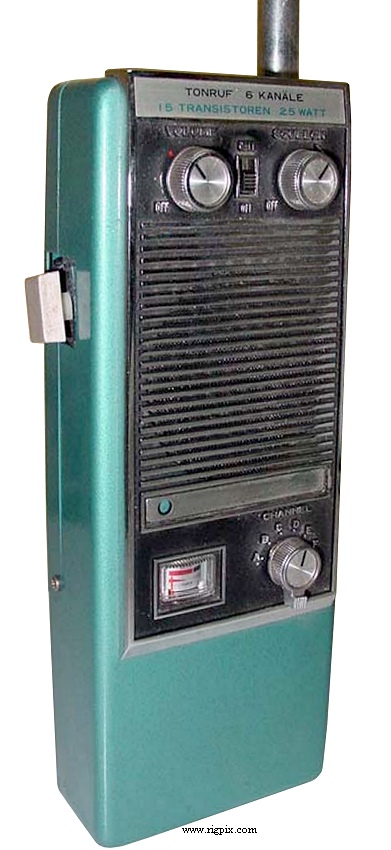

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | 6 |
| Mode: | AM |
| Frequency control: | Two XTALs per channel |
| Frequency stability: | ±?% |
| Clarifier or Delta tune: | No |
| Power supply: | 9.6-12 VDC (Eight R6 / AA alkaline or NiCd batteries)
or 12 VDC external (Male barrel jack) |
| Current drain / power consumption: | RX: 30 mA
TX: Less than 300 mA |
| Antenna impedance / connector: | Fixed telescopic whip
50 ohm / RCA (Phono) |
| Dimensions (W*H*D): | 85*230*50 mm (3.35*9.06*1.97") |
| Weight: | 1.3 Kg (2.87 lb), without batteries |
| Other features: | PA. Battery meter. Tonecall. Charging circuit. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 455 KHz
|
| Sensitivity: | 0.7 uV (10 dB S/N) |
| Squelch sensitivity: | |
| Selectivity: | 40 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 900 mW at ?% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | ~1.5 W (2.5 W input) |
| Modulation system: | |
| Max AM modulation (Factory set): | ?% |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Less than -? dB |
| Microphone impedance / connector: | ? ohm / TS "Minijack" (3.5 mm) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1971-197x (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: | |
| Related documents: | |
| Known markets and approvals: |
West Germany
FTZ Nr. K-120/71
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
