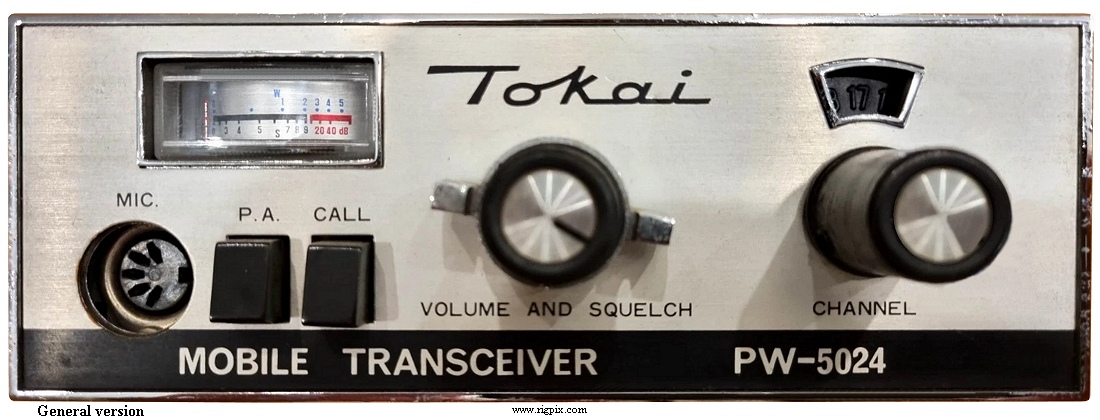

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: |
Sweden: 24 (1-23 + 11A)
General: 23
|
| Mode: | AM |
| Frequency control: | XTAL matrix |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | No |
| Power supply: | 12-14 VDC (Male barrel jack, center positive) |
| Current drain / power consumption: | RX: 250 mA (No squelched)
TX: Max 1.7 A @ 100% modulation |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 166*62*208 mm (6.54*2.448.19") |
| Weight: | 2.45 Kg (5.4 lb) |
| Other features: | PA (Order). Selcall TX (Tonanrop). External selcall jack, |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.5 uV (10 dB S/N) |
| Squelch sensitivity: | |
| Selectivity: | 10 KHz (-50 dB) |
| Image rejection: | 30 dB @ 28 MHz
50 dB @ 48 MHz |
| AF output power / speaker: | 3 W at ?% distortion / ? ohm |
| External speaker connector: | DIN |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | ~3.5 W (5 W input) |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 5-pin DIN (180°) |
| Microphone input level: | ? mV |
|
|
|
|

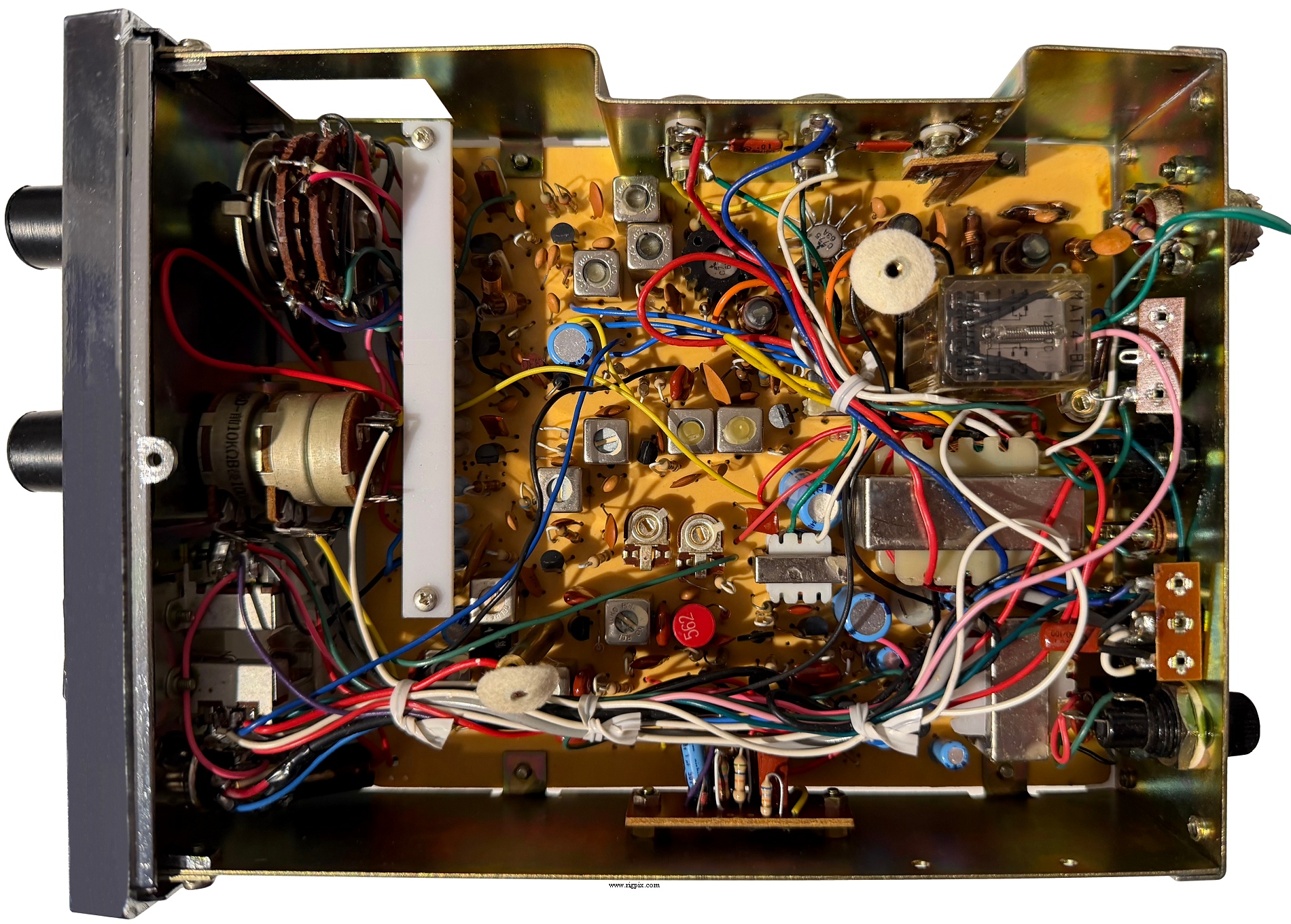

| MISCELLANEOUS |
| Manufactured: | Japan, 197x-197x (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: |
New price 1979 in Sweden: SEK 806:-
New price 1981 in Sweden: SEK 795:-
|
| Related documents: | |
| Known markets and approvals: |
Sweden
Televerket
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | Radio & Television: #6/7 1979 |
| Options / Accessories: |
|
