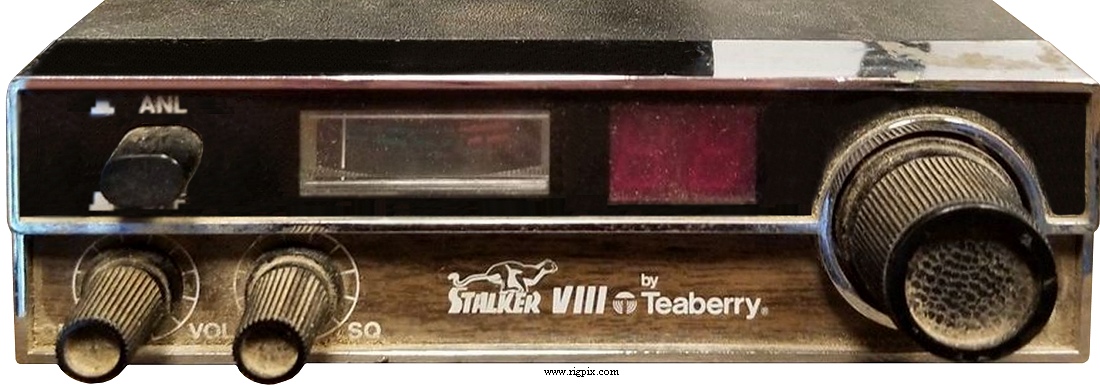

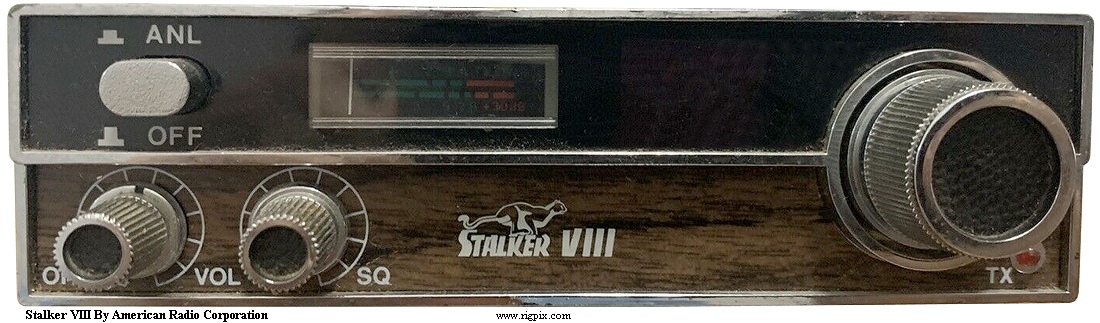

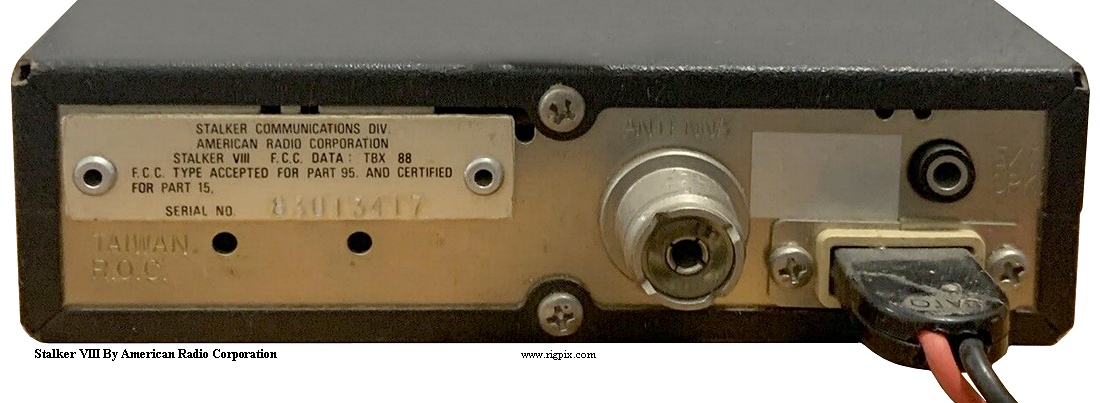

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.405 MHz |
| Channels / tuning steps: | 40 |
| Mode: | AM |
| Frequency control: | PLL |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | No |
| Power supply: | 13.8 VDC (3-pin connector) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 140*38*203 mm (5.5*1.5*8") |
| Weight: | ? Kg (? lb) |
| Other features: | ANL. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
? conversion superheterodyne
|
| Sensitivity: | 0.5 uV (No reference) |
| Selectivity: | 10 KHz (-60 dB) |
| Image rejection: | 70 dB |
| AF output power / speaker: | 4 W at 10% distortion / 8 ohm |
| External speaker connector: | 3.5 mm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | ? ohm / 5-pin DIN (180°) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Taiwan, 19xx-19xx (Discontinued) |
| Main PCB: | PC-437AC by Uniden |
| Sub PCBs: |
PC-438AA - Channel selector board
PC-440 - LED display board
|
| Additional info: | |
| Related documents: |
Service manual (6 MB)
PLL: TC9109P
RF final: 2SC2029
|
| Sams Photofact #: | CB-271 (August 1979) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
