Teaberry (American Radio Corporation) Stalker IV (TBX-84)

A picture of Teaberry (ARC) Stalker IV (TBX-84)

SPECIFICATIONS

GENERAL
Type:Citizen band transceiver
Frequency range:26.965-27.405 MHz
Channels / tuning steps:40
Mode:AM
Frequency control:PLL (TC9109P)
Frequency stability:?%
Clarifier or Delta tune:No
Power supply:13.8 VDC (3-pin connector)
Current drain / power consumption:RX: ? mA
TX: ? A
Antenna impedance / connector:50 ohm / SO-239
Dimensions (W*H*D):140*38*203 mm (5.5*1.5*8")
Weight:? Kg (? lb)
Other features:PA. ANL. Dimmer.




RECEIVER SECTION
Receiver system: ? conversion superheterodyne
Sensitivity:0.5 uV (No reference)
Selectivity:10 KHz (-60 dB)
Image rejection:70 dB
AF output power / speaker:4 W at 10% distortion / 8 ohm
External speaker connector:3.5 mm




TRANSMITTER SECTION
RF output power:4 W
Modulation system:
Max FM deviation (Factory set):No FM
Spurious emissions:Better than -60 dB
Microphone impedance / connector:? ohm / 4-pin (Metal locking ring connector)
Microphone input level:? mV




MISCELLANEOUS
Manufactured:Korea, 197x-198x (Discontinued)
Main PCB:PC-437AC by Uniden
Sub PCBs: PC-438AA - Channel selector board
PC-439AA - ANL & PA pushbutton board
PC-440AA - LED display board
PC-441AA - Microphone jack board
Additional info:
Related documents: Service manual (6 MB)
PLL: TC9109P
RF final: 2SC2029
Sams Photofact #:CB-262 (May 1979)
Modifications and fixes:
Reviews:
Options / Accessories:
- -

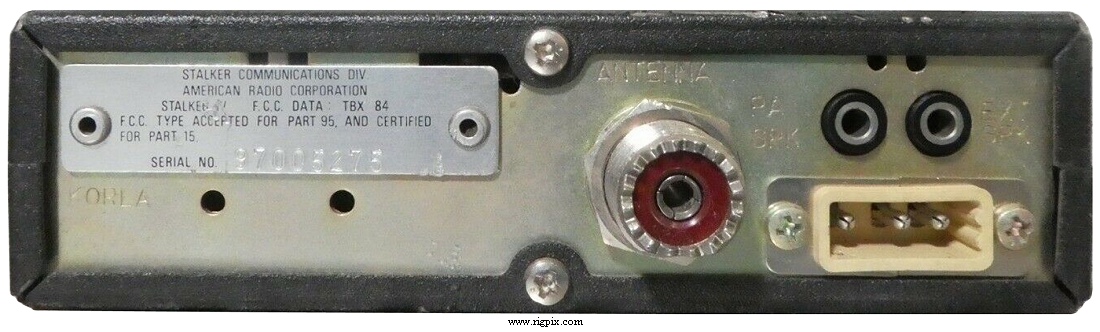

A rear picture of Teaberry (ARC) Stalker IV
