Svera 324 AM/FM

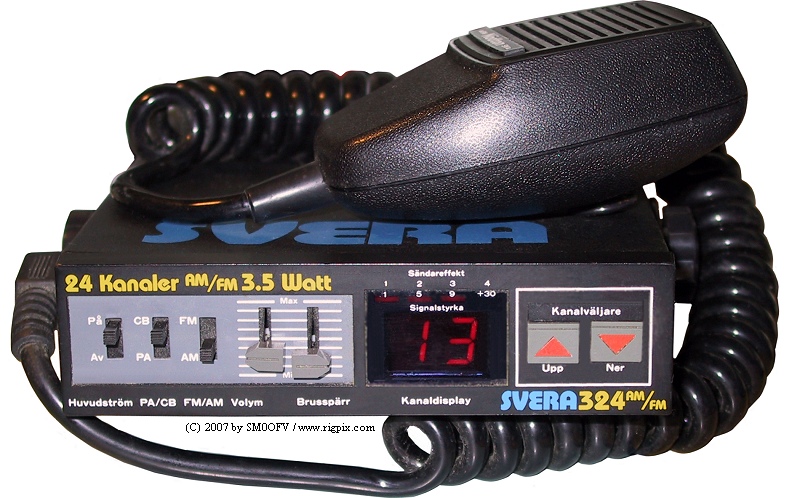

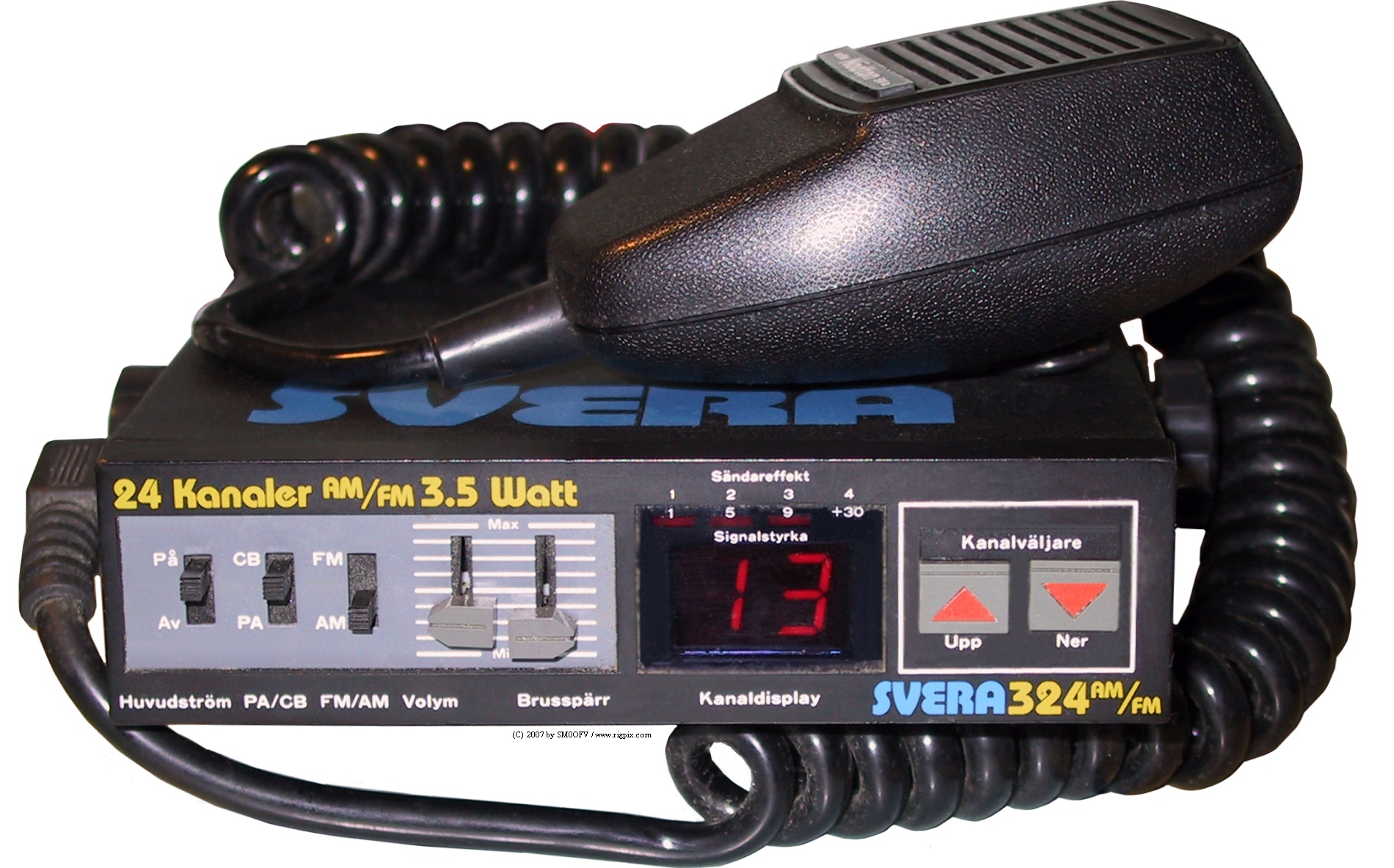

A picture of Svera 324 AM/FM

SPECIFICATIONS

GENERAL
Type:Citizen band transceiver
Frequency range:26.965-27.255 MHz
Channels / tuning steps:24 (1-23 + 11A)
Mode:AM / FM
Frequency control:PLL (C5121)
Frequency stability:0.005%
Clarifier or Delta tune:No
Power supply:13.2 VDC (Fixed power cord)
Current drain / power consumption:RX: ? mA
TX: ? A
Antenna impedance / connector:50 ohm / SO-239
Dimensions (W*H*D):130*33*180 mm (5.12*1.3*7.09")
Weight:1.6 Kg (3.53 lb)
Other features:PA. Emergency tone call (967.5 and 1340 Hz)




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz - Ceramic filter: CFU455HT or LF-H6S 77
Sensitivity: AM: 0.5 uV (10 dB S+N/N)
FM: ? uV (12 dB SINAD)
Selectivity:6 KHz (-6 dB)
Image rejection:60 dB
AF output power / speaker:3 W at ?% distortion / 8 ohm
External speaker connector:3.5 mm




TRANSMITTER SECTION
RF output power:3.5 W (TFS B:93C compliant)
Modulation system:
Max FM deviation (Factory set):±1.5 KHz
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / 5-pin DIN (180°)
Microphone input level:? mV




MISCELLANEOUS
Manufactured:1986-198x (Discontinued)
Main PCB:M404AF21
Sub PCBs:
Additional info: New price 1986 in Sweden: SEK 995:-
New price 1990 in Sweden: SEK 980:-
New price 1991 in Sweden: SEK 980:-
Related documents: PLL: C5121
Sams Photofact #:None
Modifications and fixes:
Reviews:
Options / Accessories:
- -

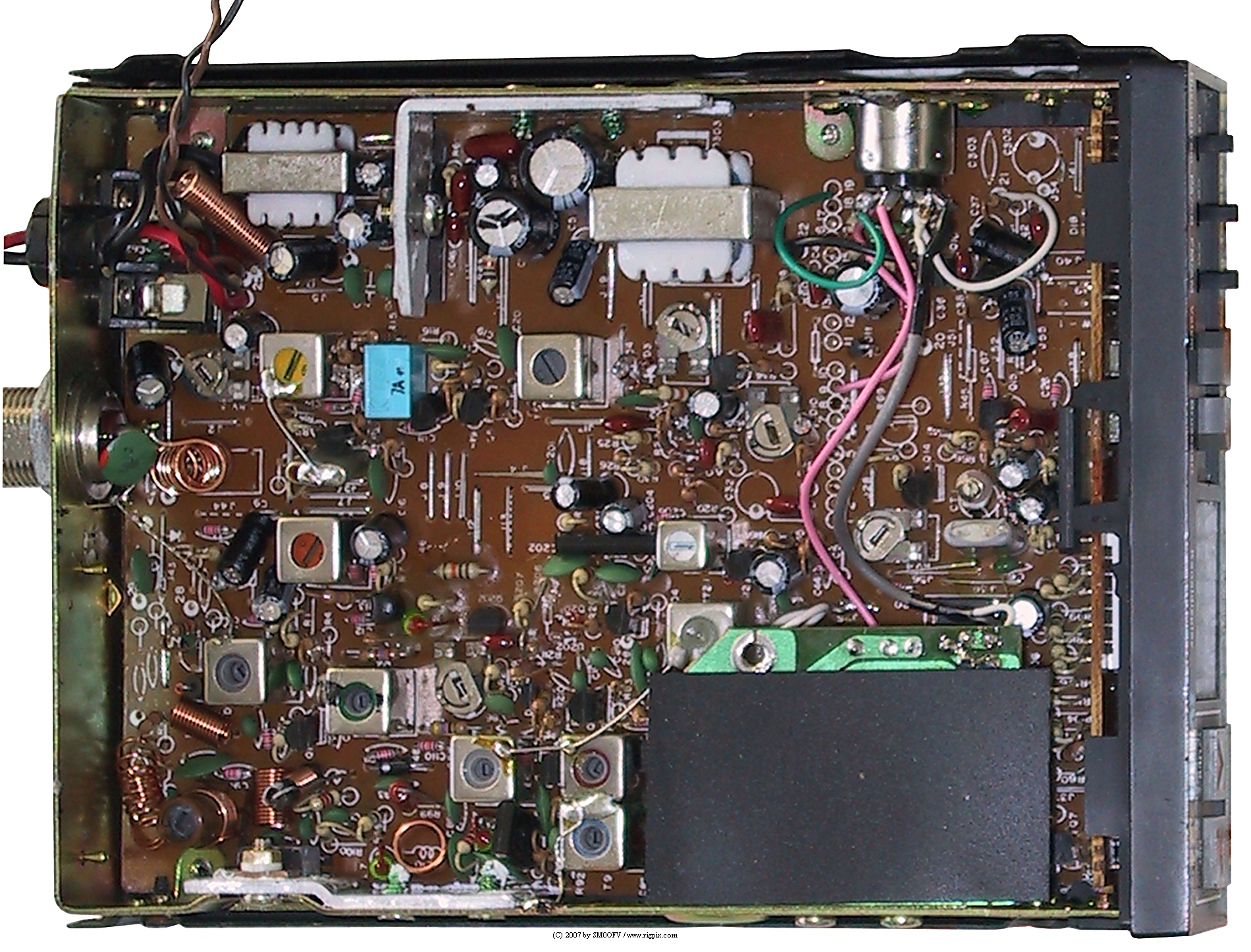

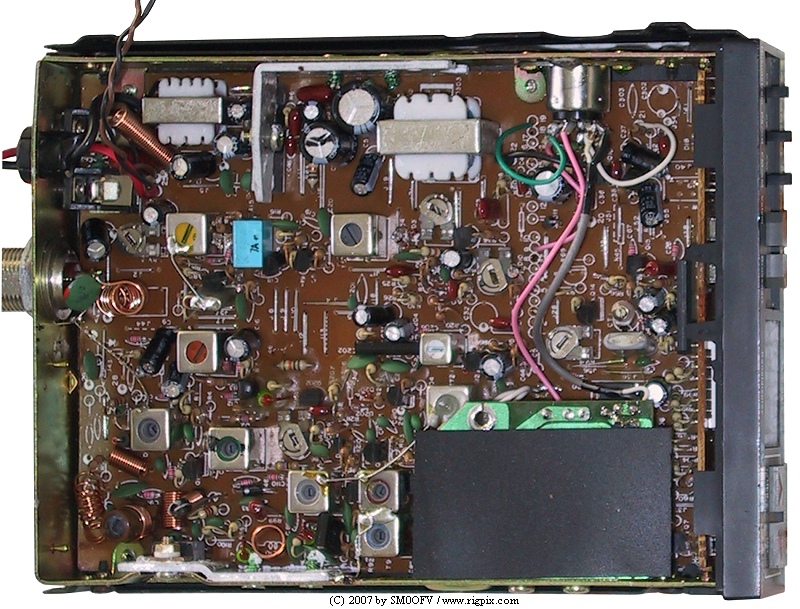

An inside picture of Svera 324

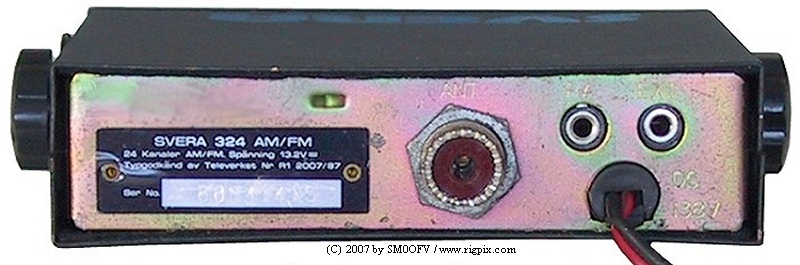

A rear picture of Svera 324
